Quick Specs

  • Size:Kit 3-1/8" & 2-1/16" (Kit 85.7mm & 52.4mm)
  • Type:Kits
  • Range:120 MPH/100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
  • Lighting:Incandescent
  • Instructions: Download PDFDownload PDF

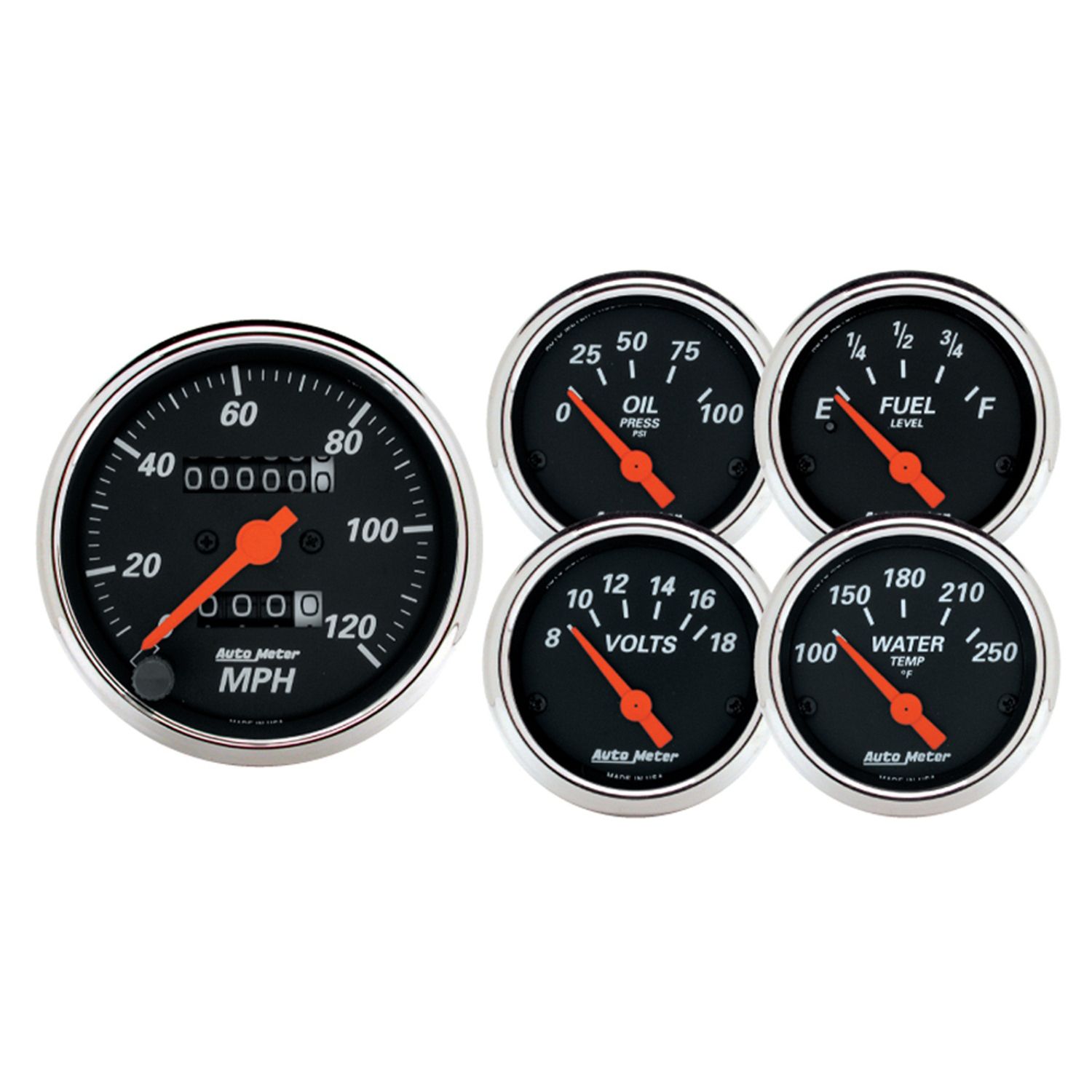

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
  • Speedometer features a traditional rolling drum odometer and a resetable tripmeter
  • Speedometer accepts a 5/8" x 18 thread speedometer cable and is calibrated for 60 MPH at 1,000 cable RPM
  • Domed Lens
Ships With
  • Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258
  • 3/8" NPT and 1/2" NPT adapter fittings
  • Brackets Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 8.37ms
  • bvseo-msg: HTTP status code of 404 was returned;


Does set come with senders?

Asked by: Mr.7e
This kit will come with the fuel level sender, oil pressure sensor, and water temp sensor.
Answered by: Thomas From AutoMeter
Date published: 2023-01-24

Will these work in a stock 1989 VW Vanagon housing

Asked by: davidsbar
The speedometer OD for this kit is 3-3/8” with a hole size of 3-1/8”, and the OD on the gauges are 2-3/16” each with a 2-1/16” hole size. If you would like more information, send an email or call us and speak to a Tech Agent.
Answered by: Sarah from AutoMeter
Date published: 2021-12-03

Hi I was wondering if this 5 set will fit a international scout 800A?

Asked by: James00785
Hello James 00785. This is an universal set and is not vehicle specific.
Answered by: Sarah from AutoMeter
Date published: 2021-08-19

Do you have a matching ammeter?

Asked by: ED-S
Thank you for your inquiry. We do not offer an ammeter in any of our Street Rod lines of instruments.
Answered by: Jim from AutoMeter
Date published: 2020-02-10

Will the 1420 kit work with a 66 Mustang coupe? Are there any modifications I would need to make to the dashboard?

Asked by: Bob Lee
Thank you for your inquiry. The 1420 will not drop into your dash without some modification. Check out Classic Dash for replacement panels populated with Auto Meter gauges:
Answered by: Jim from AutoMeter
Date published: 2020-01-14

Do you know what the thread pattern is on the back of the speedometer model 1420?

Asked by: Redneck98
Thank you for the question. All of our mechanical speedometers, including the model in the 1420 kit, feature a 5/8-18 UNF thread. The actual cable drive is .104 square drive.
Answered by: Matt from AutoMeter
Date published: 2019-08-30

I'm doing an LS engine swap with a 4l60e into a Jeep comanche, which means I will have to replace and build my own cluster. What is the depth of these gauges?

Asked by: jborecky
Thank you for your question. The 2-1/16" gauges are 1-1/2" deep with mounting studs extending an extra 1-1/8" after that. The 3-1/8" Gauge is 1-3/4" deep with mounting studs extending an extra 1" from there.
Answered by: Zach from AutoMeter
Date published: 2019-07-12

what is the ohm rating for the gas gauge sending unit?

Asked by: My65C10
Thank you for your question. The fuel level gauge and fuel level sending unit in this kit are both 240 ohms at empty and 33 ohms at full.
Answered by: Zach from AutoMeter
Date published: 2019-07-12
