5 PC. GAUGE KIT, 3-1/8" & 2-1/16", MECHANICAL SPEEDOMETER, OLD TYME BLACK

$319.89
Shipping in 2 business days
Free Shipping over $99
Hassle Free Returns

Description:

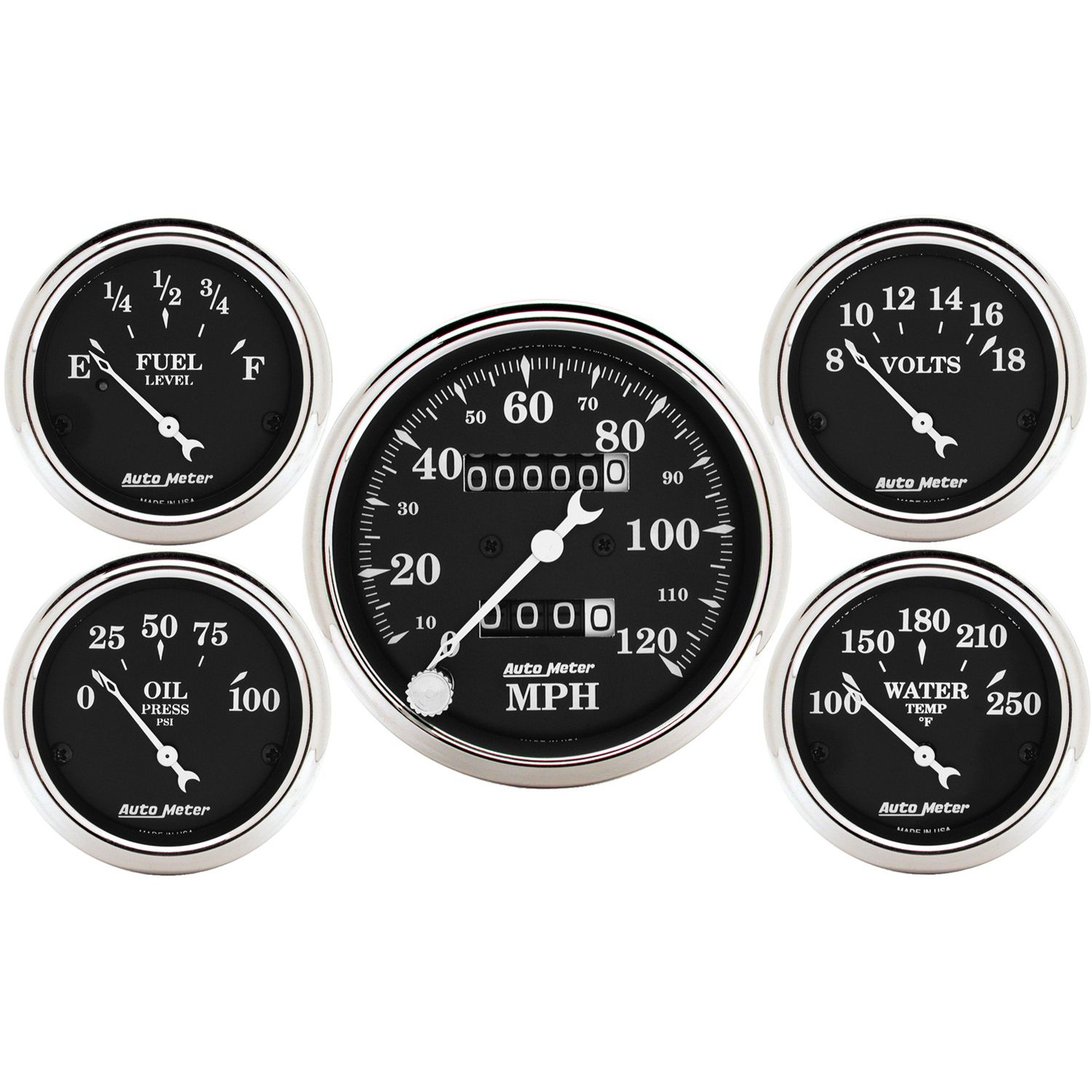

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter.

Quick Specs

  • Size:Kit 3-1/8" & 2-1/16" (Kit 85.7mm & 52.4mm)
  • Type:Kits
  • Range:120 MPH/100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
  • Lightning:Incandescent
  • Instructions: Download PDFDownload PDF
AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
  • Speedometer features a traditional rolling drum odometer and a resetable tripmeter
  • Speedometer accepts a 5/8" x 18 thread speedometer cable and is calibrated for 60 MPH at 1,000 cable RPM
Ships With
  • Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258
  • 3/8" NPT and 1/2" NPT adapter fittings
  • Brackets Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

REVIEWS:

Rated 5 out of 5 by from love 'em I bought my gauges some years ago when AutoMeter offered them with a Ford script...like on their white face Masterpiece. Being old school I like the chalkboard look and I love it every time I turn on the ignition switch. the gauges pop to life and I've never had a single issue and if I did it was my own fault. I studied and studied before wiring them. Perform great. I had Auto Meter in a '78 El Camino and loved those also. I would recommend them.
Date published: 2020-12-19
  • y_2021, m_4, d_10, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_1708, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_autometer-us
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 41.68ms
  • REVIEWS, PRODUCT

QUESTIONS:

I recently purchased a vehicle that has one of your brand speedometers installed in it. I cannot reset the odometer. Can you advise me how to do it or do I need to replace the unit. Thanks

Asked by: Anonymous
Hello! The regular odometer cannot be adjusted and there are actually legal issues involved with doing so. The Trip Odometer can be reset if the speedometer is equipped with one. Mechanical speedometers typically feature a knob that can be twisted to reset. Most electronic speedometers feature a button that is held for several seconds to reset the trip. Some electronic speedometers feature a physical wheel odometer and have no trip odometer whatsoever.
Answered by: Natalia from AutoMeter
Date published: 2020-10-27

are these rear loaded into a 1940 Ford Bob Drake dash panel ?,and does it include the lights, all the sending units, and are they programable ?

Asked by: Bobby77
Thank you for your question. Unfortunately we have no information on our gauges fitting this panel. Please look at https://www.autometer.com/media/dimensions2014.pdf for gauge sizing to assist you with getting the correct gauge size needed for your panel. All the gauges do come with lighting and sending units. These gauges cannot be programmed since they are designed to only work with the sending units provided. If you are needing further assistance please call our tech line at 866-248-6357.
Answered by: Steve from AutoMeter
Date published: 2019-11-27

what is the ohms on your old tyme fuel gauge?

Asked by: Lloyds58
Thank you for your question. This gauge set comes with a fuel level gauge and sending unit that is 240 ohms empty and 33 ohms full.
Answered by: Steve from AutoMeter
Date published: 2019-11-27

looking to put in a 1966 mustang. are the gauges electric? Can i use the factory wiring to hook up the gauges?

Asked by: chicago jones
Thank you for your inquiry. We do not advise using factory wiring for this install. It is best to use all new wires, you might consider our 2198 harness: https://www.autometer.com/gauge-wire-harness-universal-for-tach-speedo-elec-gauges-incl-led-indicators.html
Answered by: Jim from AutoMeter
Date published: 2019-11-27

Hi Do you have them for europ, and do you have spidometers for boats. Hav an old Volvo Penta TMD 70B

Asked by: Amason
Thank you for your question. We do offer a selection of metric gauges. We also offer speedometers in our marine all of our marine series. If you need further help choosing a gauges, you can contact our support team at 815.895.8141 or over email via https://www.autometer.com/contacts
Answered by: Zach from AutoMeter
Date published: 2019-11-27

I installed the fuel gauge which I know is a 73-10 ohm for my 1981 Ford Fairmont. The gauge that came with the kit is a 240-33. And is currently working as Full being 1/2 and 1/2 being empty. How can I fix this?

Asked by: Nick89
Hi Nick, thank you so much for contacting us. You'll either need to use the sending unit that was included with the gauge kit or send us the gauge to have it recalibrated to read 73-10 ohms. Here is a link to our service form: http://www.autometer.com/media/Service_Form.pdf Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2019-11-27

Is a Tach available

Asked by: Bubba bull
