Quick Specs

  • Size:Kit 3-3/8" & 2-1/16" (Kit 85.7mm & 52.4mm)
  • Type:Kits
  • Range:120 MPH/100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
  • Lighting:LED
  • Instructions: Download PDFDownload PDF

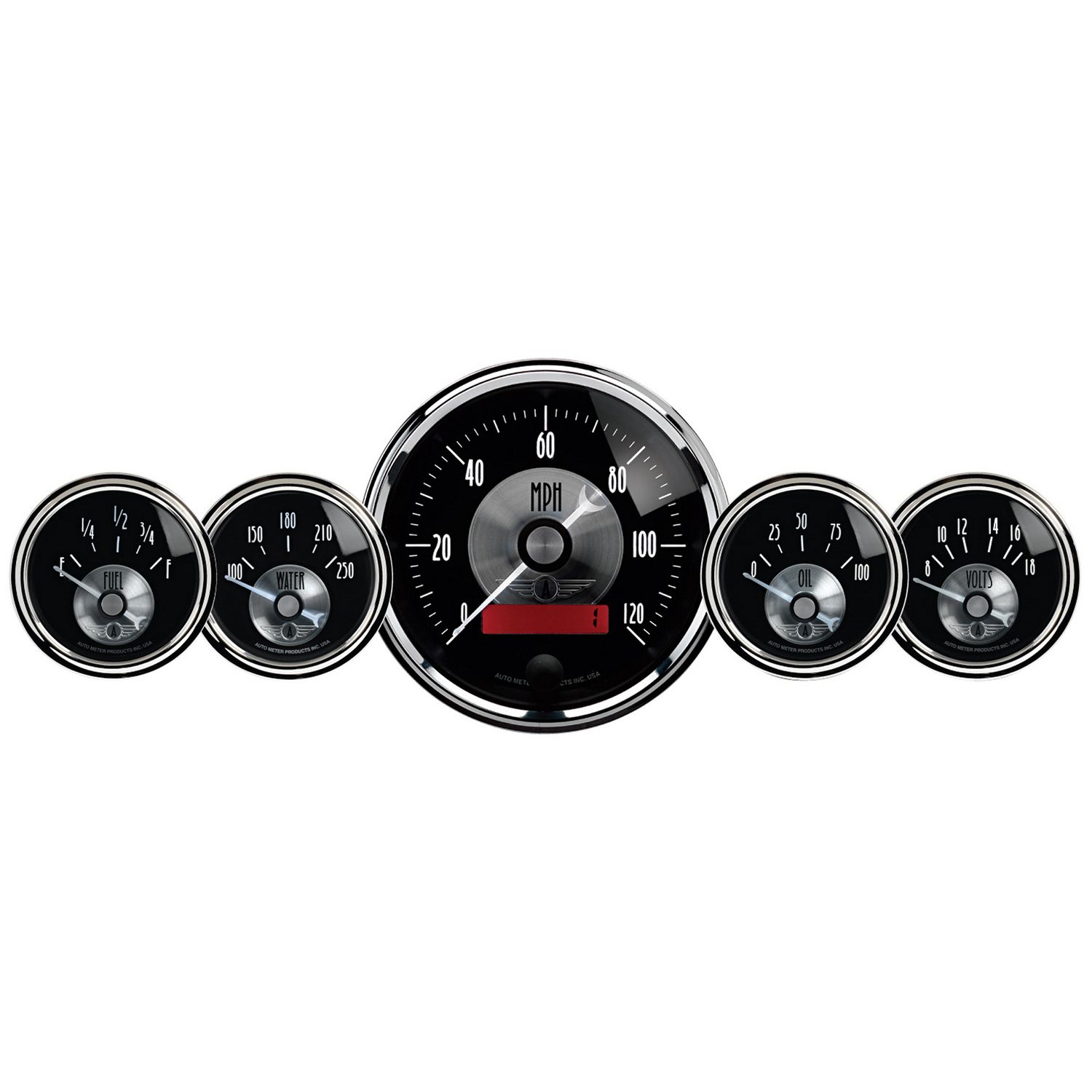

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
Feature Points
  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD), sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors. Speedometer can be easily calibrated using the trip reset button on the from of the unit and a premeasured two mile distance.
  • Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
  • Domed Lens
Ships With
  • Includes Sending Unit: Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - 5293 VSS Sensor
  • 3/8" NPT and 1/2" NPT adapter fittings
  • Brackets Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 9.57ms
  • bvseo-msg: HTTP status code of 404 was returned;


Hi, interested in this gauge kit. Wondering it I can order the kit without the sending unit, due to having one already.

Asked by: ivan gmc
Hello! 2001 is not available as a kit without the sending units.
Answered by: Natalia from AutoMeter
Date published: 2020-12-08

Do you do 5 pc gauge kits with kms instead of mph?

Asked by: Steve1979
Hello! We do not have a kit with a metric speedometer in the Prestige Black Diamond series, but we do in other series including Designer Black, Arctic White, Old Tyme White, and Antique Beige. We offer individual metric speedometers in most series, including American Muscle, Carbon Fiber, Cobalt, and more.
Answered by: Natalia from AutoMeter
Date published: 2020-11-24

Do you make this kit for a 1969 Camaro? If so can I send me info please

Asked by: Jta1977
Thank you for reaching out to us. Our current panel for the 1969 Camaro, model 2131, accepts a 5" tach and speedometer, which we do not offer in the Prestige Series. We do offer the 5" Tach/Speedometer Combo and Quad, which would fit in the 2131, but that would leave you with the 4 extra 2-1/16" holes.
Answered by: Matt from AutoMeter
Date published: 2019-01-02

Does the 5 PC. GAUGE KIT, 3-3/8" & 2-1/16", ELECTRIC SPEEDO W/LCD ODO, PRESTIGE BLK. DIAMOND come with the wiring harness or do I need to purchase the Universal wiring harness

Asked by: Deeb
