In stock


Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

  • Type:Kits
  • Range:120 MPH/100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
  • Lighting:Incandescent
  • Instructions: Download PDFDownload PDF

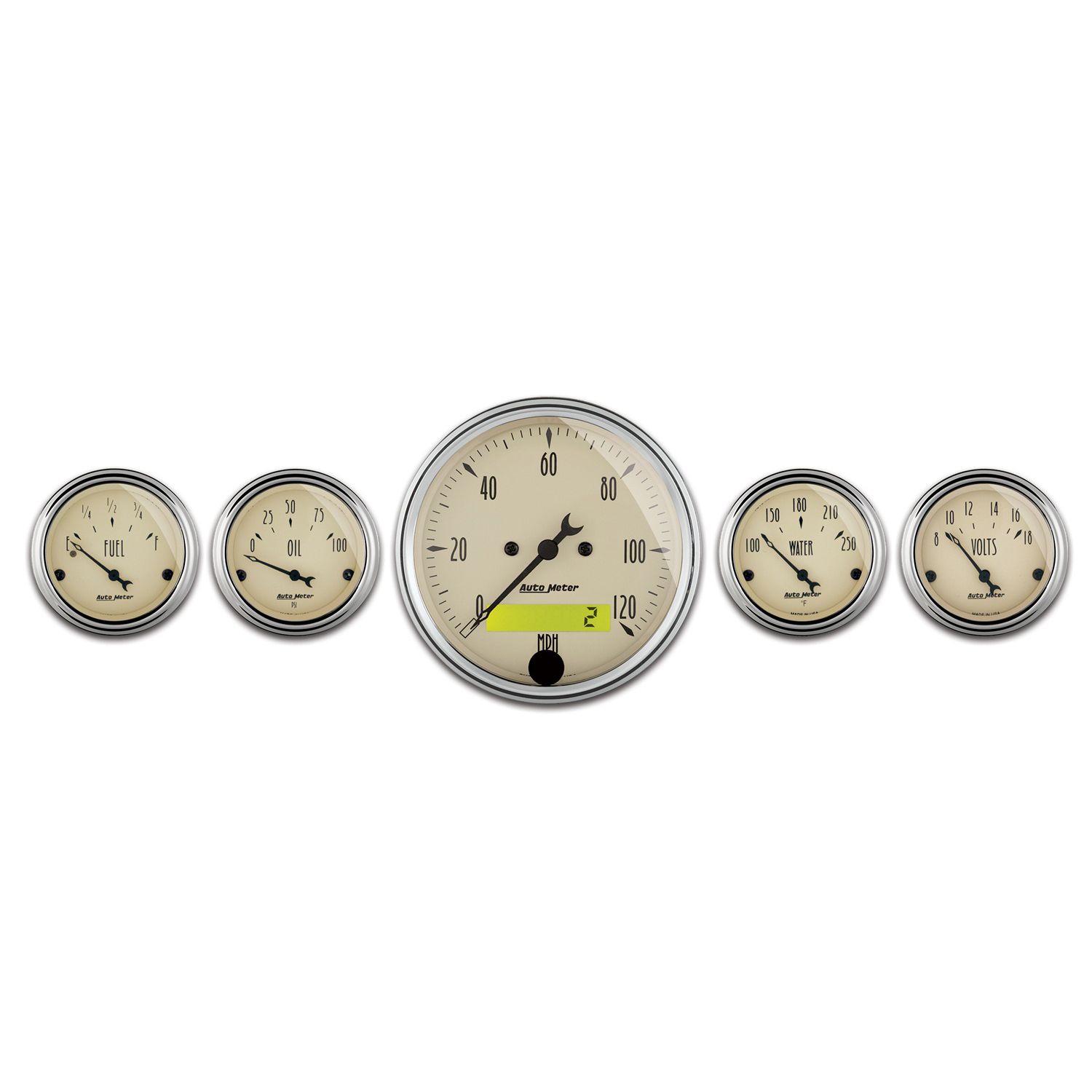

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD), sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
  • Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
  • Domed Lens
Ships With
  • Includes Sending Unit: Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - 5293 VSS Sensor
  • 3/8" NPT and 1/2" NPT adapter fittings
  • Brackets Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 96.48ms
  • bvseo-msg: HTTP status code of 404 was returned;


I want to put the gages in my 1955 Ford pickup, not stock. Is there a fuel level sending calibrated to your fuel gage. Also are there different color bezels.

Asked by: Jack 55
Hello, thank you for contacting us. You can use 3262 with our 240-33 ohm fuel gauge.
Answered by: Sarah from AutoMeter
Date published: 2021-08-06

is the speedometer sending unit compatible with a 700R4 transmission? are there any other parts required to hook up the sending unit with the transmission?

Asked by: DMK39
Thank you for your question. The speedometer can work with almost any electronic sending unit. As long as a signal is provided, you can calibrate the speedometer to the speed sensor.
Answered by: Natalia from AutoMeter
Date published: 2020-12-11

Will these fit a 1993 pete

Asked by: RDC57
Thank you for your inquiry. This is a universal kit. While it can be adapted to many vehicles, we have no information on fitment and adaptability for specific applications.
Answered by: Jim from AutoMeter
Date published: 2020-04-02

I purchased this 1809 set to install into a 1950 Lincoln with the original 337 Flathead. The Flathead uses 2 temp senders (one per bank) do you make sending units that can be wired in series? Wiring 2 standard units in series drops the resistance in 1/2

Asked by: Jetpup
Thank you for your inquiry. Our temp gauges cannot work with two senders at the same time. Your options are monitor only one side, install a second sender with a switch so only one sender is connected to the gauge at a time, or an entire second temp gauge and sender, one for each bank.
Answered by: Jim from AutoMeter
Date published: 2020-03-23

How doe the ELECTRIC SPEEDOMETER work? I have a 1959 Ford pickup with a 350 chevy motor and a chevy three speed transmission.

Asked by: Badben
Thank you for your question. It will need an electric speed signal from your ECU, or you factory vss, or our vss installed in your transmission. Once the speedo is wired up, map out a 2 mile drive, then put the speedo in calibration mode, press the trip button at the start of the 2 miles and again and the end of the 2 miles and your speedometer will be calibrated to work accurately with your vehicle.
Answered by: Zach from AutoMeter
Date published: 2019-03-11

does the kit come with necessary hardware to connect gauges

Asked by: torvair
Thank you for your question. This kit will include the necessary sensors and mounting hardware. You will need to supply your own wiring. We recommend using 18-20 gauge wire.
Answered by: Zach from AutoMeter
Date published: 2018-12-11

Looking to swap gauges in an old '64 TR4 with Jaeger gauges 52mm.  What all has to be done to get these to work correctly?  Is it a simple plug and play scenario or is there a lot more work involved in doing the swap?

Asked by: F1LOCO
Thank you very much for contacting us. Without quite a bit more detail, it would be very difficult to determine what, if any, modifications or adapters would be necessary to install these gauges. I would recommend reaching out to our service team at 866.248.6356, hitting the Chat link at the top of the page or emailing us and we will try to help you determine what would be needed for installation. Here is a link to email us:
Answered by: Matt from AutoMeter
Date published: 2018-01-02

what is the depth of the gauges

Asked by: Dude
