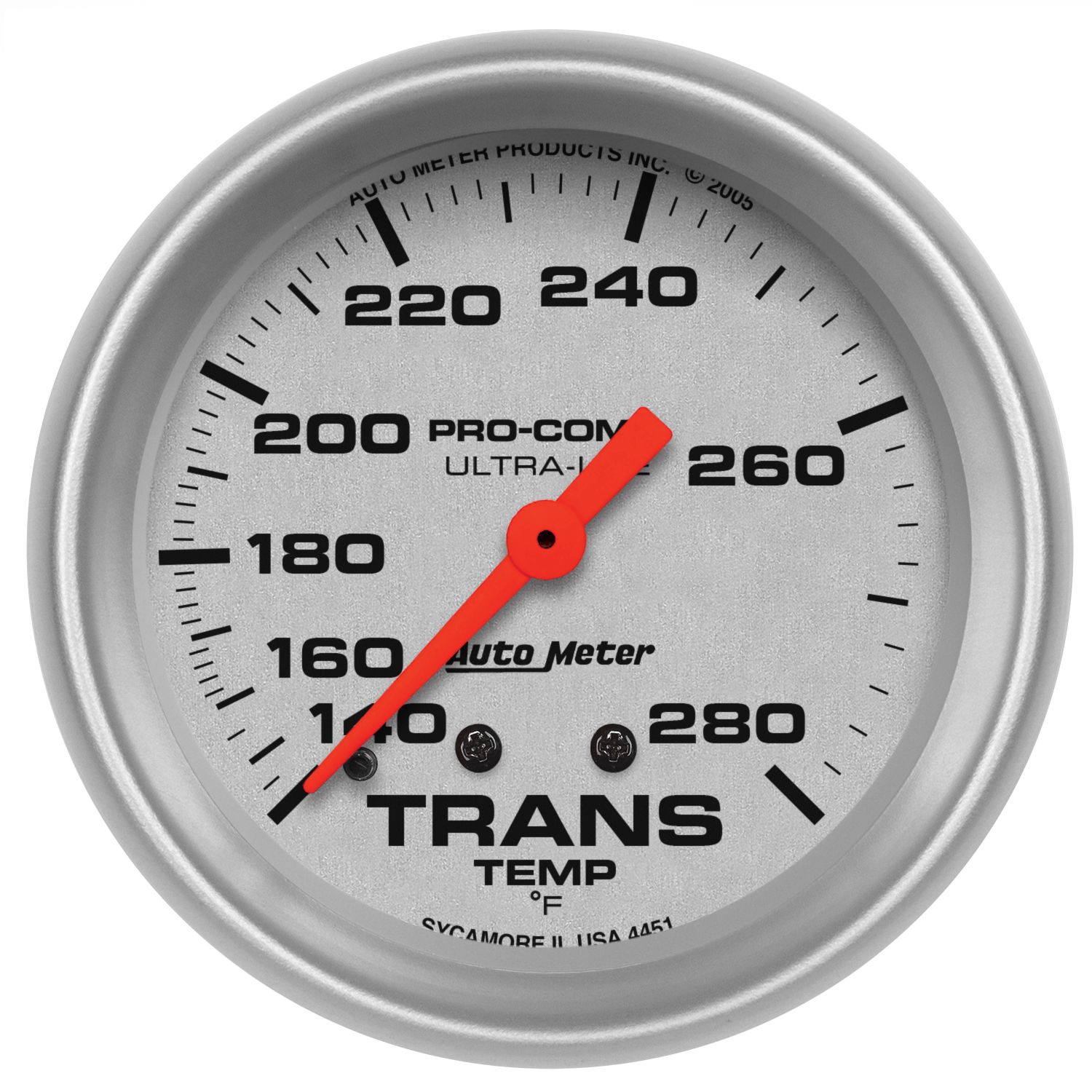

2-5/8" TRANSMISSION TEMPERATURE, 140-280 °F, MECHANICAL, ULTRA-LITE

2-5/8" TRANSMISSION TEMPERATURE, 140-280 °F, MECHANICAL, ULTRA-LITE

Product # 4451
$117.95

OR
  • 2-5/8" (66.7mm)
  • Mechanical Mechanical
  • 140-280 °F
  • Incandescent
  • Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8’ Capillary Tube with a 1/2” NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option.
ADDITIONAL NOTES

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Gauge kit includes 1/2" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
SHIPPED WITH

Adapter/Fitting

  • 1/2" NPT adapter/fitting.

Tubing

  • 8 ft. Capillary Tube

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 3245
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 73.4ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

Does this gauge kit come with the sender or does that have to be purchased separately?

Asked by: Jbaker4341
Thank you for your question. This is a mechanical gauge so it will come with an attached capillary tubing with a fitting on the end. You will not need to purchase a separate sensor.
Answered by: Zach from AutoMeter
Date published: 2019-06-24

 I need to know what size hole to cut (2 5/8”) for the gauge to slide through and most importantly the width of the face or bezel.

Asked by: Jbaker4341
Thank you for your question. Our 2-5/8" gauges fit in a 2-5/8" hole. The outside diameter of the bezel is 2-7/8".
Answered by: Zach from AutoMeter
Date published: 2019-06-13
