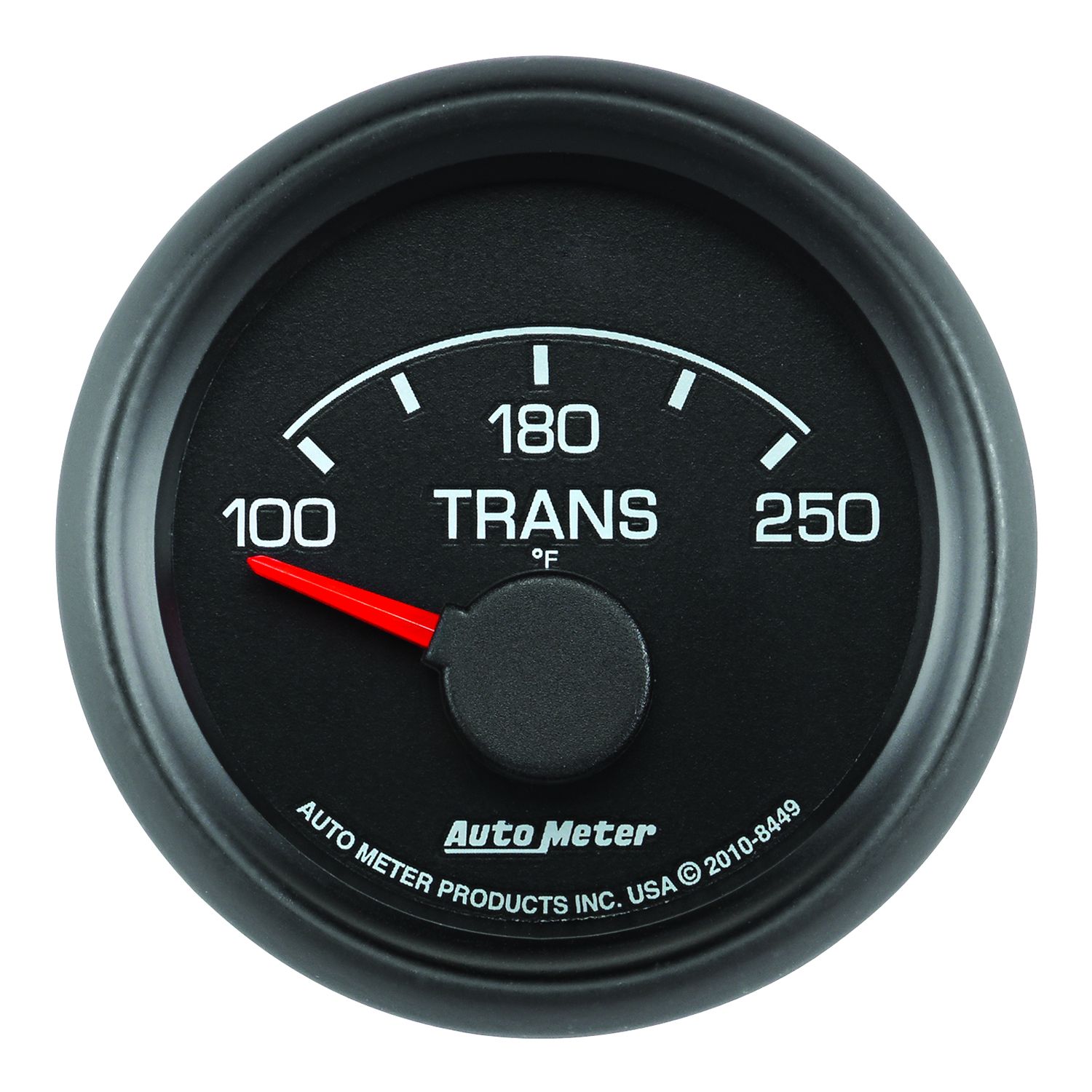

2-1/16" TRANSMISSION TEMPERATURE, 100-250 °F, AIR-CORE, FORD FACTORY MATCH

$82.73
Shipping in 5 business days
Free Shipping over $99
Hassle Free Returns

Description:

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it.

Quick Specs

  • Size:2-1/16" (52.4mm)
  • Type:Air-Core
  • Range:100-250 °F
  • Lightning:LED
  • Instructions: Download PDF
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8” NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
Feature Points
  • Factory matched LED through-the-dial lighting provides clear visibility during nighttime use and matches OEM instrumentation
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Ships With
  • 2258
  • 3/8" NPT and 1/2" NPT adapter fittings
  • 2230
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

REVIEWS:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 59.96ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

QUESTIONS:

Is the pointer red or orange? Do you also have a engine oil pressure gauge in this series?

Asked by: Studhauler
Thank you for your question. The pointer is red. We do not have an oil pressure gauge in the Factory Match Ford series.
Answered by: Natalia from AutoMeter
Date published: 2021-01-18

Are the blank marks 140 and 215 or?

Asked by: Nathan
I did the math same as you.  And I also assume 140 and 215.  Not 100% sure but it stands to reason.
Answered by: Thundercat
Date published: 2018-03-25

Does this come with the fitting that screws into the test port of the 4r100

Asked by: Teach
