In stock


Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

  • Size:2-1/16" (52.4mm)
  • Type:Digital Stepper Motor
  • Range:100-260 °F
  • Lighting:LED
  • Instructions: Download PDFDownload PDF

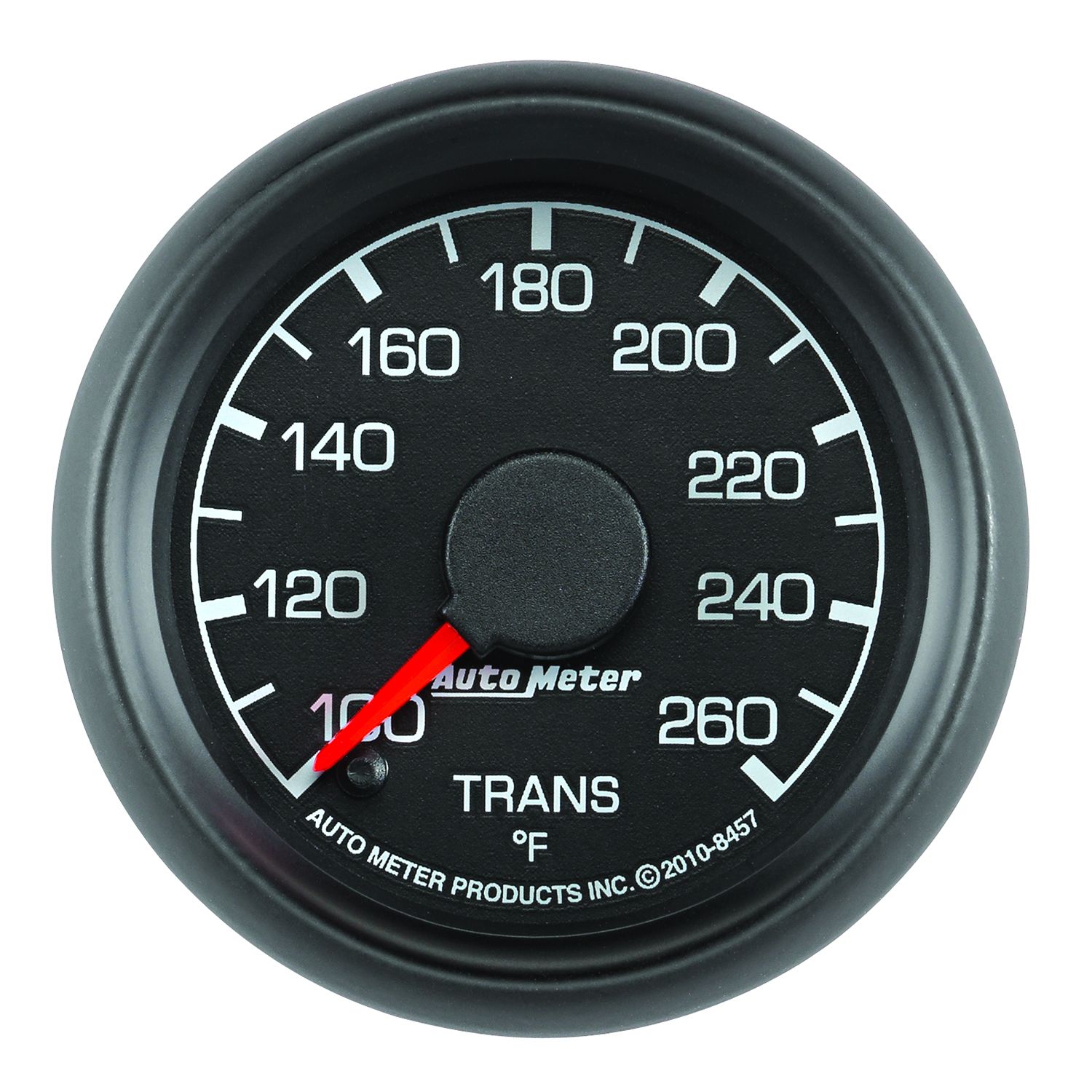

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter’s most advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.
Feature Points
  • Factory matched LED through-the-dial lighting provides clear visibility during nighttime use and matches OEM instrumentation
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
  • Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
  • AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
  • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Ships With
  • 2252
  • 3/8" NPT and 1/2" NPT adapter fittings
  • 2230
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 80.17ms
  • bvseo-msg: HTTP status code of 404 was returned;


What gauge of wire is used from the sensor/sending unit in the pan to the gauge itself? I need to splice, solder, and repair and want to use the same size wire for the best connection possible.

Asked by: wrightcall
Thank you for your question. This uses 22 gauge wire. We would recommend soldered connections and it would be important to check to ensure 0 resistance through that new connection.
Answered by: Sarah from AutoMeter
Date published: 2021-10-13

I had a new transmission fluid pan put on my truck and the mechanics spliced the wires to extend them so the sensor would fit in the sensor port on the pan. I have extra wire coiled up out of the way, what is the best way to fix this?

Asked by: wrightcall
Sorry, we’re not sure if we fully understand the question. If you’re looking to eliminate the extra wire, we would not recommend making any adjustments if everything is functioning properly. You can cut out extra wire and reconnect, but the temperature gauge is based on resistance, so it would be critical that you have a perfect, soldered connection with zero resistance.
Answered by: Sarah from AutoMeter
Date published: 2021-09-03

I bought this gauge and can't get it to work with the manifold 2286 in return hard line (which is hot as well as the supply) is it that i have it mounted with sender pointing up? or does it need more ground? Gauge lights and dims as should, 12v is good, ?

Asked by: Bart
Thank you for your question. If using an electric gauge with 2286 you more than likely need to run a remote ground wire to the sending unit. the sending unit grounds through the threads and will not have sufficient ground through the adapter. Run a ground wire from a good engine ground to the body of the sending unit. If your issue persists, contact our support team so they can go through some further troubleshooting steps. You can reach our support team at 866.248.6357 or
Answered by: Zach from AutoMeter
Date published: 2019-05-21

Is there anyway to purchase just sensor for this? I don’t need the entire unit. If so will you send me the link in the response thank you

Asked by: Kyle222
Thank you for your question. This gauge uses our sensor #2252:
Answered by: Zach from AutoMeter
Date published: 2019-05-17

Can I just buy the sensor, mine has died and I’m not interested in buying the entire gauge again.

Asked by: Kyle222
Thank you for your question. Yes, the sensor is part #2252.
Answered by: Zach from AutoMeter
Date published: 2019-05-09

Will this work on a ford, 2012, E450 frame, V10, - which is a RV. It has 5 speed automatic transmission - AC3P-7000HA. I would like to use it with a test port installation. Thanks

Asked by: Hpely
Thank you for the question. It's important to know, despite being Ford Factory Match, these are designed as add-on auxiliary gauges and not necessarily vehicle specific. This should work for you, but there are potentially a couple challenges. The 8457 Full Sweep Electric model includes an 8FT harness from the gauge to the sender. That should be enough, but we don't recommend extending it, unless the connections are soldered, zero resistance connections. Secondly, in the test port, we often see an internal clearance issue with the sender. This potential problem can be eliminated by using our Short Sweep Gauge model 8449 ( along with our shallow depth sender model 2259 (
Answered by: Matt from AutoMeter
Date published: 2018-04-26
