Product
1302-00408

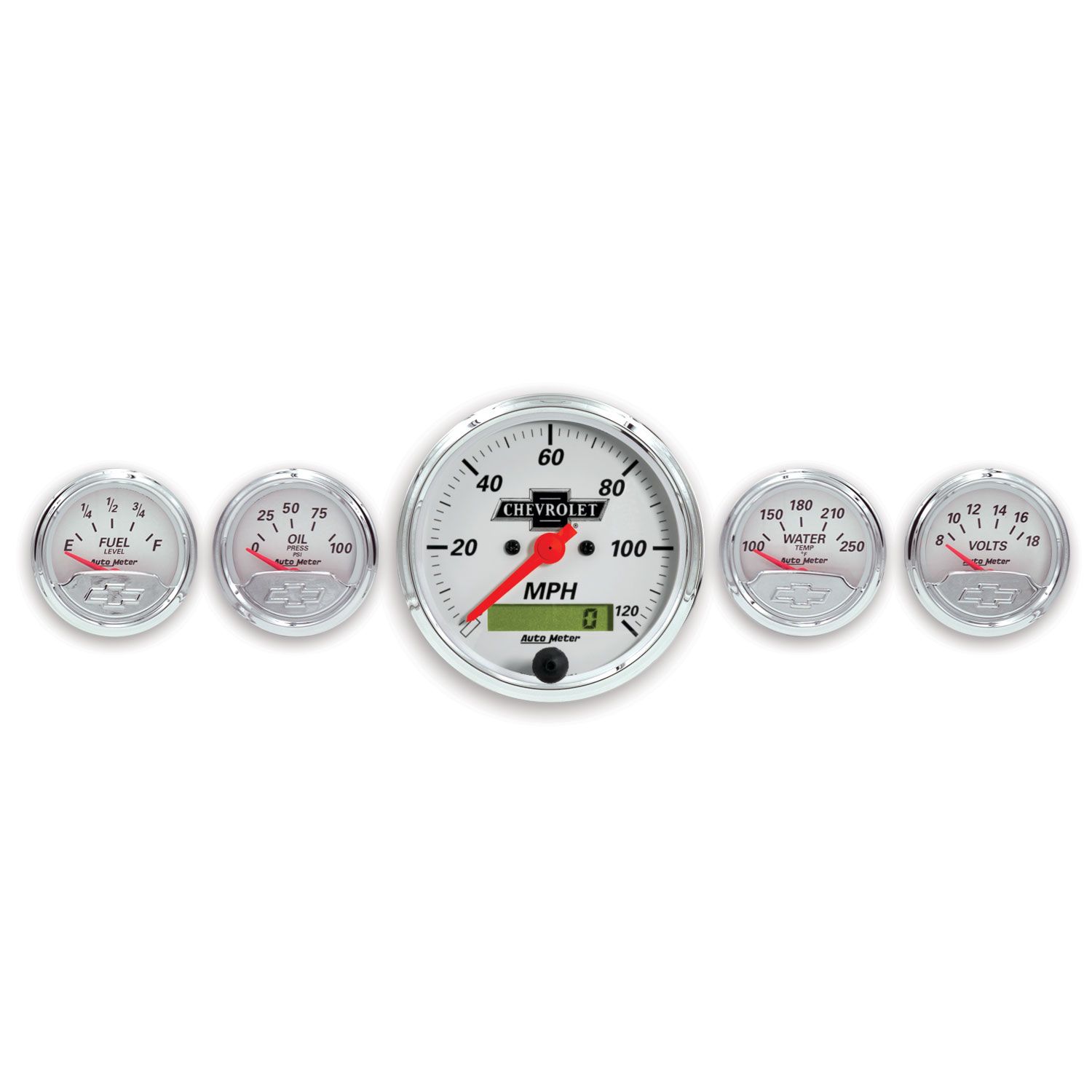

5 PC. GAUGE KIT, 3-1/8" & 2-1/16", ELECTRIC SPEEDOMTER, CHEVROLET HERITAGE BOWTIE

$470.24
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

  • Size:Kit 3-1/8" & 2-1/16" (Kit 85.7mm & 52.4mm)
  • Type:Kits
  • Range:120 MPH/100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
  • Lighting:Incandescent
  • Instructions: Download PDFDownload PDF

DESCRIPTION:

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD), sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
  • Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
  • Domed Lens
Ships With
  • Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - 5293 VSS Sensor
  • Brackets Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

REVIEWS:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 73.26ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

QUESTIONS:

Do all gauges only come in MPH? I live in canada and am looking for KM/H

Asked by: Joeyc03
Thank you for your question. We do offer a KPH gauge in a few of our gauge series. We recommend calling us at 815-895-8141 for further assistance.
Answered by: Steve from AutoMeter
Date published: 2020-02-27

What is the outside dimension of the large gauge?

Asked by: Maverick71
Thank you for your question. The outside dimension of the bezel is 3-5/16" and the side of the cup is 3-1/8".
Answered by: Steve from AutoMeter
Date published: 2020-05-02

Guage kits for ls conversion. Is there such a thing?

Asked by: Island smith
Thank you for your question. Depending on the year of the LS motor you can use P/N: 5284 and P/N: 9123 which will work with this kit.
Answered by: Steve from AutoMeter
Date published: 2019-10-17

Have Chevy Chevelle SS and need three large dials - rev counter, speedo and clock. Do you do these in Chevy Vintage?

Asked by: Tim Steer
Thank you for your question. We do not have a large clock in the Chevy Vintage series.
Answered by: Zach from AutoMeter
Date published: 2019-08-28

I see from the above fuel sender answer that the guage would NOT be compatible with the stock sender on my 55 chevy. Will the sender in the set fit my stock fuel tank? Thanks, Swede

Asked by: Swede
Thank you for your question. None of our gauges or sending units are made to be vehicle specific, they are made for universal application. The fuel level sending unit is #3262 and that fits a standard 5-bolt, top mounting, flange.
Answered by: Zach from AutoMeter
Date published: 2019-05-18

Looks like a fuel sending unit is included? If so, is it possible you've got one compatible with the in-cab C10 tanks (~16 1/2 depth)?

Asked by: RFS_ST
Hi Rich, thank you for the question. The sender you see in the 1302-00408 kit is the only sender that we offer. It's a 240-33 ohm range and is also adjustable from a 5" to 24" deep tank.
Answered by: Matt from AutoMeter
Date published: 2020-05-02

Do you have a version of these with LED lighting?

Asked by: John Dors
Hi John, thank you so much for contacting us. Currently, these gauges are not available with LED, through the dial lighting. As they're a more vintage style, they use traditional around the dial flood lighting. You can however upgrade the incandescent bulbs with LED replacements: http://www.autometer.com/catalogsearch/result/?q=led+bulb+pack#1&profile=products Hope this helps!
Answered by: Joseph From AutoMeter
Date published: 2020-05-02
