Quick Specs

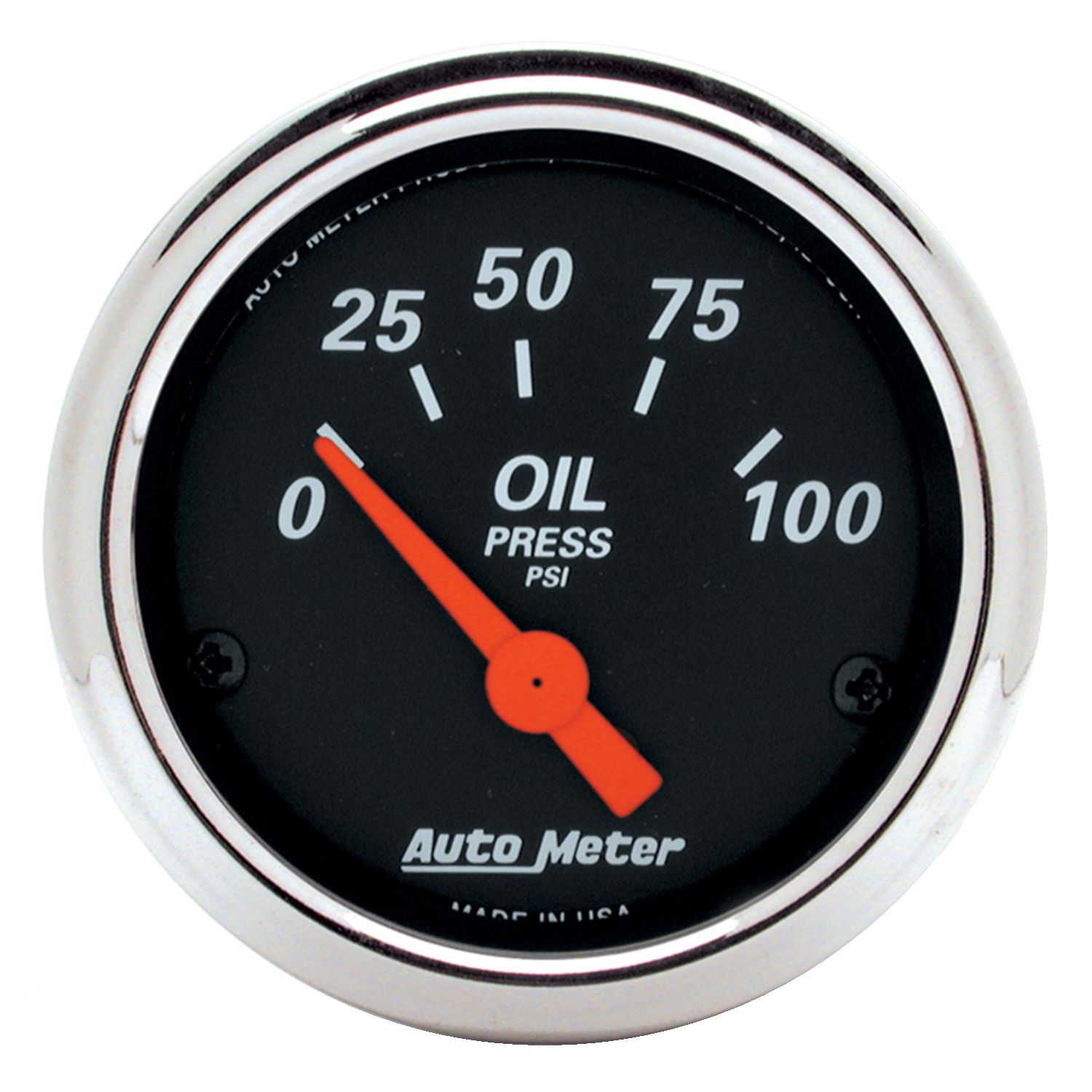

Quite possibly the most critical vital to monitor, engine oil pressure can mean the difference between making it home and needing to replace the engine. The patented air core meter movement provides the durability and accuracy that you expect from the AutoMeter name. Throughout 57 years of building the world’s best competition instruments, this meter movement has been the engine powering the machine that sets the benchmark. A single wire, 1/8” NPT oil pressure sender is included.
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Domed Lens
Ships With
  • 2242
  • 3/8" NPT and 1/2" NPT adapter fittings
  • 2230
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 5.81ms
  • bvseo-msg: HTTP status code of 404 was returned;


Had headers installed now oil pressure gage reads over 100#.I think sending unit was damaged .can I order just the sending unit?

Asked by: DENY411
The correct sender is part number 2242: It can be ordered through the link above.
Answered by: Jim from AutoMeter
Date published: 2022-07-21

I have this oil gauge and it works when the engine oil is cold (engine just started and for the first 20 minutes or so); then it goes to zero at idle, but goes back up again to normal when under acceleration. Would it be the sending unit on the motor? Thx

Asked by: AJ99
For further assistance on this please reach out to our tech support at 86-248-6357.
Answered by: Steve from AutoMeter
Date published: 2022-07-06

Is the "pressure sender." a pressure sending unit? And is it included? If not what's the part number for it? "Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter," Thanks

Asked by: freebirdinflyt
Pressure sender or sending unit can be used interchangeably. This gauge includes our 2242 sender.
Answered by: Alex at AutoMeter
Date published: 2022-05-02

is this mechanical

Asked by: jeffy
This is not a mechanical. This is what we consider a short sweep electric. The mechanical option in this series is model 1432.
Answered by: Matt from AutoMeter
Date published: 2022-02-16

Can the Designer Black Gauges be ordered through the Custom Shop with white needles instead of orange ones.

Asked by: Bruno
Hello Bruno, thank you for your question. Yes, it is possible. The whole gauge set would have to be designed in the custom shop to match that series.
Answered by: Sarah from AutoMeter
Date published: 2021-07-28

Does the Designer line of gauges have the domed glass?

Asked by: Pops
Thank you for your question. Yes, the Designer Black series has the domed lens.
Answered by: Zach from AutoMeter
Date published: 2019-04-26

Can I remove the ring and glass? My 68 C20 has a 1 piece glass that behind the bezel with markings for all the gauges.

Asked by: Bongo Jim
Thank you for your question. We would highly recommend not removing the bezel and glass as that would void the warranty and expose the internals of the gauge to the outside environment. The bezel is not made to be removed.
Answered by: Zach from AutoMeter
Date published: 2019-03-19

Hello i have this.installed on a 6.0 vortec chevy engine and its not working why and how can i make it work

Asked by: Alexander yacoub
Hi Alexander, thank you for contacting us. This may require some additional troubleshooting with our Technical Support Team, but make sure the sender body, usually through the threads, is making a ground in the engine. If an excessive amount of thread sealant is used or the sender is remote mounted, this can prevent a ground which will prevent the gauge from moving off the zero point. If you've confirmed the sender is grounded, I would recommend reaching out to our service team with additional information. Give us a call at 815-895-8141, hit the Chat link at the top of the page, or email us here:
Answered by: Matt from AutoMeter
Date published: 2018-07-25
