In stock


Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

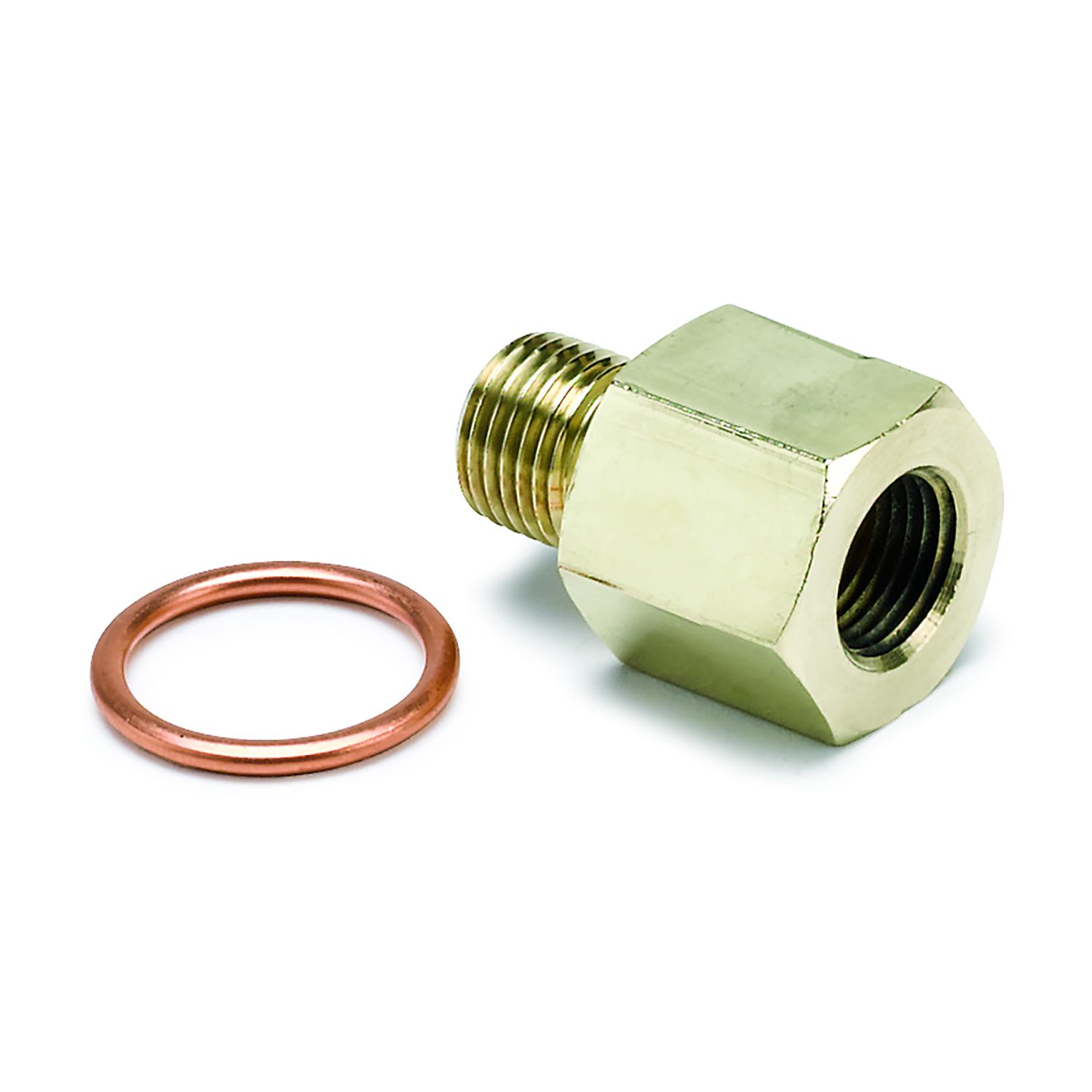

1/8" NPT Female to M10x1.0 Male
Feature Points
  • Constructed from solid brass
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 57.73ms
  • bvseo-msg: HTTP status code of 404 was returned;


Hi for the parts #2265 is there a way to buy only the brass seal ?

Asked by: Dan C.
We do not have a part number to buy this separately.
Answered by: Thomas From AutoMeter
Date published: 2023-03-13

Have gm350('96) w/hole in blk face up, to right of distributor need a 1/8-NPT fitting to an oil pressure gauge. Can't ID threads that hole. Tried 3/8-24 goes 2 turns 1/8-NPT too big. Will M10-1/8 NPT fit?

Asked by: Oldgolpher
Thank you for your question. We recommend taking the threaded bolt to a store to check the threads.
Answered by: Natalia from AutoMeter
Date published: 2020-12-15

I want to put a Flexilla 1/8 NPT hose on a Milwaukee cordless grease gun  The particular Milwaukee model has a METRIC 10X1 (M) hose end. Will your adaptor work?  Thanks.

Asked by: JimL
We have never tested this specifically with those products but it has an 1/8" NPT female to M10x1 male adapter so if those are the fittings on your products, this should work.
Answered by: Zach from AutoMeter
Date published: 2019-04-30

Will the end of a temperature sender fit through the other side of this? such as this

Asked by: bretly
Thank you so much for contacting us. Unfortunately, with a hole that small, you'll be limited to using the shallow depth temperature sender: This unit is compatible with Air Core Temp Gauges (though not included with them): Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-07-23

Is the 10x1 metric thread a taperd pipe thread or strait? As you'r showing the fitting with a copper gasket I,m guessing strait.

Asked by: torch
Thank you for the question. The 2265 features a straight M10 x 1.0 thread and will include the pictured crush ring. The female part of the adapter is designed to accept a tapered 1/8" NPT fitting.
Answered by: Matt from AutoMeter
Date published: 2018-04-06

Item #2265 is M10 x 1 male to 1/8 NPT female. Do you have a fitting that is M10 x 1.5 to 1/8 or 1/4 NPT? Thanks.

Asked by: Bowtie 1
