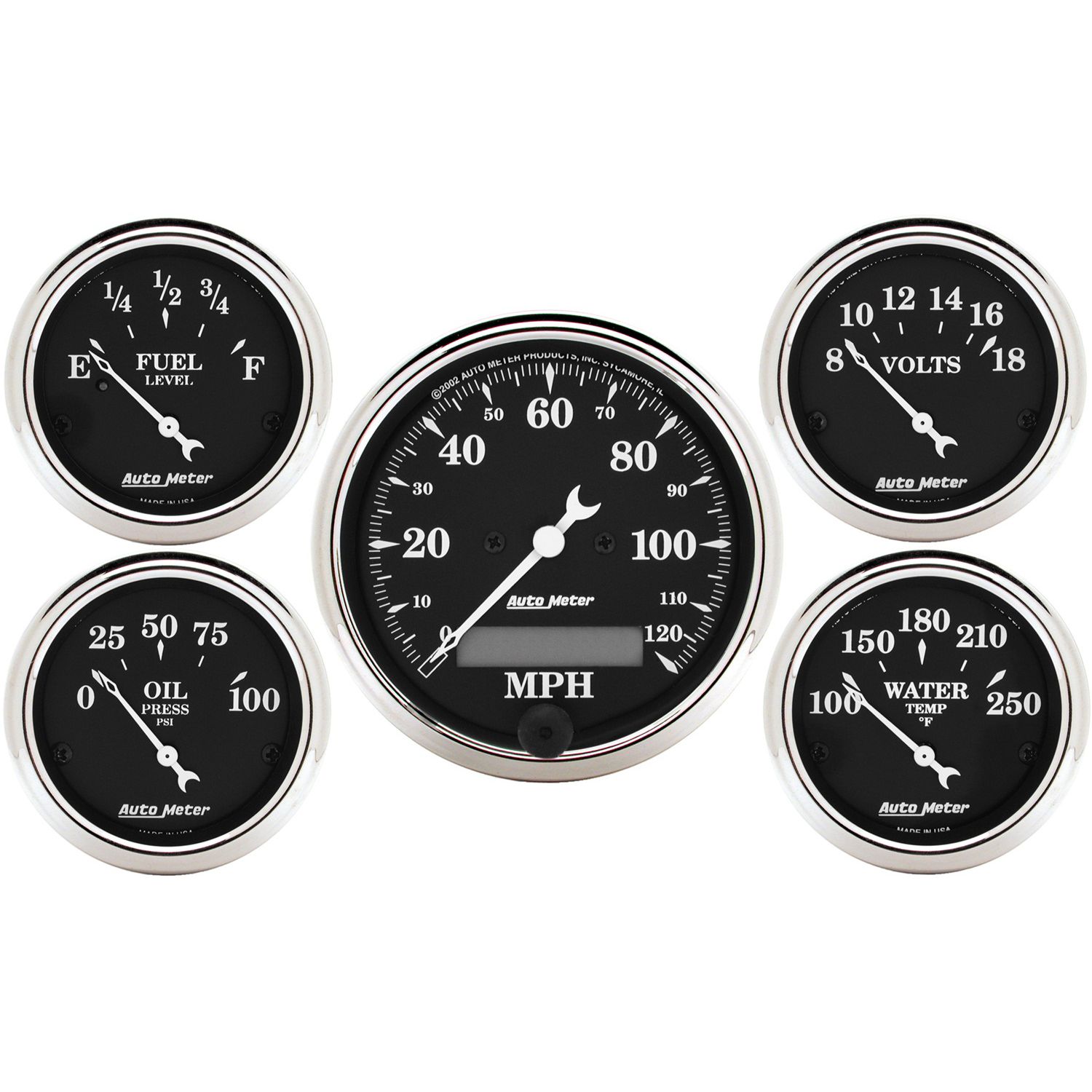

5 PC. GAUGE KIT, 3-1/8" & 2-1/16", ELECTRIC SPEEDOMETER, OLD TYME BLACK
AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD), sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
- Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - 5293 VSS Sensor
- 3/8" NPT and 1/2" NPT adapter fittings
- Brackets Included
Can I get this kit with a 5" Speedometer, such as the 1789-OTB model?
I am attempting to create a Trans Temp Gauge to go with this kit. Can you tell me what Bezel Style this is on these gauges? Super Bezel, or Street Rod Bezel?
Do you provide the wiring diagram to connect to a 2003 Jeep Wrangler
Podría adaptar estos medidores a un Alfa Romeo 146 motor boxer 1.7 16v
