PILLAR KIT, 100-250 °F/0-60 PSI/0-1600 °F, 03-09 DODGE RAM, PHANTOM

PILLAR KIT, 100-250 °F/0-60 PSI/0-1600 °F, 03-09 DODGE RAM, PHANTOM

Product # 7098

  • 2-1/16" (52.4mm)
  • Kits
  • 100-250 °F/0-60 PSI/0-1600 °F
  • Incandescent
  • Download Download Download
  • Ships in 2 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns

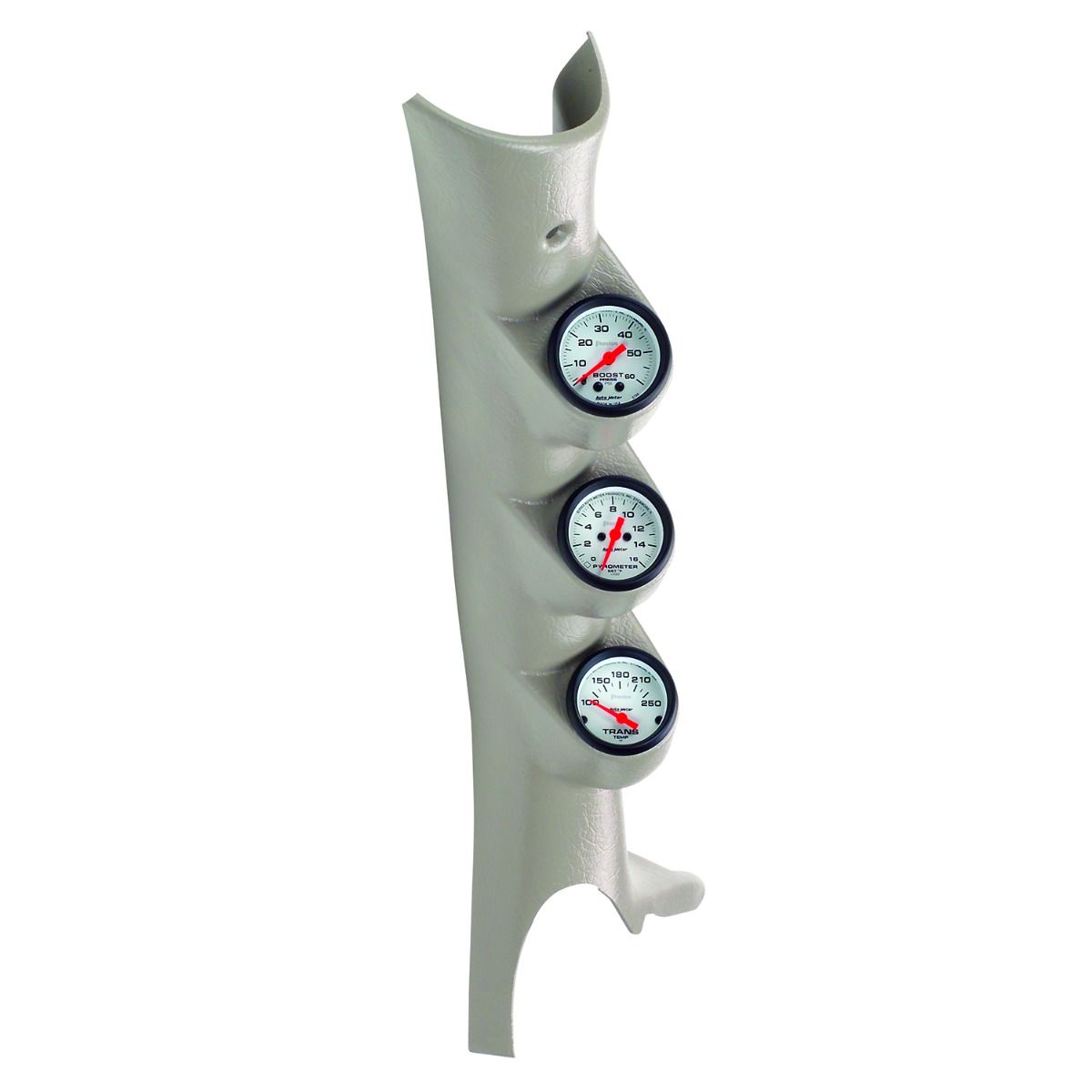

AutoMeter has brought together the most popular diesel gauges into a complete, ready to install pillar kit. The kit includes a pyrometer (EGT), boost, transmission temperature gauge, and gauge pillar mount.

Feature Points

  • Kit includes bulb and socket assemblies with red and green bulb covers

Sending Units

  • 2258


  • 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings.

Wire Harness

  • 5297


  • 10 ft. nylon tubing

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • Nylon Ratchet
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 50.22ms
  • bvseo-msg: HTTP status code of 404 was returned;

Does the sending unit for the trans temp gauge install into the test port on the transmission in my 2005 Dodge Ram 2500 4x4? I bought the truck used and the trans gauge does not seem to work, or it is not installed. Would like to get it working. Thank yo

Asked by: Heath
Thank you for your question. We do not recommend installing this in the test port. For further assistance please call our tech line at 866-248-6357.
Answered by: Steve from AutoMeter
Date published: 2020-03-09

Does the Thermo coupler for the EGT gauge come with this kit 7098?

Asked by: Dcarroll
Thank you for your question. Yes, this kit will include all necessary sending units and tubing for the gauges. The EGT will include a wire harness and the thermocouple.
Answered by: Zach from AutoMeter
Date published: 2018-12-19

This is for 03 dodge ram 3500. Will trans temp gauge work with nv5600 trans? It has "trans-cool" coolers, looks like 1/8'' pipe thread plug for sensor.

Asked by: Ron Sager
Hi Ron, thank you so much for contacting us. The Trans Temp Gauge included in this kit should work perfectly with the nv5600 in your Ram, though it's worth mentioning that it's not common to measure temp in a manual gearbox. It will be pretty rare that the temperature would get very high; in everything but very severe service it isn't as critical as it is with an automatic. A lot of manuals will barely regster on the gauge (which starts at 100). With that said, the sending unit that's included is 1/8" NPT, so if you've already got a provision with your cooler, it should be a very easy installation. Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-01-04
