In stock


Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

  • Size:Kit 3-3/8" & 2-1/16" (Kit 85.7mm & 52.4mm)
  • Type:Kits
  • Range:120 MPH/100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
  • Lighting:Incandescent
  • Instructions: Download PDFDownload PDF

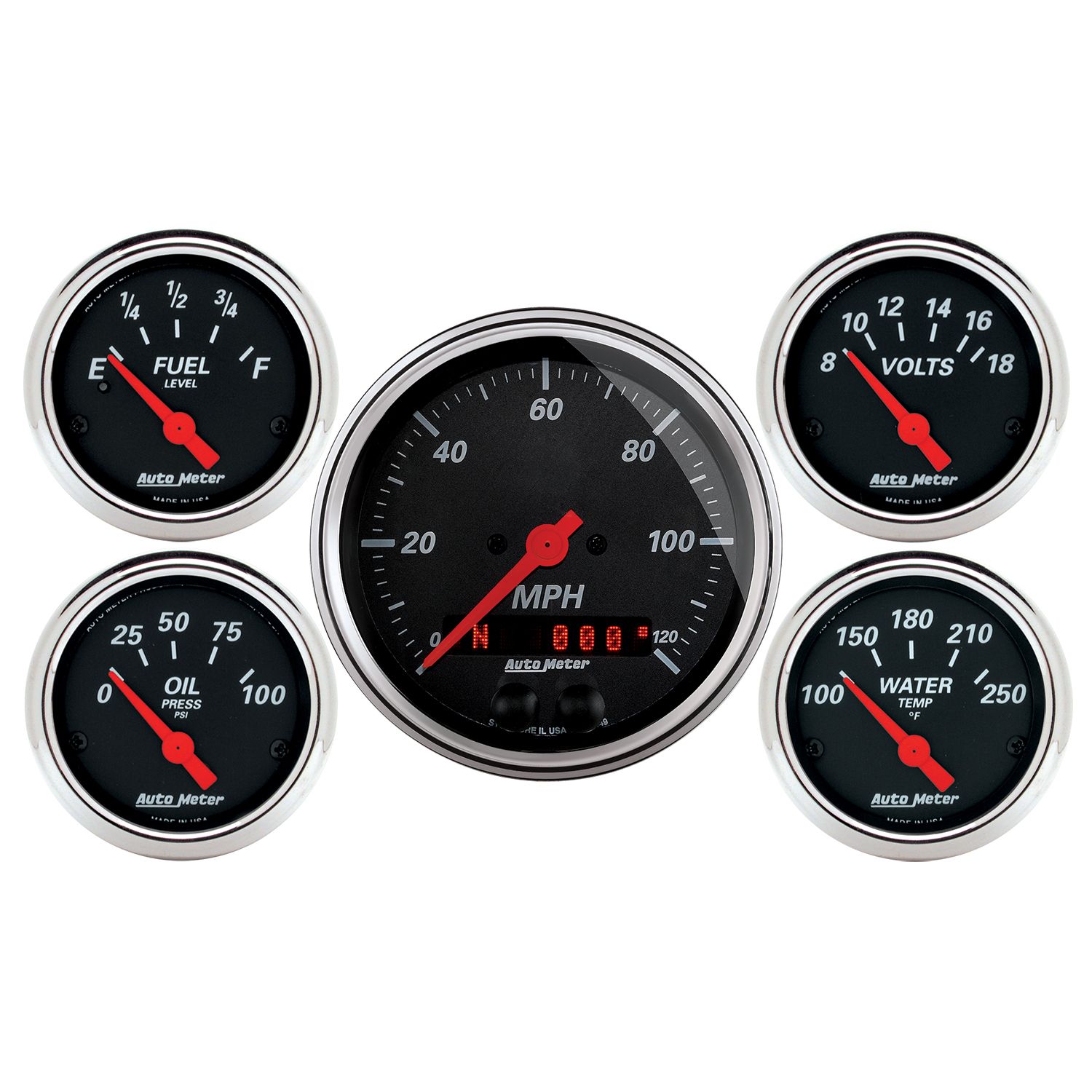

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable. AutoMeter’s advanced GPS Speedometers require no interface with your vehicle aside from power and ground. Their ultra-fast, omnidirectional micro antenna is included for true plug and play functionality and never requires calibration. Configurable Rally Nav display shows odometer, trip odometer, time/date, GPS coordinates, heading info, compass, and peak speed recall. Quite simply, the easiest, most accurate speedometer available.
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, GPS Antenna (sealed and paintable), sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
  • GPS Speedometer display features: Time/Date, Cumulative Distance (odometer), Trip Distance (tripmeter), GPS Coordinates with Heading Info, Compass, and Peak Speed Recall
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Domed Lens
Ships With
  • Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258
  • 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings.
  • Brackets Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


Rated 1 out of 5 by from gps not working unit looks great, it worked about 45 seconds and now it wont connect. talked to tech and they say its distributor or plug wires, but it doesn't connect even if its not running.
Date published: 2019-10-02
  • y_2023, m_2, d_6, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_1450, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_autometer-us
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 35.27ms


Hi I have a 1972 duster with a 2004 hemi engine. will this set work on this setup? and fuel gauge work on stock 72 sender?

Asked by: steve t
Thank you for your question. The fuel level sender in the 1972 Duster should be a 73-10 ohm, which would require the 1423 Fuel Level, which is not included in the kit. Because of this, we would recommend ordering each gauge individually.
Answered by: Natalia from AutoMeter
Date published: 2021-01-18

What is the matching 3 3/8" tachometer for this kit? Also, does the fuel gauge work with my stock fuel sending unit? If not, how do I know the Auto Meter sending unit will fit my tank?

Asked by: jgchemie
Thank you for your question. Our 3-3/8" Designer Black tach is model #1490. This kit includes a fuel level sender (240E/33F). We also offer other fuel level gauges sold individually in different resistances.
Answered by: Natalia from AutoMeter
Date published: 2021-01-05

Is it possible to get this, or a similar kit, in kilometers per hour?

Asked by: Gareth
Hello Gareth, thank you for your question. Unfortunately, there is not a metric gps speedometer available in the Designer Black series. You could get kit #1421-M along with our #5298 gps module to convert the metric speedometer in that kit to a GPS speedometer.
Answered by: Zach from AutoMeter
Date published: 2018-11-08

Will my stock sensors work with these? I have a 75 Ford 351w and transmission...

Asked by: Roger
Hi Roger, thank you so much for contacting us. Your stock sensors will not work with this kit, nor would you really want them to. The OEM sending units weren't really designed with things like accuracy or response time in mind. The best gauges in the world aren't going to be worth much if they're reading their signals from a cheap OE sender. Thankfully, all the sending units you'll need for your installation are included with the kit. Hope this helps!
Answered by: Joseph From AutoMeter
Date published: 2017-11-27
