Product # 7027

  • Kit 5" & 2-1/16" (Kit 127mm & 52.4mm)
  • Kits
  • 8K RPM/160 MPH/100 PSI/100-250 °F/8-18V/0ΩE-90ΩF
  • LED
  • Download Download Download
  • Ships in 2 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns

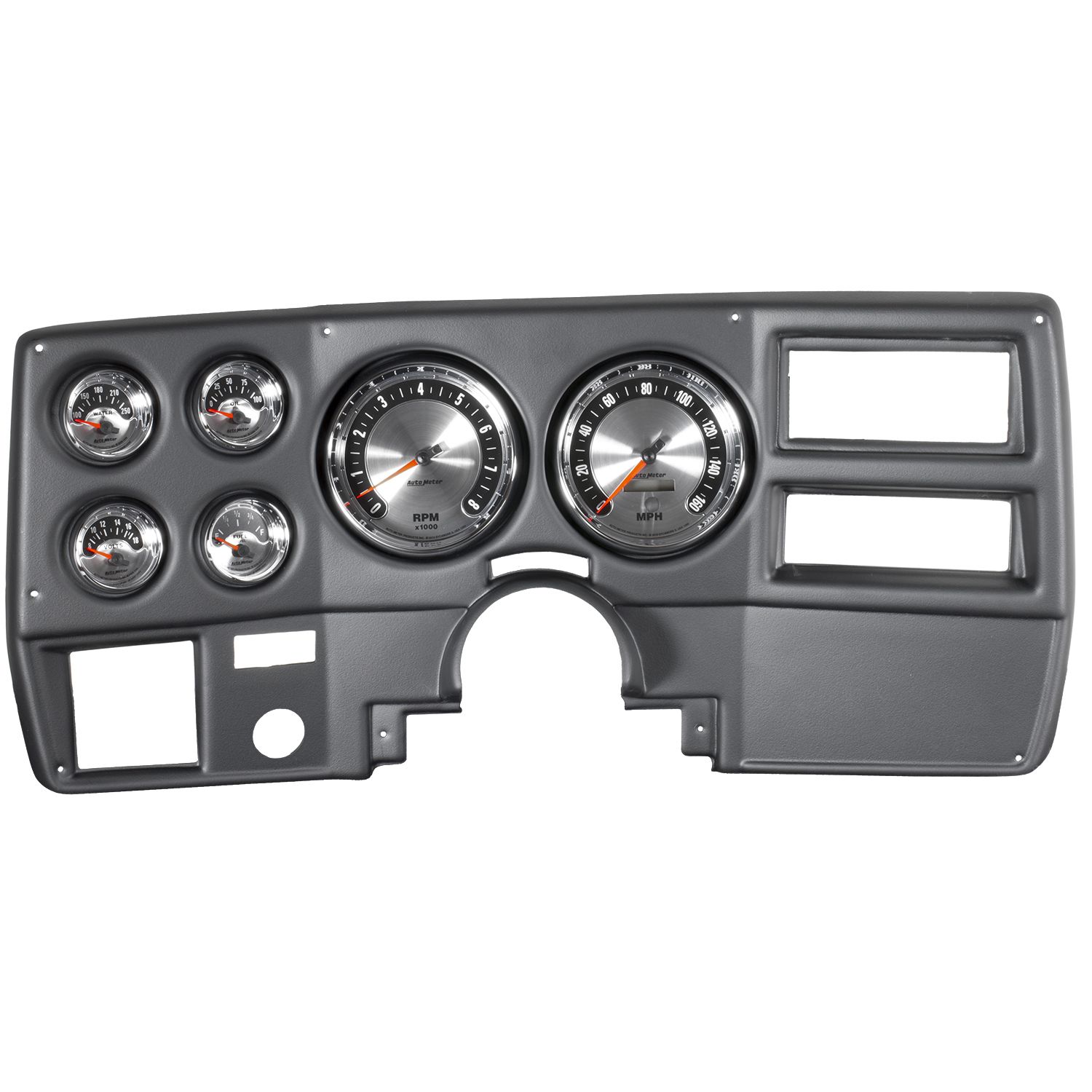

Outfit your classic muscle car or truck with AutoMeter direct-fit gauge kits that provide a custom performance instrument solution without the custom fab price! This easy-to-install kit includes a set of 6 iconic AutoMeter gauges, all the necessary hardware for mounting, a universal wiring harness, and an LED lighting dimmer.

• Complete, direct-fit gauge packages featuring AutoMeter’s most popular gauge designs for the most popular muscle car and classic truck applications
• Tach, Speedo, Oil Pressure, Water Temp, Fuel Level and Voltmeter with all necessary sending units included
• LED dimmer module and universal wiring harness with indicator lights also included


Feature Points

  • Includes 5" American Muscle electric speedometer & tachometer and 2-1/16" electric fuel level (0/90 ohm), water temperature, oil pressure, and voltmeter
  • Kit contains universal 6 gauge wire harness, electric speed sender, 1/8" NPT water temp & oil pressure senders with 1/4", 3/8" & 1/2" NPT adapter fittings, LED lighting dimmer, 3 optional LED indicators (2 green, 1 amber), and installation instructions 3
  • Track your engine's vitals in real-time with highly responsive and accurate electric air-core gauges from AutoMeter
  • Direct fit replacement dash with black textured finish - no cutting or modification of original dash required
  • Includes cutouts where applicable for factory accessory controls, air vents, & radio
  • Rugged, durable, and paintable thermoformed ABS plastic dash panel

Sending Units

  • Oil Sender 2242 - Water Sender 2258 - VSS Sensor


  • 1/4", 3/8", 1/2" NPT

Wire Harness

  • 2198

Mounting Hardware

  • Brackets Included
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 99.19ms
  • bvseo-msg: HTTP status code of 404 was returned;

Do these come to suit ls1 motors?

Asked by: Benji
Thank you for your question. If you wanted to use this kit with on an LS application, you will also want to get our LS install kit #5284. That would make these gauges compatible with your vehicle.
Answered by: Zach from AutoMeter
Date published: 2019-11-07

are you able to supply with KPH spedo please

Asked by: Scooter71402
Hello, Thank you for your question. We unfortunately only offer the KPH speedometer in a 3-3/8" P/N: 1288-M.
Answered by: Steve from AutoMeter
Date published: 2019-10-17

Is this speedometer compatible with the Auto Meter 5289 GPS Speedometer Sender? Will I be able to use this sending unit for the speedometer?

Asked by: Brice
Thank you for your question. Yes, the 5289 GPS module is compatible with the speedometer in this kit.
Answered by: Zach from AutoMeter
Date published: 2019-08-23

Where are the turn signal lights and the high beam indicator? Is there a parking brake light?

Asked by: Funnybone55
These items not included.
Answered by: FrankM
Date published: 2019-02-21

Will this work with a 1987 Chevy pick up with a ls3 swap

Asked by: Bro1984
Thank you for your inquiry. The 7027 will not fit a 1987 Chevy truck.
Answered by: Jim from AutoMeter
Date published: 2019-01-26

Apart from the purchase of this kit, I need to buy something else to install it in a 1987 C10 with 35O engine

Asked by: Reaper
I have a 1983 Chevy K5 Blazer. Each gauge is connected to harness & then install sender units directly; you will need turn signal lights pods; you will need to cut radio space I spent about $100 for extras. Your truck is a C10; I really don't know your install situation bu.t you will need time.
Answered by: FrankM
Date published: 2019-01-24

I do not have a/c in my truck. Does the dash panel come without the vent hole? Any chance the dash panel comes in the silver finish? A speedometer with miles n kms?

Asked by: Rob Reeves
Hi Rob, thank you so much for contacting us. I'll try to answer all of your questions. This particular dash panel is on;ly available in this configuration. We do not make one with the vent blocked off. While we don't make a silver finish, the surface is very easily paintable and looks very nice when done that way. Finally, while we don't offer a metric scale version of the speedometer, it can very easily be calibrated to read in KM/H by changing the distance of the calibration drive from 2 miles to 2 KM. Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2019-01-23

will this fit a 87 c10

Asked by: jabo
Hi there, thank you so much for the question. We do not offer a panel for the later model, but our partners over at http://classicdash.com/applications/ will have that application available with your choice of AutoMeter gauge style.
Answered by: Matt from AutoMeter
Date published: 2018-03-08
