Quick Specs

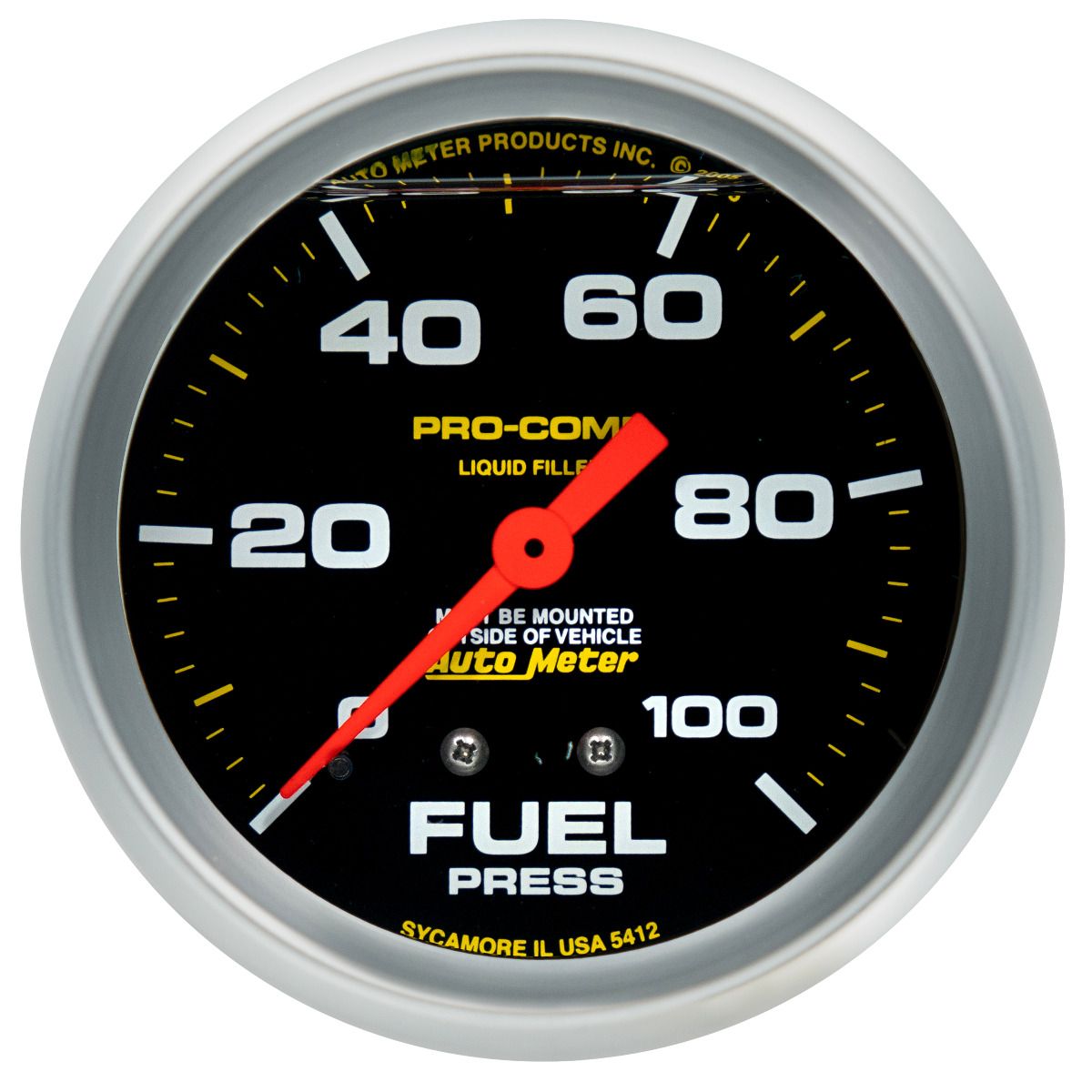

Seeing the exact fuel pressure on your vehicle can mean the difference between extracting the most performance safely and expensive failures. AutoMeter’s Mechanical Fuel Pressure Gauge will precisely measure your exact fuel pressure at levels of accuracy previously unheard of even in professional gauges. Designed for fuel injected or carbureted applications, a simple -4an connection makes installation easy. Don’t take chances with your investment; a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. For the safety of the operator, it is not recommended that Fuel Pressure gauge are installed inside the cabin of the vehicle. Optional fuel isolators are available for both carbureted and fuel injected applications.

Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
  • Liquid filled design for superior resistance to shock, vibration, and the elements.
  • Gauge kit includes, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • Gauge threaded for -4AN, allowing an easy installation into the fuel system
  • No electrical system required for gauge operation - compatible with every street or race vehicle
Ships With
  • 3245
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


Rated 5 out of 5 by from holds up in the severe high vibration of JR Fuel d holds up in the severe high vibration of JR Fuel drag racing. does weep some of the oil from inside the gauge.
Date published: 2020-06-21
  • y_2022, m_12, d_8, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_5412, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_autometer-us
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 68.18ms


Just bought one of your 4412 with intent on running it on my daily driver. Outside the cab. Did not know that it was not waterproof. I guess i will eat that guage. My question is this liquid filled gauge waterproof/freezeproof. Thanks....

Asked by: cooter355
Yes, the liquid filled gauges, like the 5412, would be 100% sealed and ideal for outside mounting/exposed to the elements. No issues with freezing. The liquid is silicone and you will have no gauge issues above -50 degrees
Answered by: Matt from AutoMeter
Date published: 2022-02-18

looking for a fuel pressure isolator compatable with methanol. Do you offer one. No place to mount gauge outside cabin. Need isolator to run it inside cabin. Thanks

Asked by: djohnson
Please reach out to our Tech Support Team via email at with your request and let us know if this is a carbureted or fuel injected application.
Answered by: Sarah from AutoMeter
Date published: 2021-12-28
