Product
3228
LINE, BRAIDED STAINLESS STEEL, #4 DIA., 6FT. LENGTH, -4AN AND 1/8" NPTF FITTINGS
$97.07
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns
Quick Specs
- Instructions: Download PDF
DESCRIPTION:

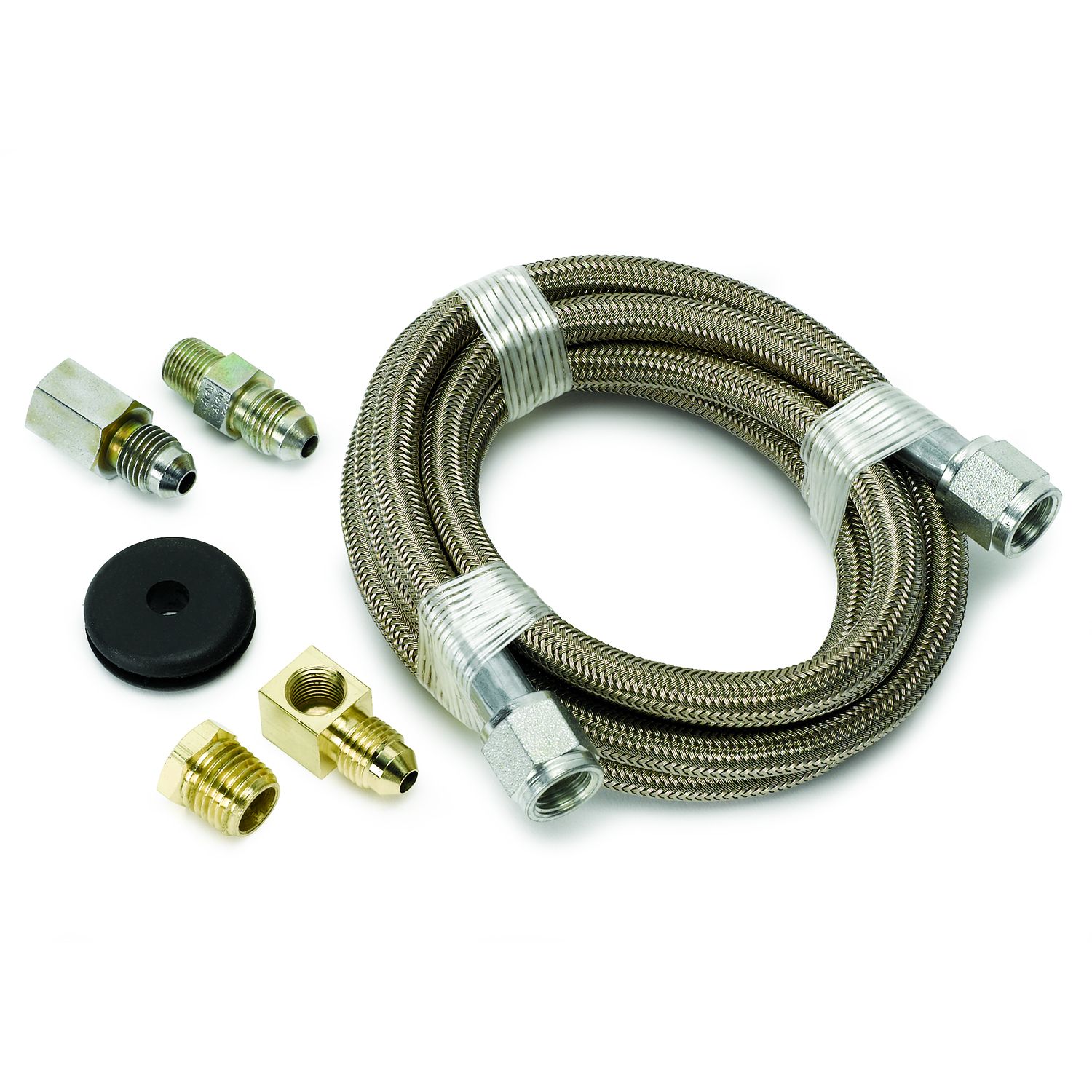

Includes 6ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
Feature Points
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
- 6ft hose length
- PTFE lined hose, resistant to most fluids
- Type 304 Stainless braid
- Maximum Operating Pressure - 3000 PSI
- Burst Pressure - 12,000 PSI
- `-65 °F to 450 °F Operating Temperature Range
- Includes 1/8"NPT male to -4AN female straight, 1/8" FPT Female to -4AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -4AN to 1/8" NPT female 90 degree fittings
Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov
REVIEWS:
QUESTIONS:
will this AN kit work with 4322 oil pressure gauge. If not what would you recommend?
This braided hose kit comes with the correct adapter to mate up with the fitting on the 4322.
Date published: 2025-01-07
Braided line kit will not mount/attach to back of my AUTO GAGE oil pressure gauge. Is there an available fitting OR Is the braided line a direct hookup to the AutoMeter #3321 oil pressure gauge. Thanks Mike
The braided line kit is not designed to work with the AutoGage units. As for the gauge #3321, the threads are also not able to accommodate -4AN which is why we supply the male adapters in the kit. These are threaded for 1/8-27 NPT for the threads on your gauge. For further assistance please give our technical support a call at 866-248-6356.
Date published: 2024-12-19
will this work with the auto meter 2397
This will not work with AutoGage.
Date published: 2024-11-11
Will this work for 2612 guage in a diesel applixation undee 80 psi
Yes, this will work with that unit.
Date published: 2023-12-07
Hello! In the picture for the line kit #3228. ALL i need is a PAIR of the fittings pictured lower right. the 1/8" pipe female to -4 male, 90 degree! Im working in side your mounting cups and cant find that fitting ANYWHERE but here. PLEASE HELP
https://www.autometer.com/for-pressure-gauges-5134.html
3271 is what you need.
Date published: 2022-08-26
Will this line work with the 3421 Mechanical oil pres. gauge. Is everything I need with this kit. I am installing it on a 1969 Olds 442. Jack
Hi Jack,
Yes, this kit will include everything you need to adapt to a 3421 and to your 1996 Olds. Barring any tight clearance issued on the engine that may require a 90 degree fitting. That would be rare though.
Thank you,
Matt
Date published: 2021-12-09
Will this kit fit the Product # 5421?
Thank you for your inquiry. This braided hose kit comes with correct adapters for use with the 5421 oil pressure gauge.
Date published: 2019-09-22
Need more good advice. Will the #3228 Braided -4AN line be a good upgrade for the #5921 ES full sweep mechanical oil pressure gauge ? The high temperature rating is needed and it would look great too. Thank you.
Thank you for your question. Yes, that is what I would recommend. It will work just fine and is an excellent upgrade for your line.
Date published: 2019-01-10
