Quick Specs

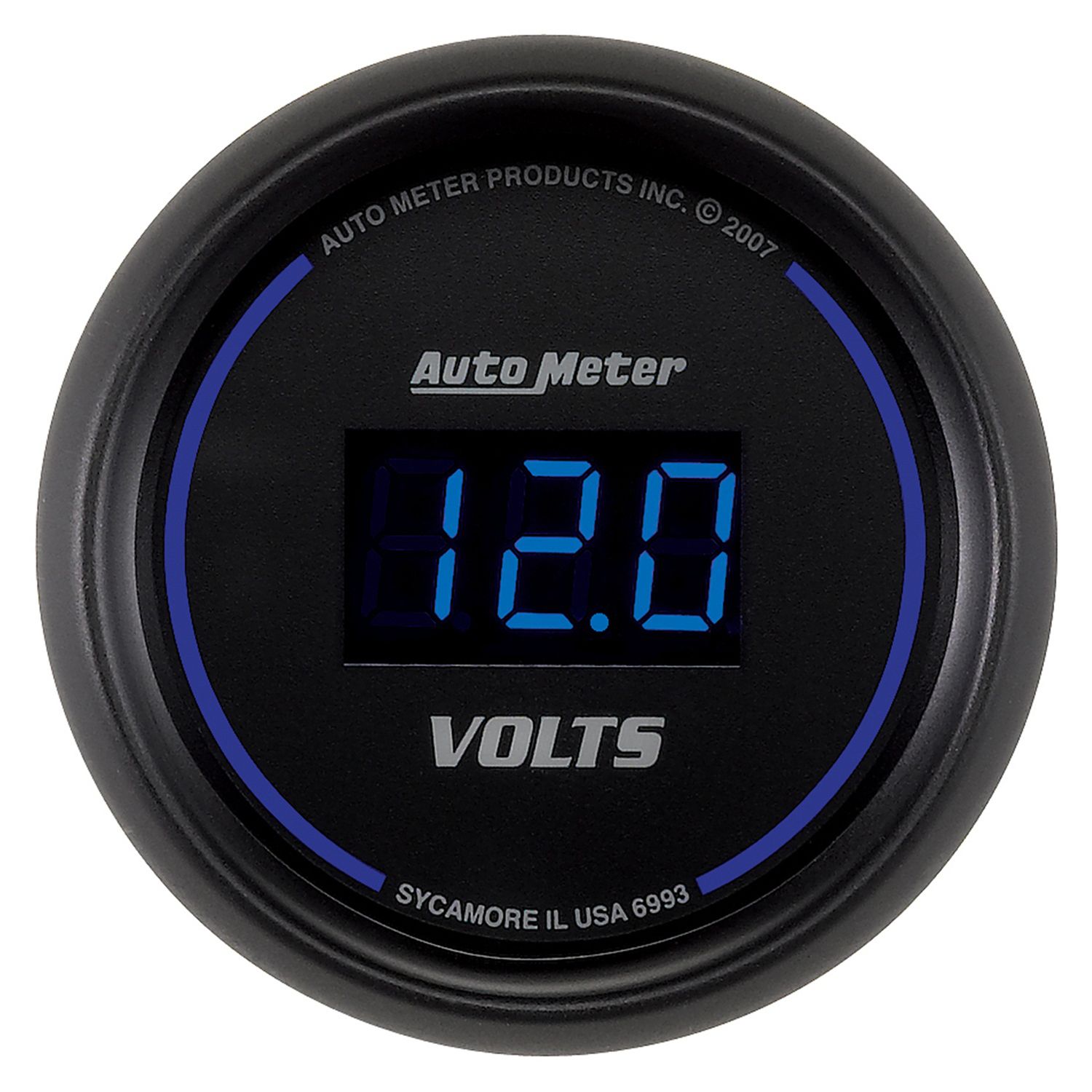

Keep tabs on the health and output of your vehicles electrical system safely and accurately with AutoMeter’s ultra precise Digital Voltmeter. With precise resolution down to a tenth of a volt, this gauge operates anywhere from 8-18 volts on negative ground electrical systems. A direct plug in wiring harnesses included for ease of installation.
Feature Points
  • Features AutoMeter's E-Z View Digital LED Display System which maximizes readability and minimizes distracting high speed digit changes
  • Gauge kit includes wiring harness, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Registers voltage down to a tenth of a volt
Ships With
  • 2230
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 71.98ms
  • bvseo-msg: HTTP status code of 404 was returned;


So we bought cobalt digital volt gauge showing it was compatible 16v, and good 8-18 volts, have you ever considered that a charging system on a 16v system will go above 18 volts and shut the gauge off. It should have a higher tolerance……just my opinion.

Asked by: Colbat
This gauge is designed for standard 12 volt automotive systems which have a typical charge voltage of 13.6 volts. You are correct that a 16 volt system with an alternator will likely exceed the upper range of this gauge.
Answered by: Jim from AutoMeter
Date published: 2023-06-19

Hello, I bought a A/M Volt Meter PN#6993 and i am unsure where to wire the Positive to. The instruction say to wire it to 12volt ignition switch, is it ok that my ignition switch circuit comes from the main wiring from the battery via a 60amp fuse?

Asked by: VICTOR Sakariss
Thank you for your question. Yes, that is ok. As long as you are using a 12v power source, the voltmeter will work fine.
Answered by: Zach from AutoMeter
Date published: 2019-02-21

Does this come in green

Asked by: Baloo
Thank you for your question. No this gauge does not come in green. It is only available in Blue.
Answered by: Zach from AutoMeter
Date published: 2019-02-21

running at the salt flats without an alt so just hook up to battery to see how much volt I use per run. Elec water pump, fans, fuel pump, and inaction of ford 4.6 turbo 5245 HP will digital vm help?

Asked by: fits
Answered by: Desperadojmo
Date published: 2018-11-26

Are the digital gauges waterproof? I want to use them on a boat

Asked by: Jbwil
Thank you so much for contacting us. AutoMeter digital gauges are not water proof and will be damaged if they get wet. You'd want to look at our Marine line of gauges for use in a boat: Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-05-29

we installed one on our , we run at nite and lite is to bright do u have a dimmer for this unit

Asked by: boat
Thank you for the question. You must have the gauge power (red wire) separate from the white illumination wire, but you can dim with our 9114 Dimmer Module through the gauge's illumination wire (white).
Answered by: Matt from AutoMeter
Date published: 2018-03-29

I'm using the digital votmeter on my motorcycle. Do I have to wire it to the ignition switch or can I just wire it to an on/off switch?

Asked by: Mad Max
