Product
4352

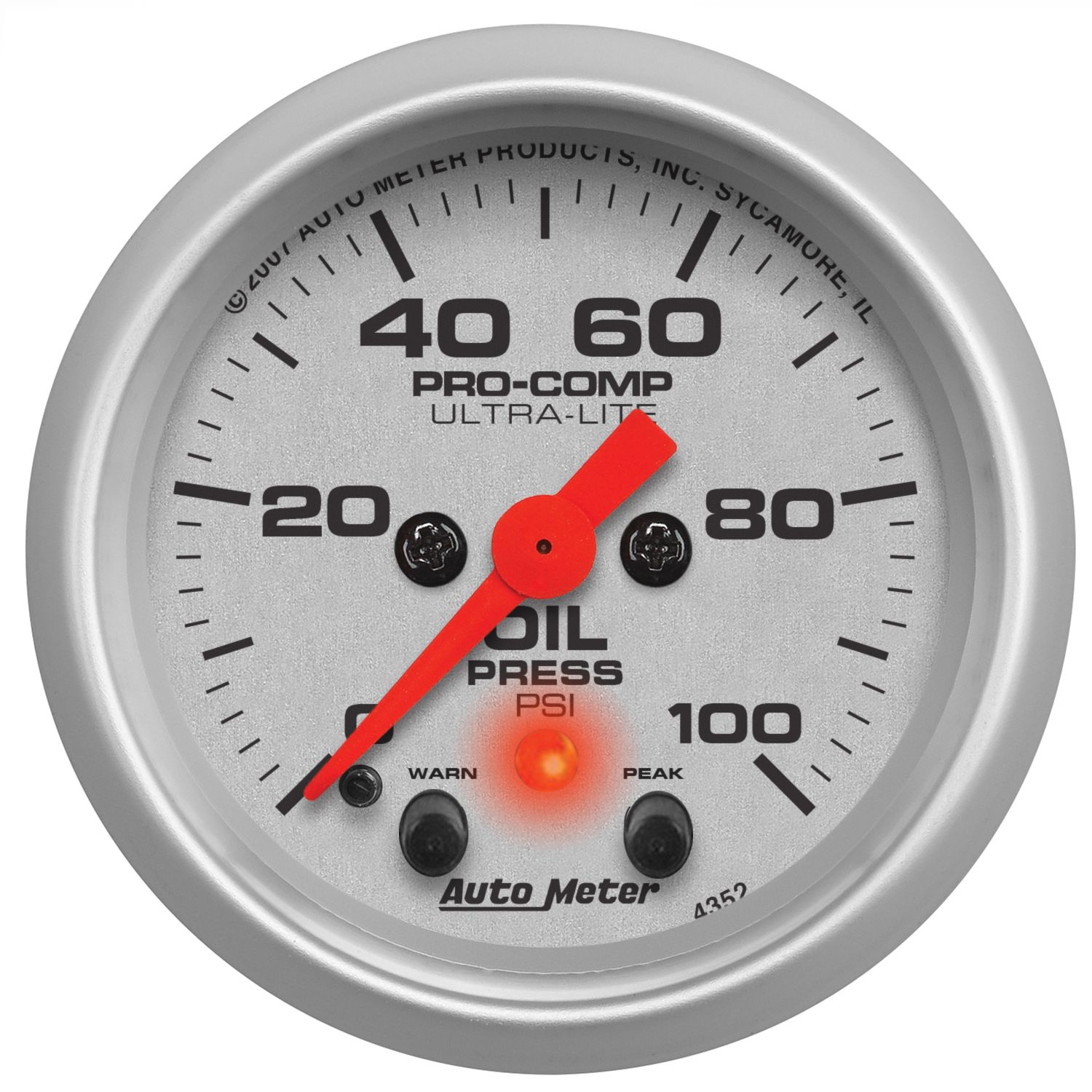

2-1/16" OIL PRESSURE, W/PEAK & WARN, 0-100 PSI, STEPPER MOTOR, ULTRA-LITE

$272.33
Shipping in 5 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

  • Size:2-1/16" (52.4mm)
  • Type:Digital Stepper Motor
  • Range:0-100 PSI
  • Lighting:Incandescent
  • Instructions: Download PDFDownload PDF

DESCRIPTION:

The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter’s Digital Stepper Motor Oil Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won’t find anywhere else. Peak value recall and a configurable warning point help you to keep your eyes on the task at hand. Our advanced 1/8” NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. A direct plug in wiring harness is also included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Gauge kit includes 1/8” NPT stainless steel pressure transducer, 1/4" NPT adapter, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Acquire data for later review with one-touch Peak Recall functionality
  • Set a custom alert specific to your vehicle & receive warning notification to highlight the need for driver attention
  • Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
  • AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
  • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Ships With
  • Includes Sending Unit: 2246
  • 3/8" NPT and 1/2" NPT adapter fittings
  • Wire Harness: 5227
  • 2230
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

REVIEWS:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 40.36ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

QUESTIONS:

Hi there.  On there wiring diagram it shows the grey cable being a 5v reference power.  if I need to use a resistor from a 12v circuit what size resistor should I be using. Cheers

Asked by: Ads71torana
Thank you for connecting with us. It sounds like you're referencing the pin-out diagram. The 4352 Oil Pressure harness includes that gray wire and the 5V reference power for the sender is actually provided from the gauge itself. You won't have to worry about providing that 5 volts.
Answered by: Matt from AutoMeter
Date published: 2024-05-13
