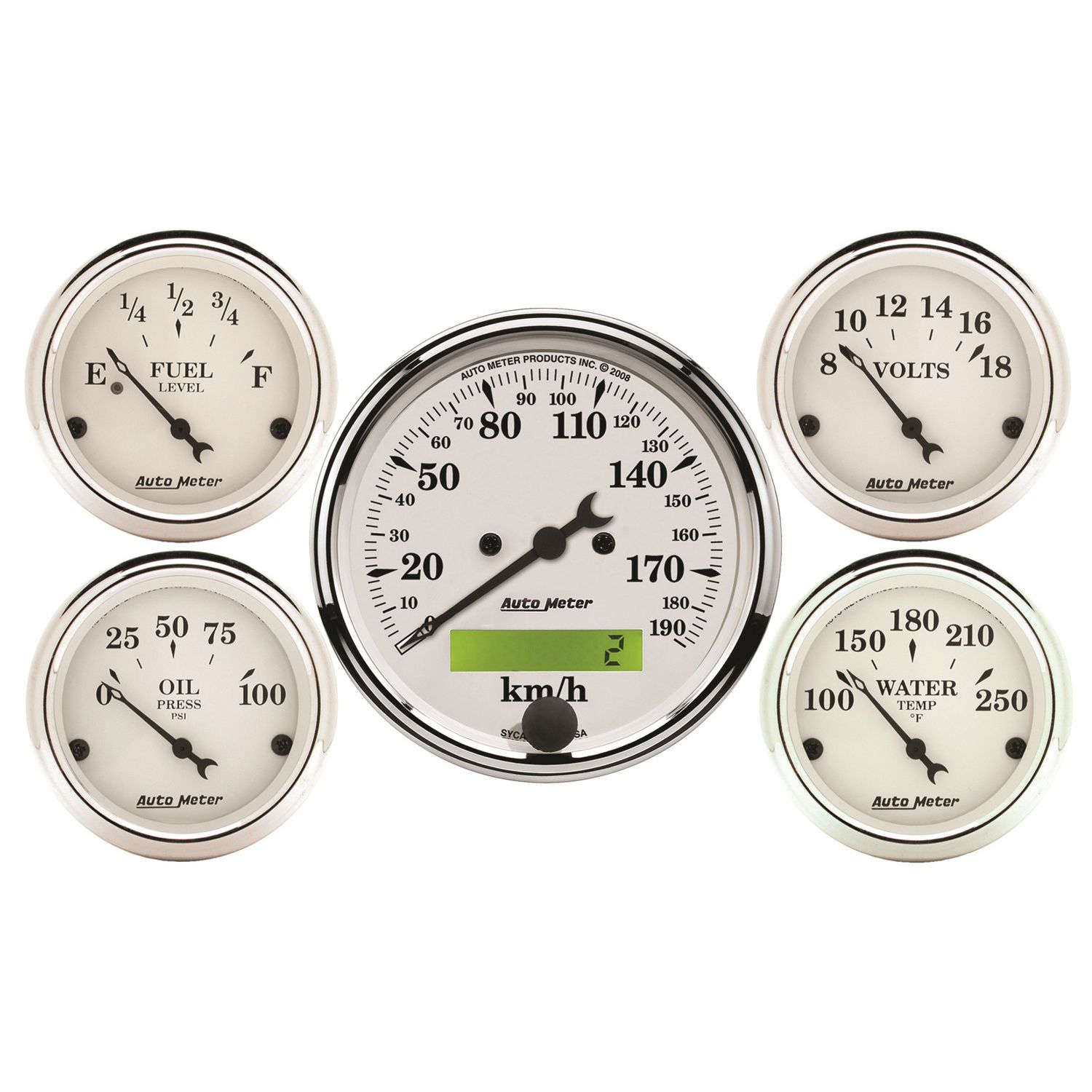

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
- ADDITIONAL NOTES
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD), sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
- SHIPPED WITH
- Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - 5293 VSS Sensor
- 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings.
Bulb & Socket
- 3212 & 3220
- Red 3214 & Green 3215
- Brackets Included
Hi there I’m interested in buy this kit but I was wondering if it will work on an LS1/4L80 swapped 1978 Chevy C10. Also , I want the tachometer as well . Thanks Thank you for your question. Yes, these gauge are compatible. I would recommend getting our #5284 LS install kit to get the necessary adapters and fitting to install the gauges on an LS application. The matching tach is #1695Date published: 2019-05-15
