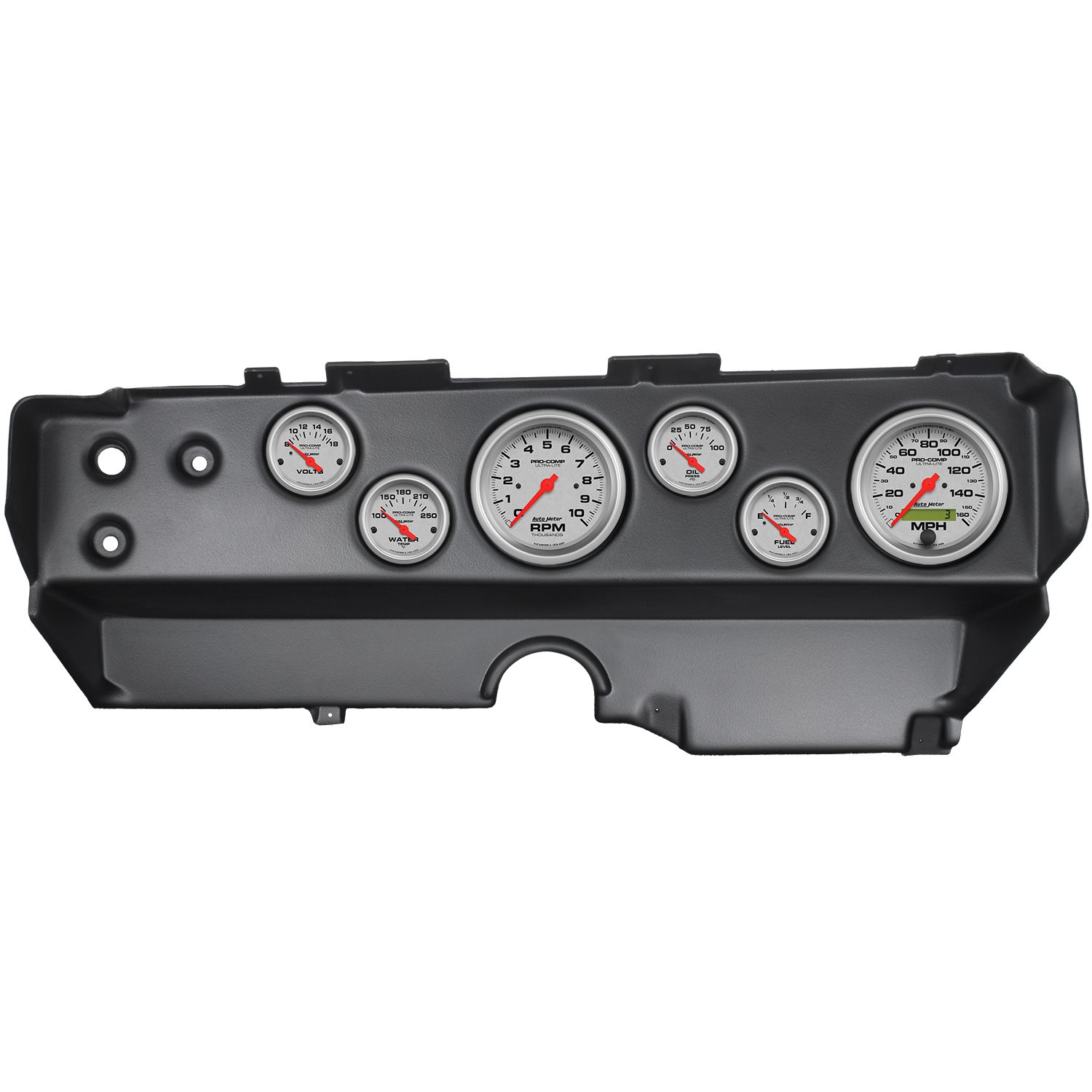

6 GAUGE DIRECT-FIT DASH KIT, E-BODY / CUDA / CHALLENGER 70-74, ULTRA-LITE

6 GAUGE DIRECT-FIT DASH KIT, E-BODY / CUDA / CHALLENGER 70-74, ULTRA-LITE

Product # 7029-UL
$1,164.95

OR
  • Kit 3-3/8" & 2-1/16" (Kit 85.7mm & 52.4mm)
  • Air-Core Air-Core
  • 8K RPM/160 MPH/100 PSI/100-250 °F/8-18V/73ΩE-10ΩF (NON-LINEAR)
  • Incandescent
  • Download Download Download
  • Ships in 2 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description

Outfit your classic muscle car or truck with AutoMeter direct-fit gauge kits that provide a custom performance instrument solution without the custom fab price! This easy-to-install kit includes a set of 6 iconic AutoMeter gauges, all the necessary hardware for mounting, and a universal wiring harness,

• Complete, direct-fit gauge packages featuring AutoMeter’s most popular gauge designs for the most popular muscle car and classic truck applications
• Tach, Speedo, Oil Pressure, Water Temp, Fuel Level and Voltmeter with all necessary sending units included
• Universal wiring harness with indicator lights also included

ADDITIONAL NOTES

Feature Points

  • Includes 3-3/8" Ultra Lite electric speedometer & tachometer and 2-1/16" electric fuel level (73/10 ohm, non-linear), water temperature, oil pressure, and voltmeter
  • Kit contains universal 6 gauge wire harness, electric speed sender, 1/8" NPT water temp & oil pressure senders with 1/4", 3/8" & 1/2" NPT adapter fittings, LED lighting dimmer, 3 optional LED indicators (2 green, 1 amber), and installation instructions 3
  • Track your engine's vitals in real-time with highly responsive and accurate electric air-core gauges from AutoMeter
  • Direct fit replacement dash with black textured finish - no cutting or modification of original dash required
  • Includes cutouts where applicable for factory accessory controls, air vents, & radio
  • Rugged, durable, and paintable thermoformed ABS plastic dash panel
SHIPPED WITH

Sending Units

  • Oil Sender 2242 - Water Sender 2258 - VSS Sensor

Adapter/Fitting

  • 1/4", 3/8", 1/2" NPT

Wire Harness

  • 2198

Mounting Hardware

  • Brackets Included
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 72.57ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

On the lower left of this I have A/C heater controls and on the lower right I have a radio. Is there a way to mount these. I know I can cut a hole but the heater controls have a mount I think. Thanks

Asked by: Anonymous
Thank you for your question. Please give our tech line a call at 866-248-6357.
Answered by: Steve from AutoMeter
Date published: 2019-11-25
