In stock

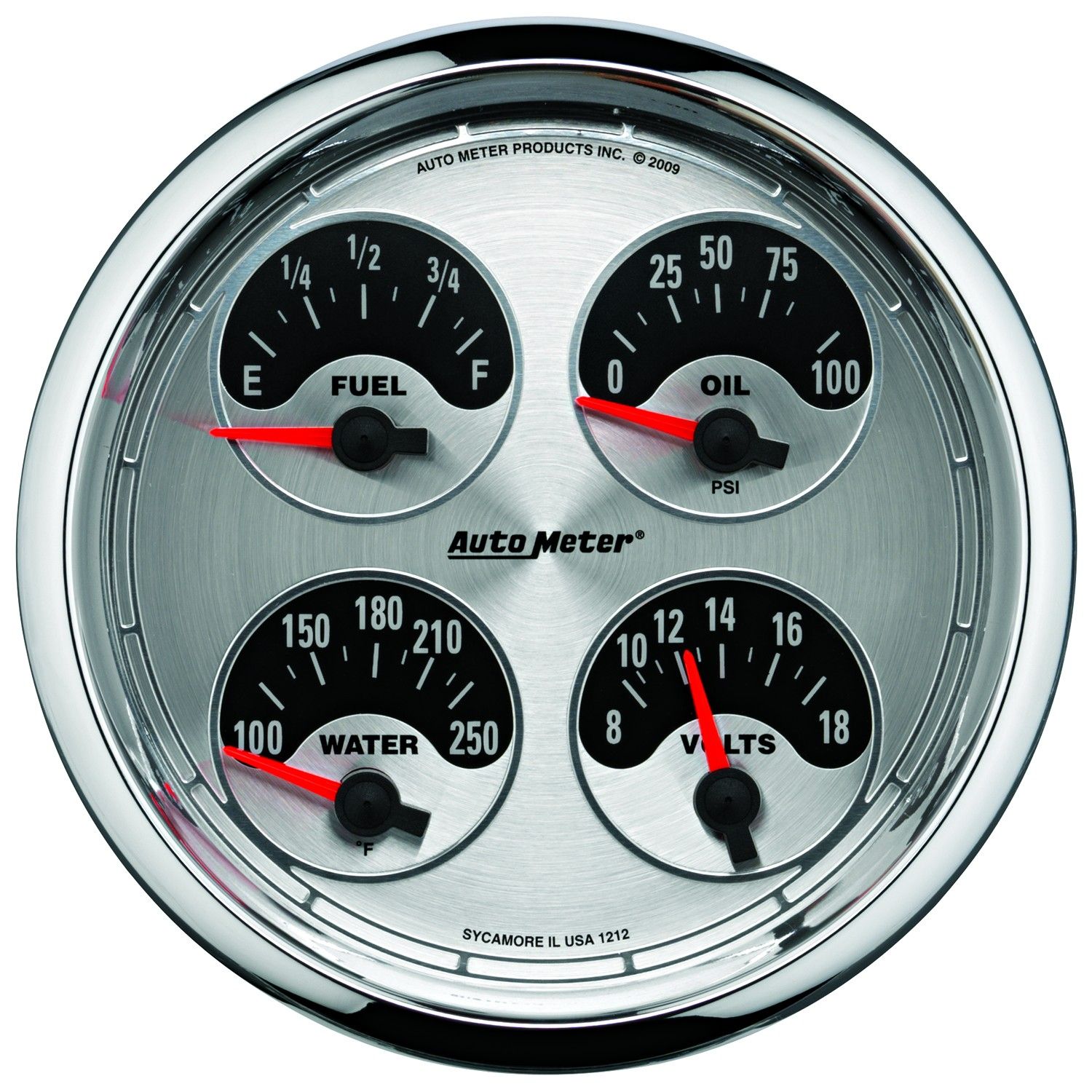

5" QUAD GAUGE, 100 PSI/100-250 °F/8-18V/0-90 Ω, AMERICAN MUSCLE

Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

  • Size:5" (127mm)
  • Type:Air-Core
  • Range:100 PSI/100-250 °F/8-18V/0ΩE-90ΩF
  • Lighting:LED
  • Instructions: Download PDF


Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).
Feature Points
  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
Ships With
  • Includes Sending Unit: Oil Sender 2242 - Water Sender 2258
  • 3/8" NPT and 1/2" NPT adapter fittings
  • Bracket Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 58.13ms
  • bvseo-msg: HTTP status code of 404 was returned;


What is the difference between gauge #1225 and gauge #1212.

Asked by: kenworth
P/N: 1225 uses a 0-90ohm fuel level gauge. P/N: 1212 uses a 240-33ohm fuel level gauge.
Answered by: Steve from AutoMeter
Date published: 2024-02-09

Will American Muscle quad setup work in my 1969 Chevelle stock dash with astro no air? wish to have speedometer/tachometer on left side and oil,volts,temp.and fuel on right side?

Asked by: Grassy
This would be a universal 5" gauge that would fit in a 4-5/8" in dash hole. This will work with your engine, and we do have several Chevelle mounting solutions available.
Answered by: Thomas From AutoMeter
Date published: 2022-04-14

Is this availability in metric for Australia

Asked by: David’s
David, Thank you for your question. Unfortunately this gauge is not offered in that style. For further assistance please give our tech line a call at 815-895-8141.
Answered by: Steve from AutoMeter
Date published: 2019-10-29

Hi will.this fit on my 51 Chevy truck Im doing update to my truck 350 with Auto trans the hole nine yards. So Im goi g to need the speedometer and 4 Quad gauge. Thanks.

Asked by: Big foot
Thank you so much for contacting us. The factory dash openings in your truck are very slightly larger than the gauges are. We offer this adapter kit that will allow you to drop them right into the factory locations without any modification: Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-06-19

As a follow up to my earlier question, I believe I found one of your smaller dia 4 in one gauges with an available pod. If so can you direct me to it. Jim

Asked by: Watersmeet
Thank you so much for contacting us. Here is a link to the available 3-3/8" quad gauges in our lineup: We also have the ability to customize them via the AutoMeter Custom Shop: You would be able to place them in one of these two cups: Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-06-11

Is there a pod and mounting bracket for the same available? Jim

Asked by: Watersmeet
Thank you so much for contacting us. Unfortunately, AutoMeter 5" in-dash gauges are designed only to be mounted in the dash. We do not offer a mounting pod that would be compatible. Sorry for the bad news.
Answered by: Joseph At AutoMeter
Date published: 2018-05-14

What size hole will this need to fit? How does it mount?

Asked by: Daveer
Thank you so much for contacting us. This gauge fits into a 4-5/8" hole. Hope this helps!
Answered by: Joseph Mills
Date published: 2017-12-19
