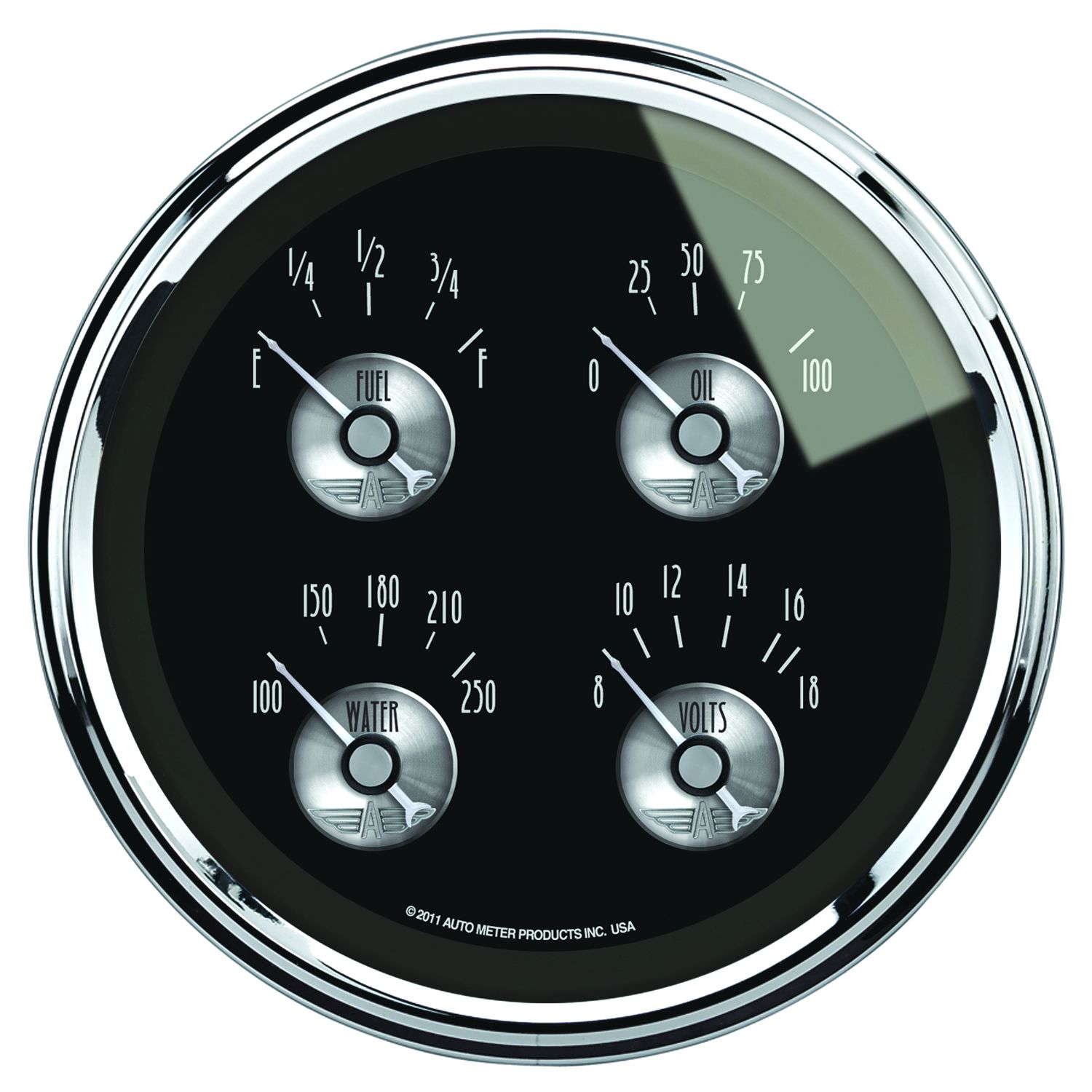

5" QUAD GAUGE, 100 PSI/100-250 °F/8-18V/0-90 Ω, PRESTIGE BLACK DIAMOND

$312.95
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

Description:

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).

Quick Specs

  • Size:5" (127mm)
  • Type:Air-Core
  • Range:100 PSI/100-250 °F/8-18V/0ΩE-90ΩF
  • Lighting:LED
  • Instructions: Download PDF
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).
Feature Points
  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
Ships With
  • Oil Sender 2242 - Water Sender 2258 - VSS Senser
  • 3/8" NPT and 1/2" NPT adapter fittings
  • Bracket Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

REVIEWS:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 63.01ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

QUESTIONS:

Is there a place for turn signals in these gauges? I bought them for my 68 Camaro but i do not see any mention of location for indicators.

Asked by: Steve 68 ss
Thank you for your question. No, this gauge does not have the provisions for internal turn signals.
Answered by: Zach from AutoMeter
Date published: 2019-12-02

Is a pod or bezal for free standing mount available ? I don't want to cut the dash or hang it below. A pod would be best. Thanks Jim

Asked by: Watersmeet
Thank you for your question. Unfortunately, we do not have pedestal pods available for a 5" instrument.
Answered by: Zach from AutoMeter
Date published: 2019-08-28
