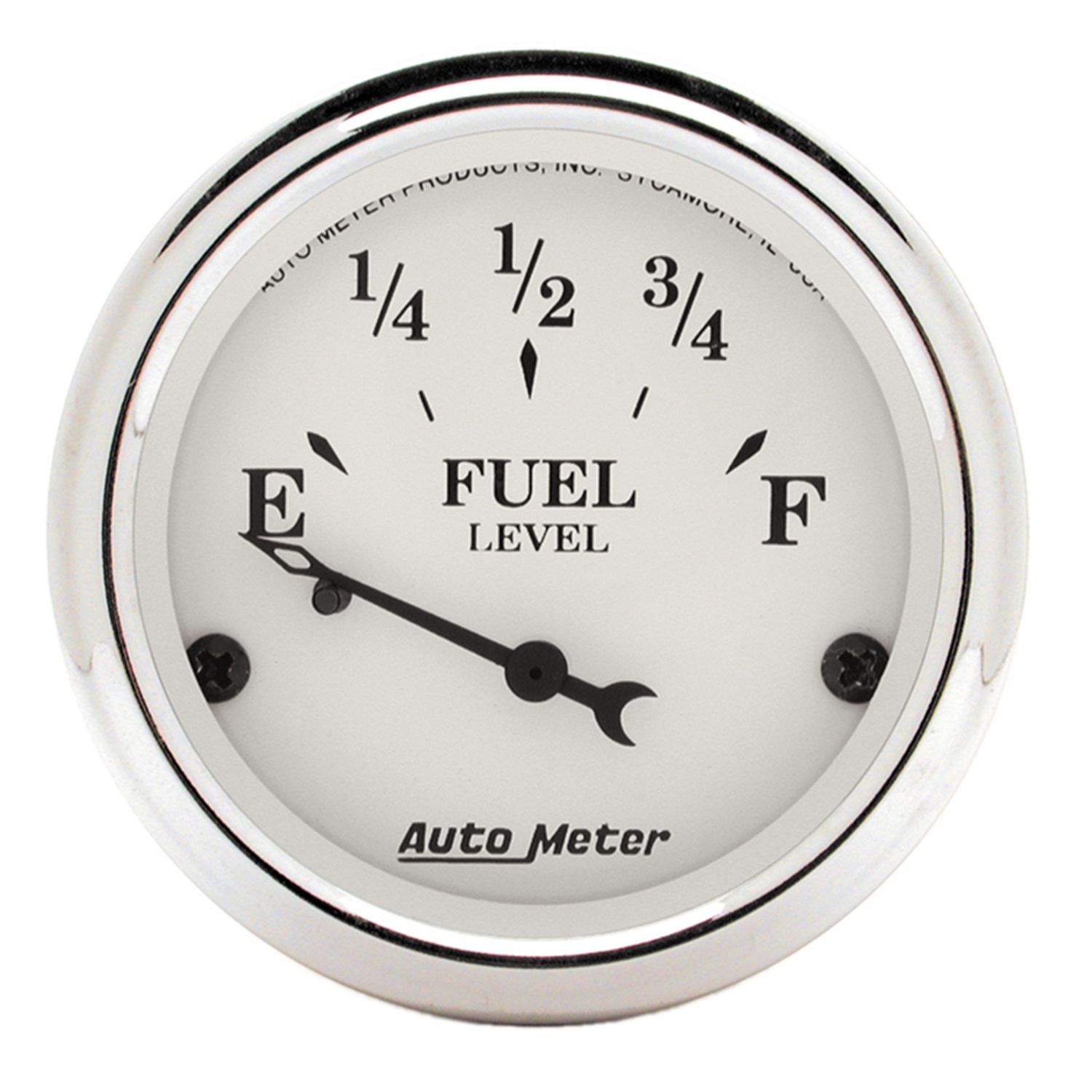

2-1/16" FUEL LEVEL, 73-10 Ω, AIR-CORE, OLD TYME WHITE

2-1/16" FUEL LEVEL, 73-10 Ω, AIR-CORE, OLD TYME WHITE

Product # 1605
$52.95

OR
  • 2-1/16" (52.4mm)
  • Air-Core Air-Core
  • 73 Ω Empty / 10 Ω Full (NON-LINEAR)
  • Incandescent
  • Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.

ADDITIONAL NOTES

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
SHIPPED WITH

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 2230
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 55.43ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

I have a 1971 Ford Bronc, I currently have a Attometer fuel Gauge in it but i always reads 3/4 of  tank, i think i have the wrong gauge. any suggestion would be greatly appreciated

Asked by: DPAC
just an update, after Further inspection i found the initial Autometer Fuel Gauge was not the correct one for the Vehicle. after ordering one for a Ford the gauge appears to be working correctly
Answered by: EEEE
Date published: 2018-02-24

The 1605 gauge is advertised at a diameter of 2 1/16 inch. What's the diameter of the gauge face?

Asked by: Todd
Hi Todd, thank you for connecting with us. 2-1/16" diameter is the hole size and the outer diameter of the bezel is 2-3/16". The actual face diameter or inner diameter of the bezel is 1-13/16".
Answered by: Matt from AutoMeter
Date published: 2018-02-07
