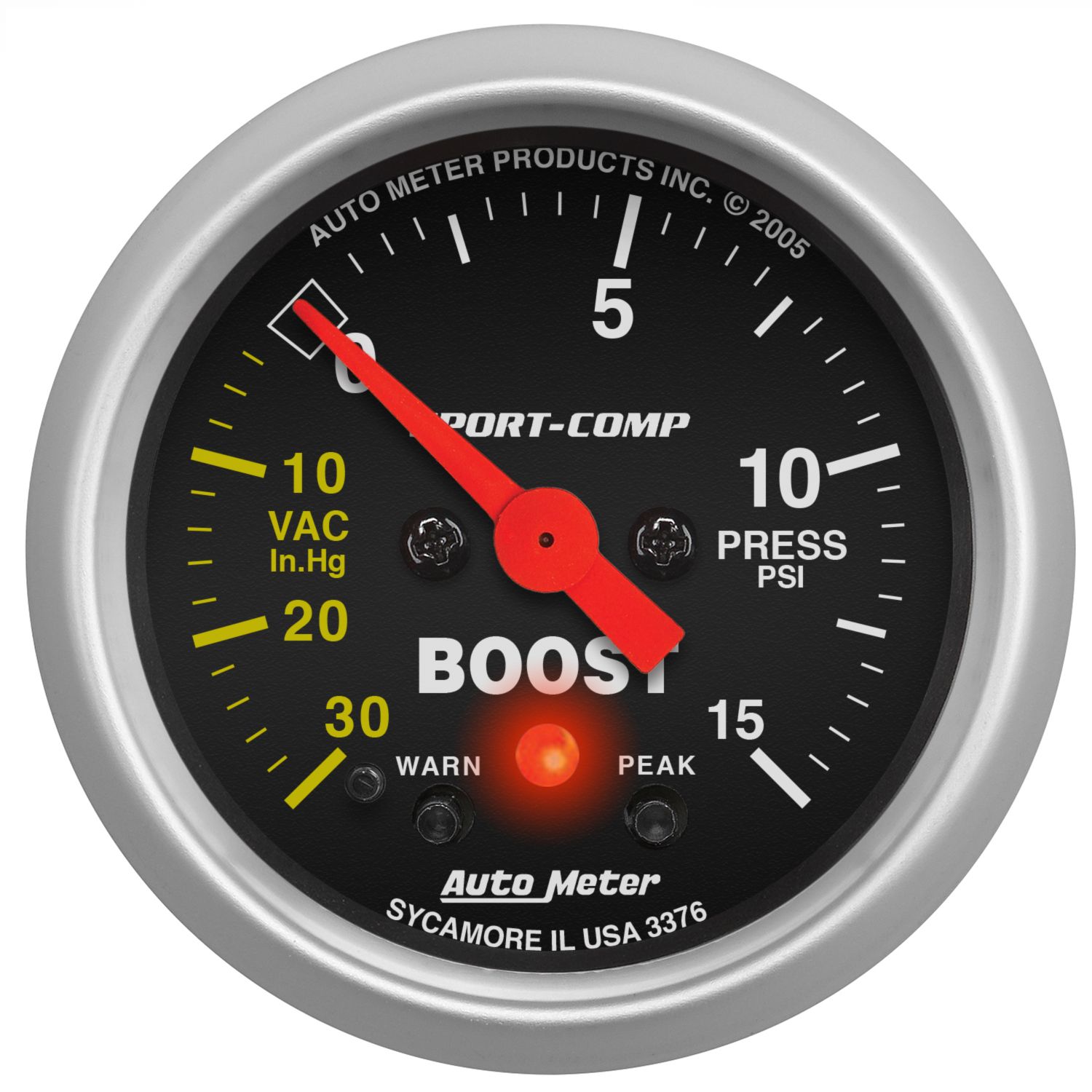

2-1/16" BOOST/VACUUM, W/ PEAK & WARN, 30 IN HG/15 PSI, STEPPER MOTOR, SPORT-COMP

2-1/16" BOOST/VACUUM, W/ PEAK & WARN, 30 IN HG/15 PSI, STEPPER MOTOR, SPORT-COMP

Product # 3376
$229.95

OR
  • 2-1/16" (52.4mm)
  • Digital Stepper Motor Digital Stepper Motor
  • 30 IN HG/15 PSI
  • Incandescent
  • Download Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description
Keeping track of the vacuum and boost on your forced induction application is critical for extracting the most power safely while keeping your engine in the powerband. AutoMeter’s Digital Stepper Motor Boost/Vacuum Gauges provide the most accurate eadings available, unparalleled response time and smooth needle movement. Taking advantage of AutoMeter’s advanced circuitry, these gauges automatically calibrate on every startup to compensate for altitude, barometric pressure and other atmospheric conditions. Includes an advanced MAP sensor and wiring harness for ease of installation. Designed for gasoline engines, a boost only version is also available for diesel or extreme boost applications.
ADDITIONAL NOTES

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Includes data acquisition grade solid-state MAP Sensor, providing unmatched accuracy and durability even in the harshest environments
  • Gauge kit includes MAP Sensor, T-Fitting, nylon tubing, vacuum fittings, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • Acquire data for later review with one-touch Peak Recall functionality
  • Set a custom alert specific to your vehicle & receive warning notification to highlight the need for driver attention
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
SHIPPED WITH

Sending Units

  • 2247

Adapter/Fitting

  • T - Fitting

Wire Harness

  • 5229

Tubing

  • 10 ft. nylon tubing

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 2230
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 61.6ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

I have this gauge in my car and the readings are off, I have tried changing out the MAP sensor with no luck is there a way to calibrate it or does it need sent in ?

Asked by: Tom W.
Hi Tom, thank you so much for contacting us. The easiest way to diagnose one of these is to remove power from the gauge while the vehicle is still running and plug it back in. The gauge does a calibration on every startup, but if power is cut or limited (as often happens on some electrical circuits to preserve current for the starter motor), it can throw off that calibration. If it starts to read correctly after doing that, you'll want to look for a different power circuit that does not drop out during crank. If the condition persists, we're more than happy to check out your gauge here at our shop. There's never any charge for diagnostic work. you can send us just the gauge head using this form: http://www.autometer.com/media/Service_Form.pdf Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-06-25
