In stock
Only %1 left


As low as $86.93
Shipping in 5 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

  • Size:2-5/8" (66.7mm)
  • Type:Mechanical
  • Range:0-100 PSI
  • Lighting:Incandescent
  • Instructions: Download PDF

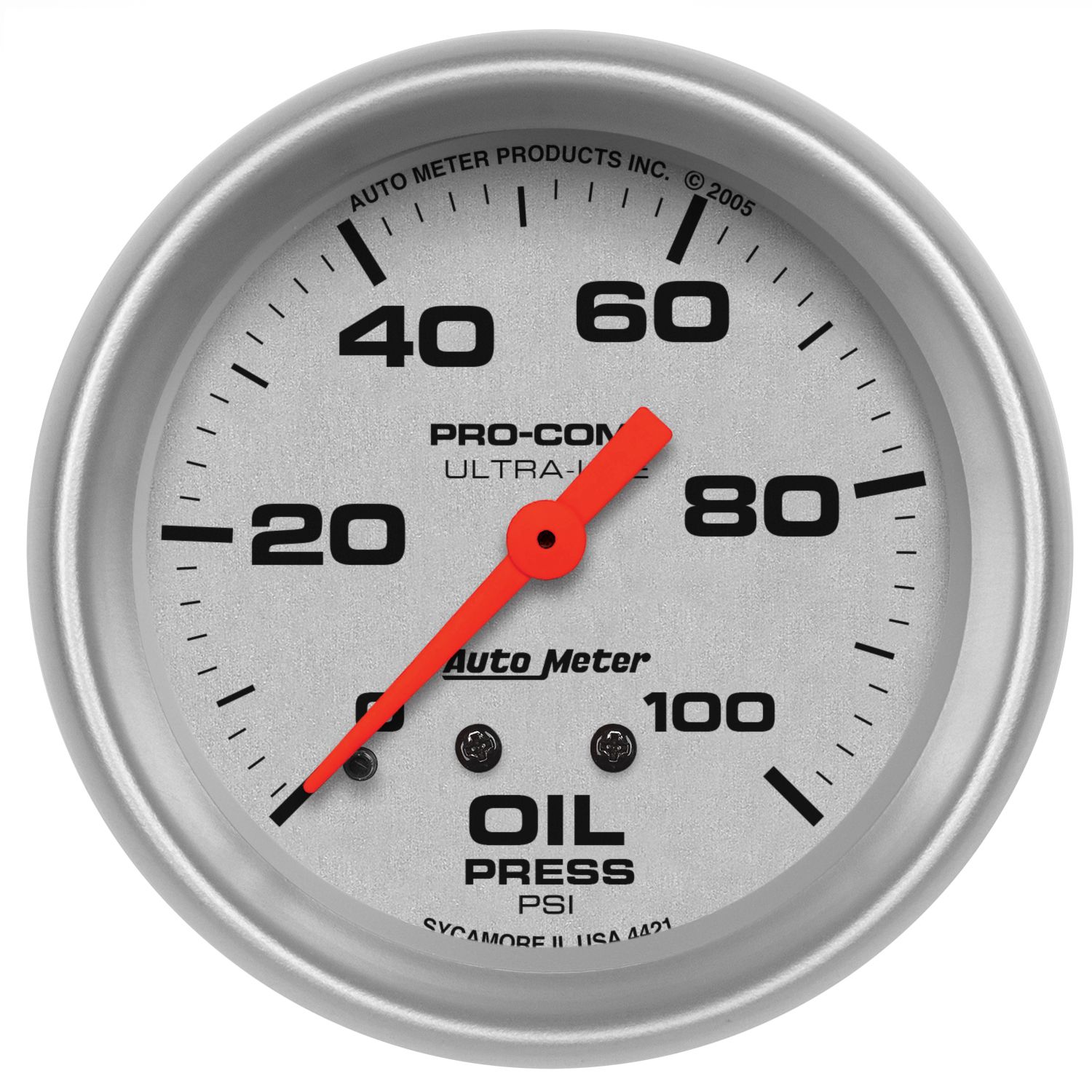

The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter’s Mechanical Oil Pressure Gauge utilizes the most advanced bourdon tube meter movement on the market to deliver accuracy and durability you won’t find anywhere else. A simple 1/8” NPT connection makes installation easy. Fittings and nylon tube are included and optional braided stainless line kits are available.
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Ships With
  • 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
  • 3245
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 10.05ms
  • bvseo-msg: HTTP status code of 404 was returned;


ultra-lite gauges can have different led lights as an option. Didn't years ago, the website had it if one picked a color light, the site would show it? Like to see gauges with color lights, to see what it looks like, the color green with white or black

Asked by: mitch1021
We used to have a custom shop website that allowed you to see different customizations, but that website is currently under reconstruction and not available. The only available photos of our gauges we have are the ones with standard lighting.
Answered by: Alex at AutoMeter
Date published: 2024-05-09

Was there was a clear visible difference between the the"new" Internal LED Lighted Models and the older style with the regular light bulb? I already purchased some of the bulb-types gauges and was concerned if the illumination will look inconsistent.

Asked by: MAG79
Thank you so much for contacting us. Ultra Lite gauges have retained a consistent appearance since their introduction. A new Ultra Lite gauge bought today will match perfectly with ones from years ago. The Ultra Lite II gauges are much different though. While they appear almost identical during the day, when they're lit, they look much different. I've attached a pic for reference. Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2023-05-26
