Product # 4452-SP

We are unavailable to find your ColorSwatch license file.

* Required Fields

  • 2-5/8" (66.7mm)
  • Digital Stepper Motor Digital Stepper Motor
  • 0-100 PSI
  • Incandescent
  • Download Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns

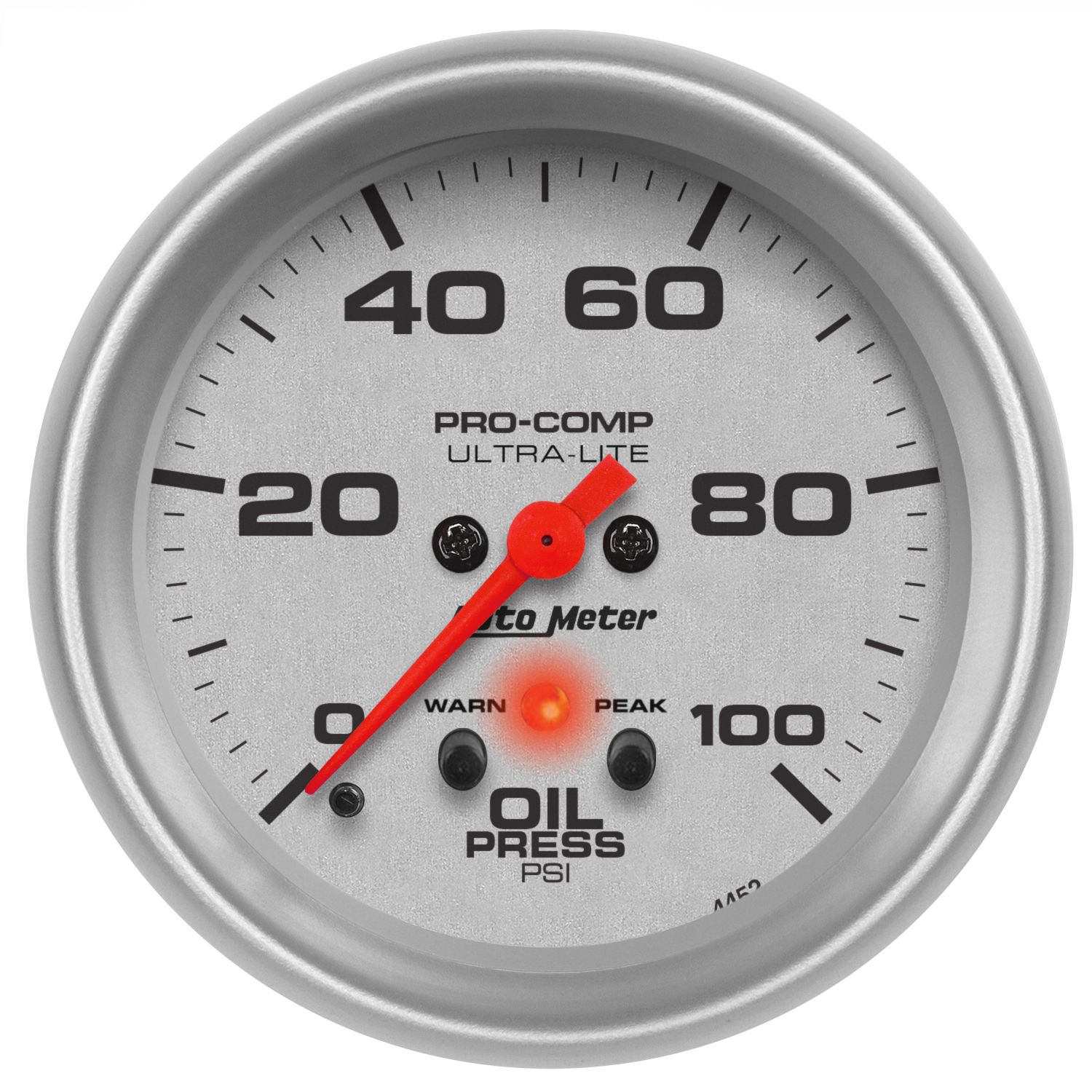

The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter’s Digital Stepper Motor Oil Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won’t find anywhere else. Peak value recall and a configurable warning point help you to keep your eyes on the task at hand. Our advanced 1/8” NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. A direct plug in wiring harness is also included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Gauge kit includes 1/8” NPT stainless steel pressure transducer, 1/4" NPT adapter, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Acquire data for later review with one-touch Peak Recall functionality
  • Set a custom alert specific to your vehicle & receive warning notification to highlight the need for driver attention
  • Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
  • AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
  • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up

Sending Units

  • 2246


  • 3/8" NPT and 1/2" NPT adapter fittings

Wire Harness

  • 5227

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 3245
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 192.83ms
  • bvseo-msg: HTTP status code of 404 was returned;

Is the warning set as a high or low warning ? i.e. warn if oil-pressure is BELOW a specific value or ABOVE ?

Asked by: Mike_in_denmark
Hi Mike, the warning point on the Ultra-Lite Oil Pressure is below. So if you set the warning at 15 psi, anytime the pressure is below 15 psi, the light will be on. Our Elite Series, which offers only 2-1/16" gauge options, will offer 3 regions for different colors; for example, 0-20 psi can be set for one color, while another color can be set for your operating range, then a different color for a high region.
Answered by: Matt from AutoMeter
Date published: 2018-07-26

Can you splice into the wiring harness to provide a larger warning light?

Asked by: KLawre2685
Thank you so much for contacting us. Unfortunately there is no output on this particular gauge, so there's no way to add a different warning light. There is a Pro Control output available on the Sport Comp II Oil Pressure gauge w/ warning and the Elite, SpekPro and STACK Pro Control gauges which can be used to supplement the existing warnings. It's worth mentioning that the Elite, SpekPro and STACK gauges all have full dial color change warnings rather than just a small light, which may make having an external warning a moot point. Hope this helps!
Answered by: Joseph Mills
Date published: 2018-03-20
