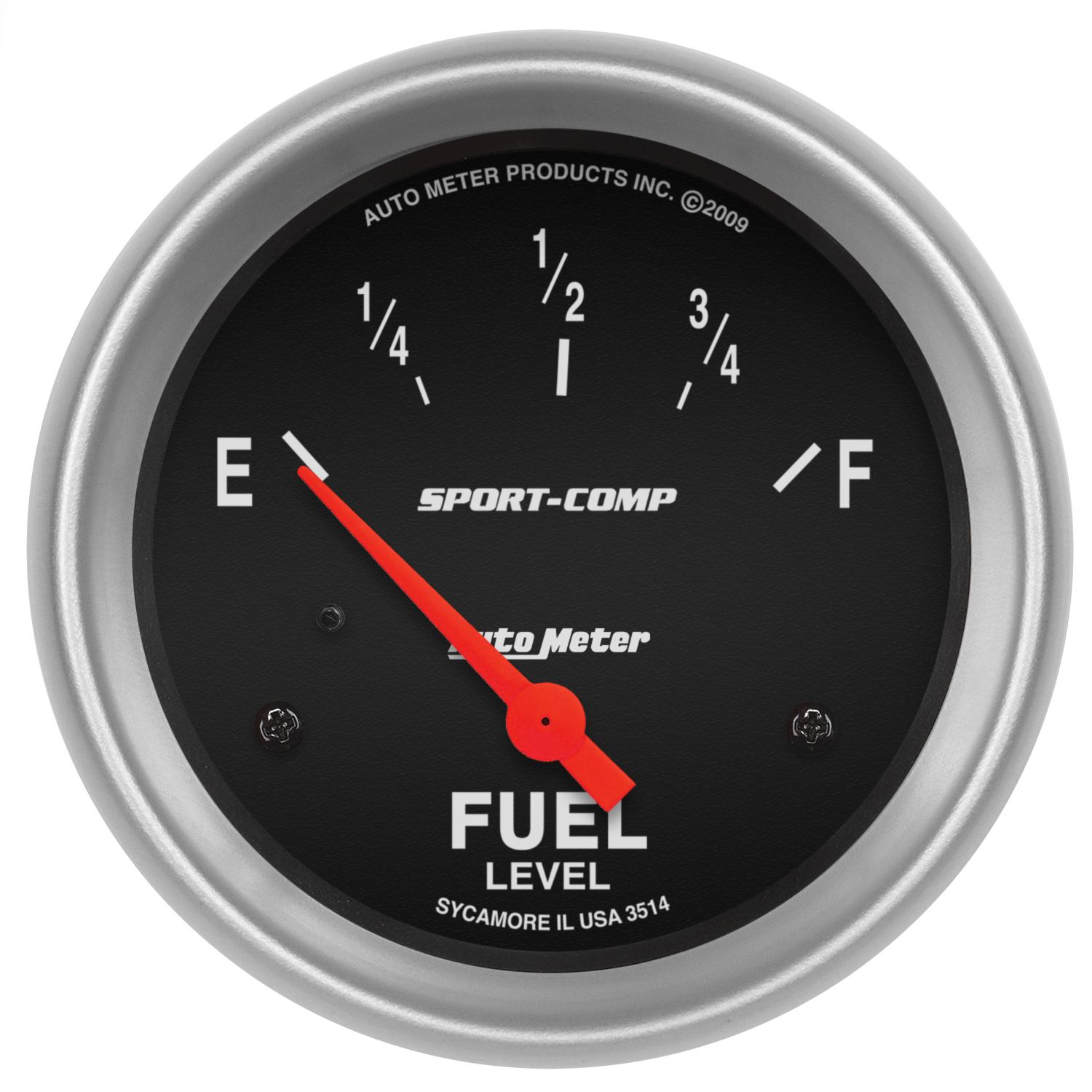

2-5/8" FUEL LEVEL, 0-90 Ω, AIR-CORE, SSE, SPORT-COMP

2-5/8" FUEL LEVEL, 0-90 Ω, AIR-CORE, SSE, SPORT-COMP

Product # 3514
$64.95

OR
  • 2-5/8" (66.7mm)
  • Air-Core Air-Core
  • 0 Ω Empty / 90 Ω Full
  • Incandescent
  • Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.

ADDITIONAL NOTES

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most 1965 to 1997 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
SHIPPED WITH

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 3245
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 167.28ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

How do I get this fuel have to work correctly on my 1979 Chevy k20 pickup? Do I need to upgrade or convert the sending units? I have this gauge wired to the factory sending units and it's way off!!

Asked by: Cduck99
Thank you for connecting with us. If your 1979 Chevy has a functioning sender it should read 0 ohms empty and 90 ohms full, which is fully compatible with the 3514 gauge. If the gauge is pegging full immediately upon power up, this is commonly due to an insufficient sender ground, in which the gauge will see infinite resistance across sender and ground. If this isn't the issue or if you're seeing a different symptom, this will require some additional troubleshooting with our Technical Support Team. Give us a ring at 866.248.6356, hit the Chat link at the top of the page or you can email us here: http://www.autometer.com/resources/index/ask_a_question
Answered by: Matt from AutoMeter
Date published: 2018-06-05

Hello, I have a 20-Gallon aluminum Fuel cell gas tank with a mechanical fuel level sending unit 0-90 ohm. Will this fuel gauge work? Regards, Gerry

Asked by: Gerry
Hi Gerry, thank you so much for the question. Yes, this is the correct fuel level gauge for a 0-90 ohm sending unit.
Answered by: Matt from AutoMeter
Date published: 2018-02-26
