Quick Specs

  • Size:2-5/8" (66.7mm)
  • Type:Air-Core
  • Range:0 Ω Empty / 90 Ω Full
  • Lighting:Incandescent
  • Instructions: Download PDF

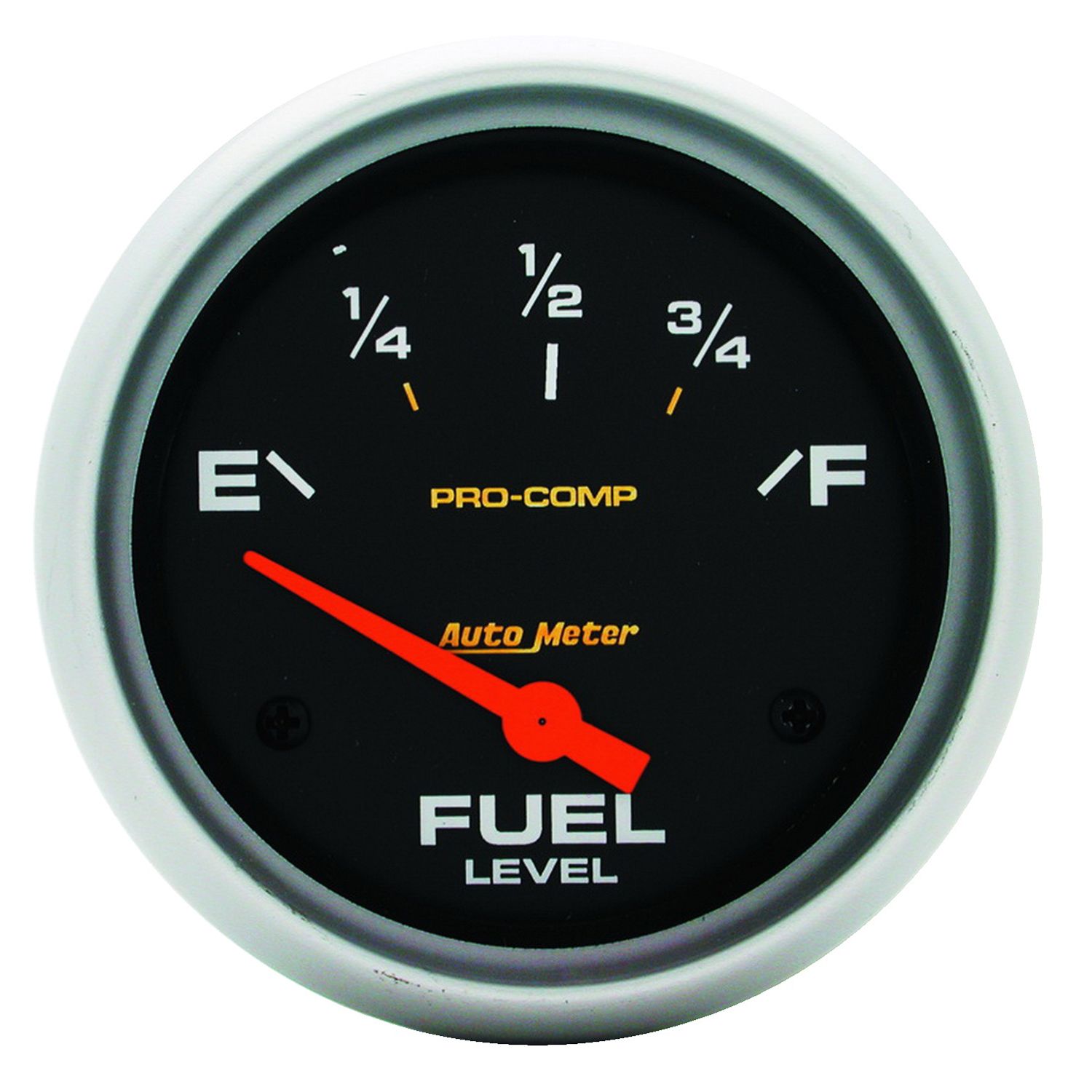

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.

Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most 1965 to 1997 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Ships With
  • 3245
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 70.01ms
  • bvseo-msg: HTTP status code of 404 was returned;


will this work with 0 to 95 ohms sending unit

Asked by: bobw
Officially it's spec'd for 0-90 ohms, though any difference would be negligible on a 0-95 ohm linear sender. 0-95 ohms isn't necessarily a standard sender that we're familiar with unless it's a GM sender that is reading slightly high at full.
Answered by: Matt from AutoMeter
Date published: 2022-02-14

hi guys, me again, can you change the ohms range on these fuel gauges. i have the 5415 but need the 5416 (i think)....possible? cheers Adem...

Asked by: Adem
Thank you for your inquiry. This process can be done at the factory. Please contact our Tech Support Team for further information:
Answered by: Jim from AutoMeter
Date published: 2020-03-31

hi gang, i have bought this gauge for my ride, being a 1970 holden, (GMH not GM), and it does not register over 'E' even though i know there is sufficient fuel in the tank. my ohms reading for my sender is 8 to 40, have i purchased the wrong gauge, cheers

Asked by: Adem
Thank you for your question. Unfortunately, this gauge is not going to work on an 8-40 ohm range. We do not have anything that will work with that range.
Answered by: Zach from AutoMeter
Date published: 2019-11-18
