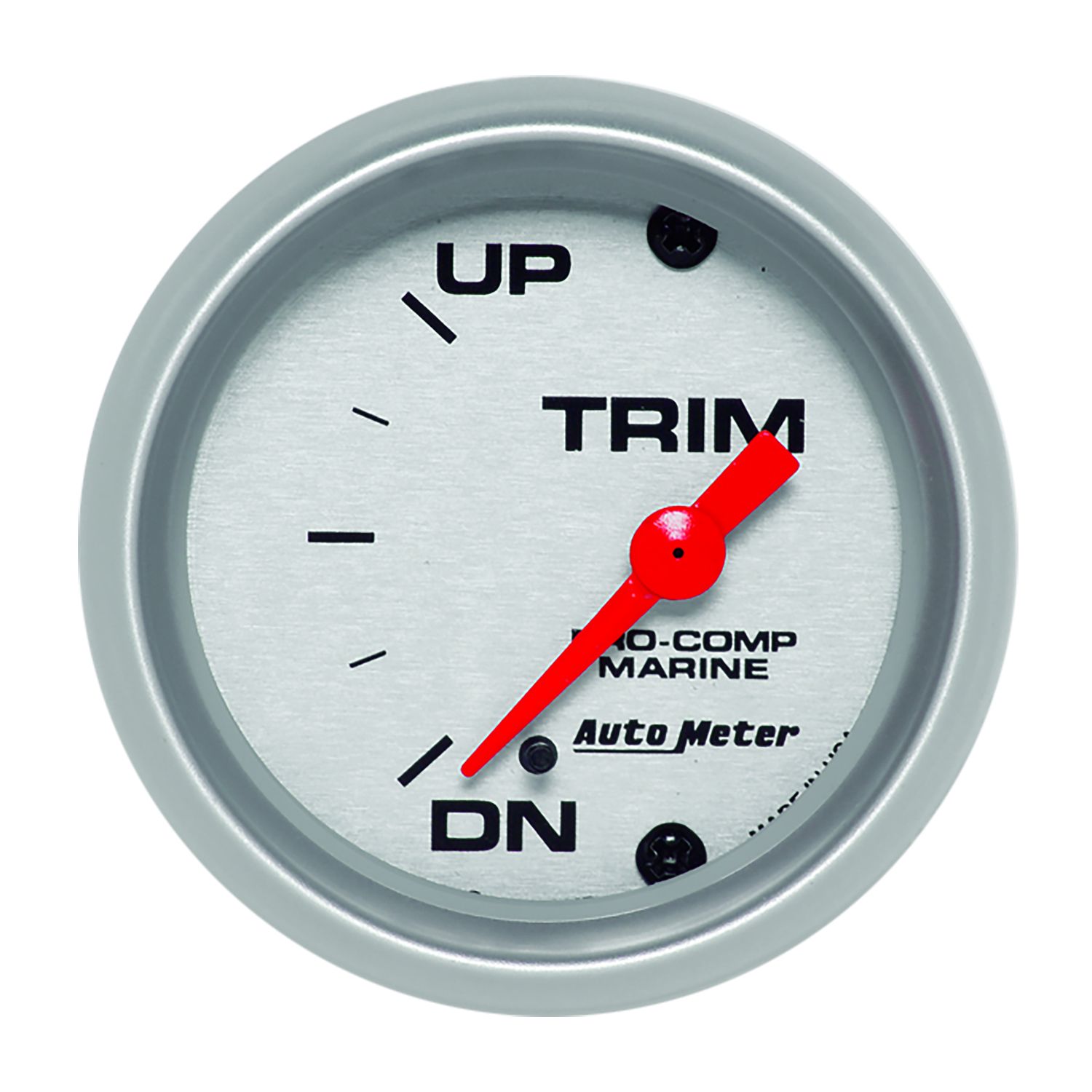

2-1/16" TRIM LEVEL, UP/DOWN, AIR-CORE, MARINE SILVER

2-1/16" TRIM LEVEL, UP/DOWN, AIR-CORE, MARINE SILVER

Product # 200766-33
$47.95

OR
  • 2-1/16" (52.4mm)
  • Air-Core Air-Core
  • Up/Down
  • Incandescent
  • Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description
The "attitude" of a boat in the water can be controlled to a large extent by "trimming" the outdrive/propeller unit in relation to the stern of the boat. As the drive is trimmed up, the prop exerts more force downward, causing the bow to lift out of the water. As the drive is trimmed down, the force is exerted more in line with the boat hull, resulting in the bow riding lower in the water. Depending on a given trim angle, you can see increased or decreased speed, fuel economy, comfort and control at a given prop RPM. The trim gauge connects to a resistance based sender in the pivot of the outdrive. This functions much like the sender in a gas tank, with the gauge measuring resistance of the sender from totally down/in to totally up/out. This allows the operator to adjust for conditions and load quickly and easily.
ADDITIONAL NOTES

Feature Points

  • Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
  • Works with 0 Ohm Down/90 Ohm Up trim level sending unit
  • 12 and 16 volt compatible, well-suited with nearly every marine electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
  • 12 month limited warranty
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
  • Traditional incandescent lighting illuminates around the perimeter of the dial
SHIPPED WITH

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 2225
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 69.46ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

How can I determine if this trim gauge will work correctly with my boat? I have no idea of the ohm's output of the sender on my outdrive.

Asked by: Doug R
Hi Doug, thank you so much for contacting us. Our Trim gauges are designed to read 0 ohms down and 90 ohms up, which is by far the most common scale out there. You can test your sensor using multimeter to see exactly where it reads, but chances are it is a 0-90. Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-01-02
