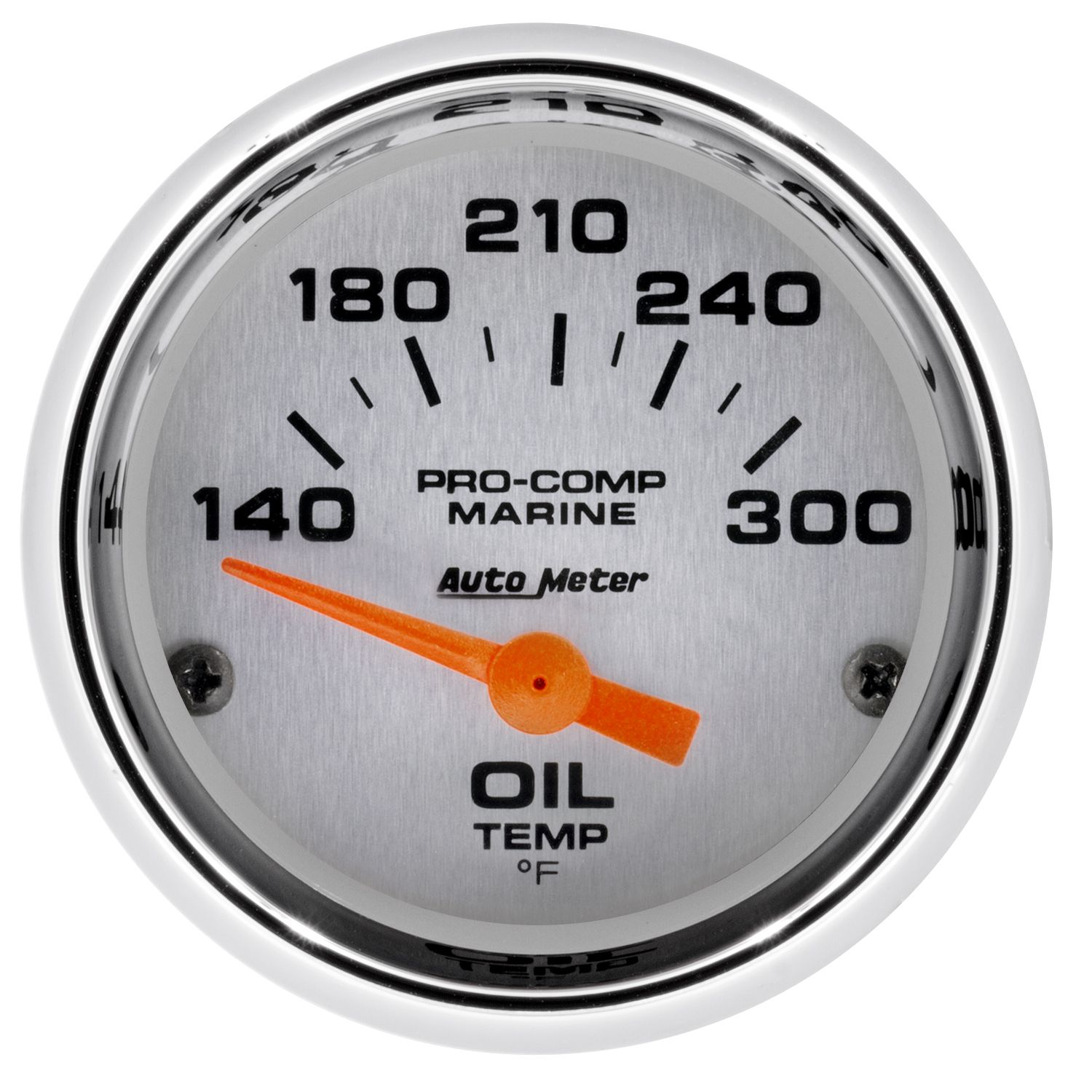

2-1/16" OIL TEMPERATURE, 140-300 °F, AIR-CORE, MARINE CHROME

2-1/16" OIL TEMPERATURE, 140-300 °F, AIR-CORE, MARINE CHROME

Product # 200764-35
$52.95

OR
  • 2-1/16" (52.4mm)
  • Air-Core Air-Core
  • 140-300 °F
  • Incandescent
  • Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description
An engine running a high oil temperature will fail, as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to AutoMeter’s patented air core meter movement, a single wire, 1/8” NPT temperature sender (990344) is available separately.
ADDITIONAL NOTES

Feature Points

  • Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
  • Requires AutoMeter sending unit 990344
  • Includes bulb and socket assembly with red and green bulb covers
  • Includes gauge mounting hardware and installation instructions
  • 12 month limited warranty
  • Traditional incandescent lighting illuminates around the perimeter of the dial
SHIPPED WITH

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 2225
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 58.66ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

Do you offer a dual station sender for your marine gauges or is there an alternate method to wire two gauges to a single temperature sender?

Asked by: Darkmark
Thank you for reaching out to us. Unfortunately, there would be no way to read both gauges at the same time off a single sender, but you could switch between gauges with a low contact resistance switch and read one at time.
Answered by: Matt from AutoMeter
Date published: 2018-06-07

I am purchasing the Auto Meter Marine Oil Tempature Gauge 200764-35. It says it requires a 990344 sensor. Will be using Auto Meter #2257 m12X1.75 to 1/8-27 adaptor. Is there a longer sensor that will work with this gauge. Like #2385

Asked by: Jack A
Hi Jack, thank you for contacting us. If you're planning to use an M12 adapter, you'll want to use the 2259 shallow depth sensor, which you can see here: https://www.autometer.com/shallow-depth-electric-temperature-sender-250-300-and-340-deg.html This is very commonly used on LS engines in which the cylinder head port is M12x1.5, but holds true for any M12 bushing. Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-02-12

How long is sensor 990344. If this is short is there a longer 1/8-27 ntp sensor that works with auto meter Marine 200764-35

Asked by: Jack A
Hi Jack, thank you so much for contacting us. The overall length of the sending unit is 1.72", with about 1/2" of that being the probe that extends beyond the threads. We also have our 2259 sending unit which ends right at the end of the threads (no protruding probe) which would work for applications in which you require a bit more internal clearance: https://www.autometer.com/shallow-depth-electric-temperature-sender-250-300-and-340-deg.html Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-02-12
