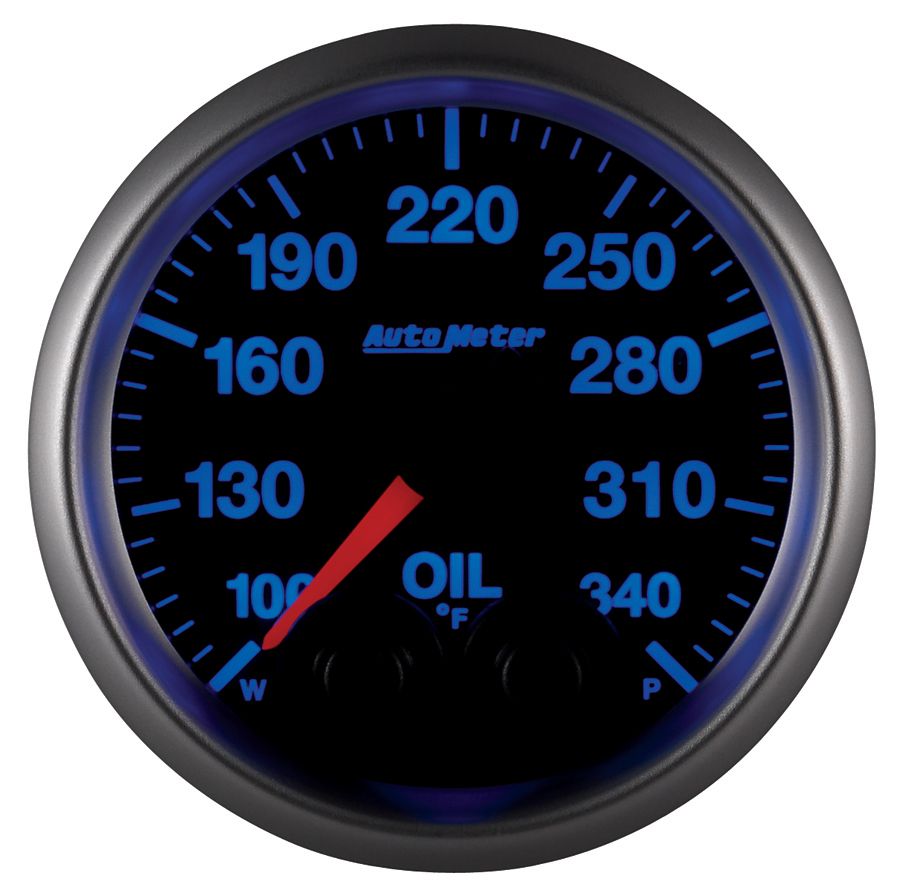

2-1/16" OIL TEMPERATURE, 100-340 °F, STEPPER MOTOR, ELITE

$278.49

Shipping in 2-4 business days

Free Shipping over $99

Hassle Free Returns

Quick Specs

Size:2-1/16" (52.4mm)
Type:Digital Stepper Motor
Range:100-340 °F
Lighting:LED
Instructions: Download PDF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DESCRIPTION:

One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you’ve got the proper oil weight and cooling capacity. Using AutoMeter’s advanced 1/8” NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. A direct plug in wiring harness is included for ease of installation.

Feature Points

7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
Acquire data for later review with one-touch Peak Recall functionality
Data logger 0-5V output provides ECU and data systems with vital information
Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up

Ships With

2252
3/8" NPT and 1/2" NPT adapter fittings
2230

REVIEWS:

QUESTIONS:

The temperature range you list for your 2252 sending unit is -40F-300F. However, this gauge display reads to 340F. Is this gauge accurate within its full range, given the limited range of the sensor provided?

Asked by: mikew

The gauge is accurate for the full range given on the gauge. We only supply the data chart up to 300 degrees unfortunately for the sending unit.

Answered by: Steve from AutoMeter

Date published: 2020-06-05

Can this be used for transmission temperature? I didn't see a trans temp guage with this guage series.

Asked by: Soundguy78

Thank you for the question. The Elite Oil Temp could absolutely be used for trans fluid or water, but we do offer an Elite Series Transmission Temp model 5658: https://www.autometer.com/2-1-16-trans-temp-100-260-f-elite.html

Answered by: Matt from AutoMeter

Date published: 2018-10-08
