In stock


Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

  • Size:2-1/16" (52.4mm)
  • Type:Air-Core
  • Range:73 Ω Empty / 10 Ω Full (LINEAR)
  • Lighting:Incandescent
  • Instructions: Download PDF

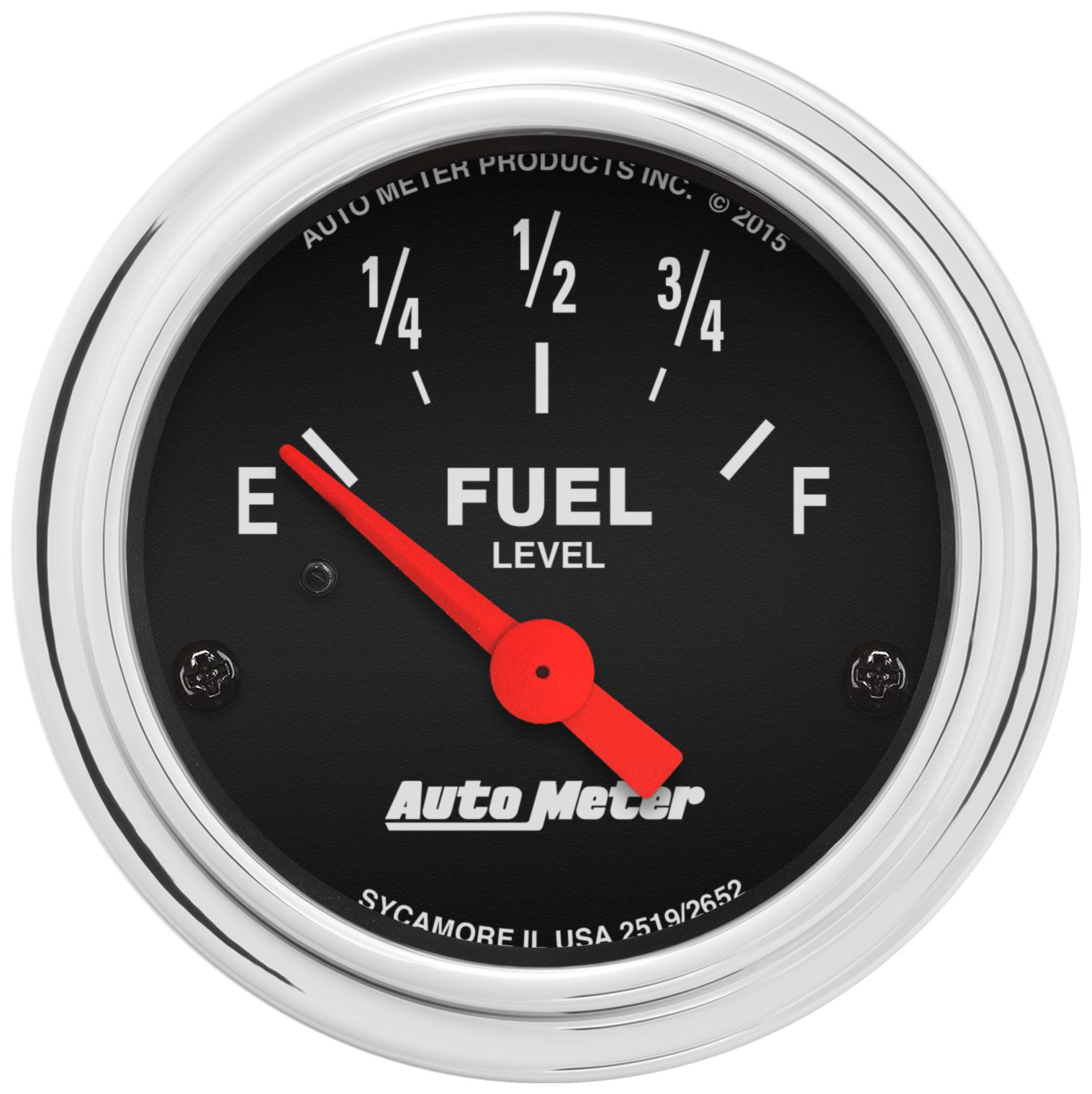

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.

Feature Points
  • Includes bulb and socket assembly with red and green bulb covers
  • Designed specifically for use with aftermarket/reproduction 73-10ohm fuel level sensors for Ford and Chrysler applications that have a linear scale.
  • Features Air-Core meter movement
  • Includes gauge mounting hardware and installation instructions
Ships With
  • 2230
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 63.43ms
  • bvseo-msg: HTTP status code of 404 was returned;


Trying to diagnose fuel level gauge reading incorrectly. When you un-hook the sending unit wire should the gauge go to full or empty ?

Asked by: Comp4548
Thank you for your question. It depends on the gauge. If you have this 73-10 ohm gauge, with no signal it should go to E. If you need further detailed troubleshooting assistance, I would recommend reaching out to our support team so they can go through steps specific to your application. You can contact them at 866.248.6357 or
Answered by: Zach from AutoMeter
Date published: 2019-09-13

I need a fuel level gauge 6volt positive ground 73-10 ohm range... please advise....  Thank you

Asked by: Phil 7337
Thank you for your question. None of our products will work on a 6 volt positive ground system.
Answered by: Zach from AutoMeter
Date published: 2019-08-28

Does the LED #3285 work with is gauge?  Thanks Ron

Asked by: Azkid
Hi there, thank you for connecting with us. Yes, the 3285 LED Replacement is compatible with the Traditional Chrome Fuel Level gauge.
Answered by: Matt from AutoMeter
Date published: 2018-02-14
