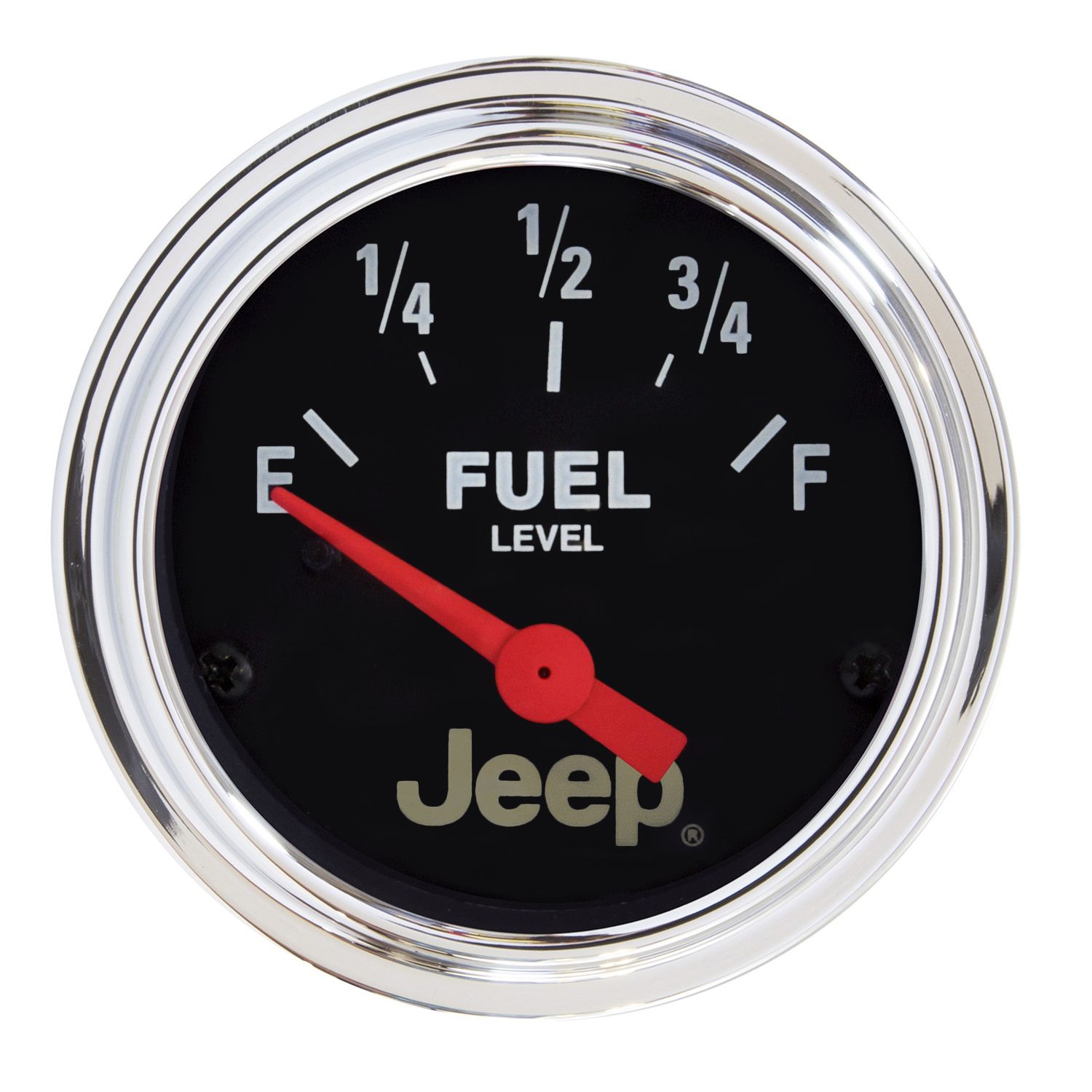

2-1/16” FUEL LEVEL, 0- 90 Ω, AIR-CORE, JEEP

2-1/16” FUEL LEVEL, 0- 90 Ω, AIR-CORE, JEEP

Product # 880243

  • 2-1/16" (52.4mm)
  • Air-Core Air-Core
  • 0 Ω Empty / 90 Ω Full
  • Incandescent
  • Download
  • Ships in 2 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.


Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most 1965 to 1997 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 2230
2-1/16” FUEL LEVEL, 0- 90 Ω, AIR-CORE, JEEP is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from It’s perfect Searched a long time to find the right gauge for the purpose I needed,couldn’t be more pleased. No more gas needle bouncing around,
Date published: 2019-04-29
  • y_2019, m_10, d_19, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_880243, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_autometer-us
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 39.11ms

Will this work for my 1993 yj wrangler

Asked by: Jonc
Thank you for your question. Yes, this should work with the stock sending unit on your '93 jeep.
Answered by: Zach from AutoMeter
Date published: 2019-04-12

hi im looking for a fuel gauge level i measured my stock fuel level sensor and its reading between 20 ohm full and 228 empty i got a 2000 jeep wrangler i bought the full gauges set from you guys and im missing the fuel gauge.

Asked by: stii
Thank you for reaching out to us. In the late 90's the Jeep fuel level senders went to a 270-20 ohm sender. The only compatible fuel level gauges would be our Programmable models, like 3310, 4310, etc. Unfortunately, we do not offer one in the Jeep line or our Traditional Chrome line, which is cosmetically very similar to the Jeep line. However, you can inquire with us about special ordering Z-Series model 2656 built with the Traditional Chrome Bezel. If you'd like a quote on this or to place an order, give us a call at 866-248-6356.
Answered by: Matt from AutoMeter
Date published: 2019-01-04

Is this #880243 the proper gauge for a 1980 jeep cj7? Or is the non-linear gauge the right one?

Asked by: Dave C
Hi Dave, thank you for the question. The 880243 is actually a linear 0-90 ohm. It's only available as a linear option and any 0-90 ohm sender will be linear. However, your 1980 is likely a 73-10 ohm sender, and would require model 880428. It wasn't until around 86/87 that Jeep went to the 0-90 ohm sender. The 880428 is a non-linear gauge and would match your original OEM sender. If your sender is anything other than the original sender from a 1980 Jeep, it may be linear.
Answered by: Matt from AutoMeter
Date published: 2018-07-18

Hi. I want to know if this gas meter is compatible with the bolt of my CJ 7 1985.

Asked by: Ryan0520
Hi Ryan, thank you for the question. We would recommend measuring your fuel level sender resistance to confirm, but it looks like the CJ actually used a 73-10 ohms sender, which would require this gauge - https://www.autometer.com/2-1-16-73-e-8-12-f-fuel-level.html
Answered by: Matt from AutoMeter
Date published: 2018-05-21
