PILLAR KIT, 100-250 °F/0-60 PSI/0-1600 °F, 03-09 DODGE RAM, GEN 3 DODGE FACTORY MATCH

PILLAR KIT, 100-250 °F/0-60 PSI/0-1600 °F, 03-09 DODGE RAM, GEN 3 DODGE FACTORY MATCH

Product # 7099
$449.95

OR
  • 2-1/16" (52.4mm)
  • Kits
  • 100-250 °F/0-60 PSI/0-1600 °F
  • LED
  • Download Download Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description

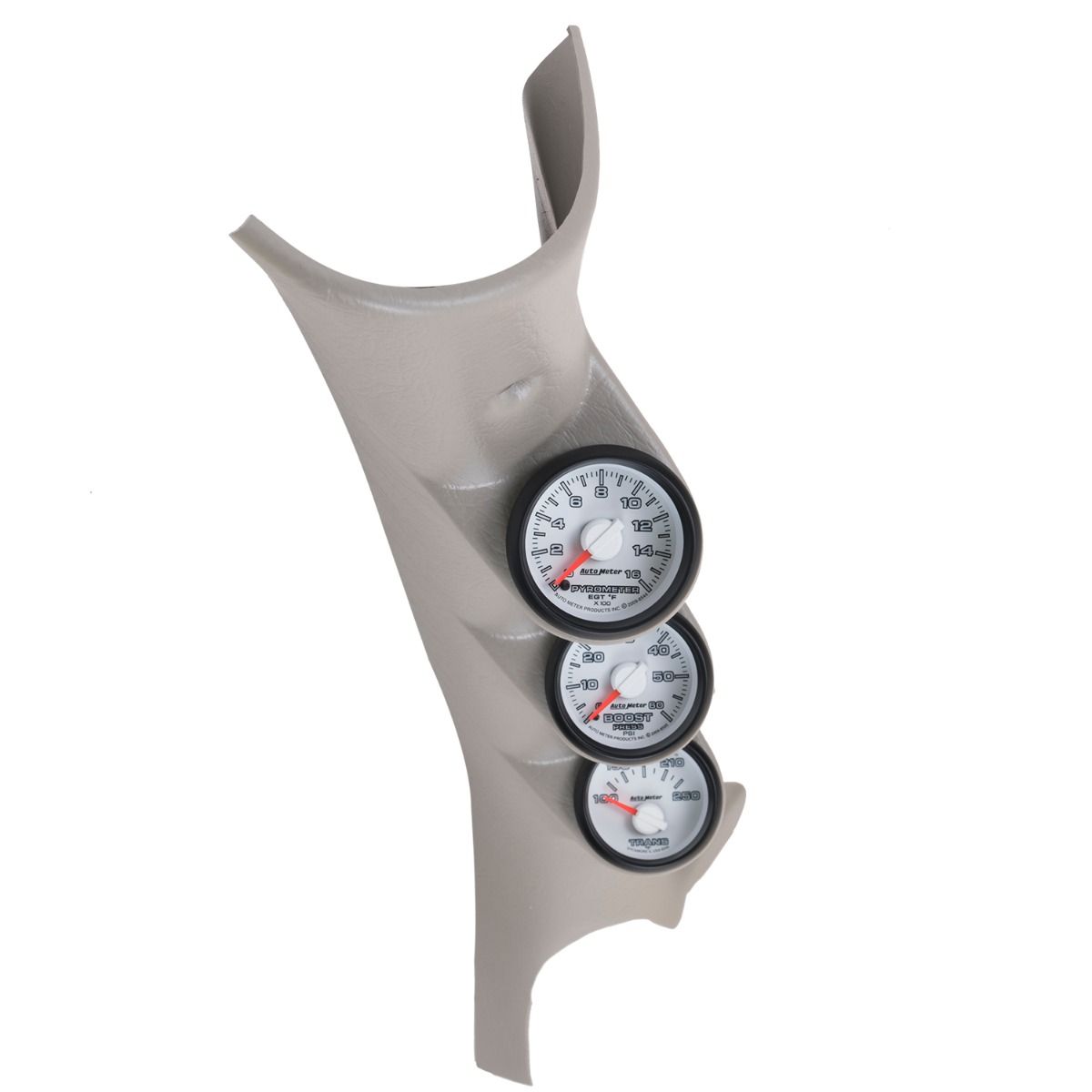

AutoMeter has brought together the most popular diesel gauges into a complete, ready to install pillar kit. The kit includes a pyrometer (EGT), boost, transmission temperature gauge, and gauge pillar mount.
ADDITIONAL NOTES

Feature Points

  • Features Hi-Def™ through-the-dial green LED lighting
SHIPPED WITH

Sending Units

  • 2258

Adapter/Fitting

  • 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings.

Wire Harness

  • 5251

Tubing

  • 10 ft. nylon tubing

Mounting Hardware

  • Nylon Ratchet
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 90.72ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

I would like to buy a kit but i need gauges on a larger scale for instance boost 0-100 egt 0-2000 etc, cab i customize the kit so i get the gauges i need?

Asked by: Brockgiddens
Thank you so much for contacting us. While this kit is a fixed configuration, we do offer all of the gauge in this series separately. Here is a link to the pillar: https://www.autometer.com/2-1-16-trpl-replacement-pillar-dodge-ram-10-14.html And here are the 4th Gen gauges: https://www.autometer.com/gauges/gen-4-dodge-factory-match.html#1&profile=products Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-07-10

Can you please forward me the breakdown parts list of what is included in this kit. As we have a customer who returned this items claiming one of the sending units or senders is missing??

Asked by: Catfish Potesta
Hi there, thank you for connecting with us. While we don't necessarily have an easily decipherable or shareable breakdown, we can provide some details on what is included with regards to senders. This kit will include a 2258 Trans Temp Sender, the 5251 Pyrometer Probe/Harness, and 10 feet of nylon tubing for the boost gauge, and various fittings for each of those gauges. Without quite a bit more detail, it would be difficult to determine what may or may not be missing unless it's one of those specific items. I would recommend reaching out to our service team at 866.248.6356, hitting the Chat link at the top of the page or emailing us here: http://www.autometer.com/resources/index/ask_a_question
Answered by: Matt from AutoMeter
Date published: 2018-03-01

Does your kit come with all wiring and sensors in order to install the gauges

Asked by: Nicktoy
Hi there, thank you so much for the question. All sensors are included as well as tubing for the boost the gauge. You will need to provide 18-20 gauge wire for the Transmission Temp and for the lighting on the Boost Gauge. Depending on the year, there may be additional items that would assist in installation. Here is a link to an install we did on a 2008 that should provide some additional details and guidance: https://www.autometer.com/resources/index/guide_view/id/7 If you have any additional questions I would recommend reaching out to our service team at 866.248.6356, hitting the Chat link at the top of the page or emailing us here: http://www.autometer.com/resources/index/ask_a_question
Answered by: Matt from AutoMeter
Date published: 2018-02-22

Can you customize this kit?

Asked by: Sturg
Thank you so much for contacting us. This kit is available in this configuration only. All of the components are available separately and can be pieced together to fit your application. If you need help with specific part numbers, please give our tech team a call at 866.248.6356, hit the Chat link at the top of the page or you can email us here: https://www.autometer.com/resources/index/ask_a_question Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-02-19

Can i get the pod in grey?

Asked by: james44
Hi James, thank you for connecting with us. This pod is not available in grey, but can be painted with an interior style paint that is suitable for ABS plastic.
Answered by: Matt from AutoMeter
Date published: 2018-01-24

Can you do away with the trans temp and get a package with the Fuel Pressure, Boost, And Pyro instead

Asked by: Chrome
Hi Chrome, thank you so much for contacting us. Unfortunately these kits are a fixed configuration. With that said, all of the pieces are able individually if you'd like to piece together your ideal kit. If you'd like help with part numbers, give us a ring at 866.248.6356, hit the Chat link at the top of the page or you can email us here: http://www.autometer.com/resources/index/ask_a_question Hope this helps!
Answered by: Joseph From AutoMeter
Date published: 2017-11-30

Is there any possibility that I could swap the transmission temp gauge with something else like fuel rail pressure? I have a manual and don't really need the transmission temp.

Asked by: Noah
Hi Noah, thank you so much for contacting us. Unfortunately these kits are a fixed configuration. With that said, all of the pieces are able individually if you'd like to piece together your ideal kit. If you'd like help with part numbers, give us a ring at 866.248.6356, hit the Chat link at the top of the page or you can email us here: http://www.autometer.com/resources/index/ask_a_question Hope this helps!
Answered by: Joseph From AutoMeter
Date published: 2017-11-29

are all these gauges mechanical ? what color is pillar pod?

Asked by: luke
Thank you so much for contacting us. The boost gauge is indeed mechanical. The transmission temp and pyrometer are both electronic and do include the necessary sending units. The pillar color is the OEM Taupe.
Answered by: Joseph Mills
Date published: 2017-11-07
