Product
1310

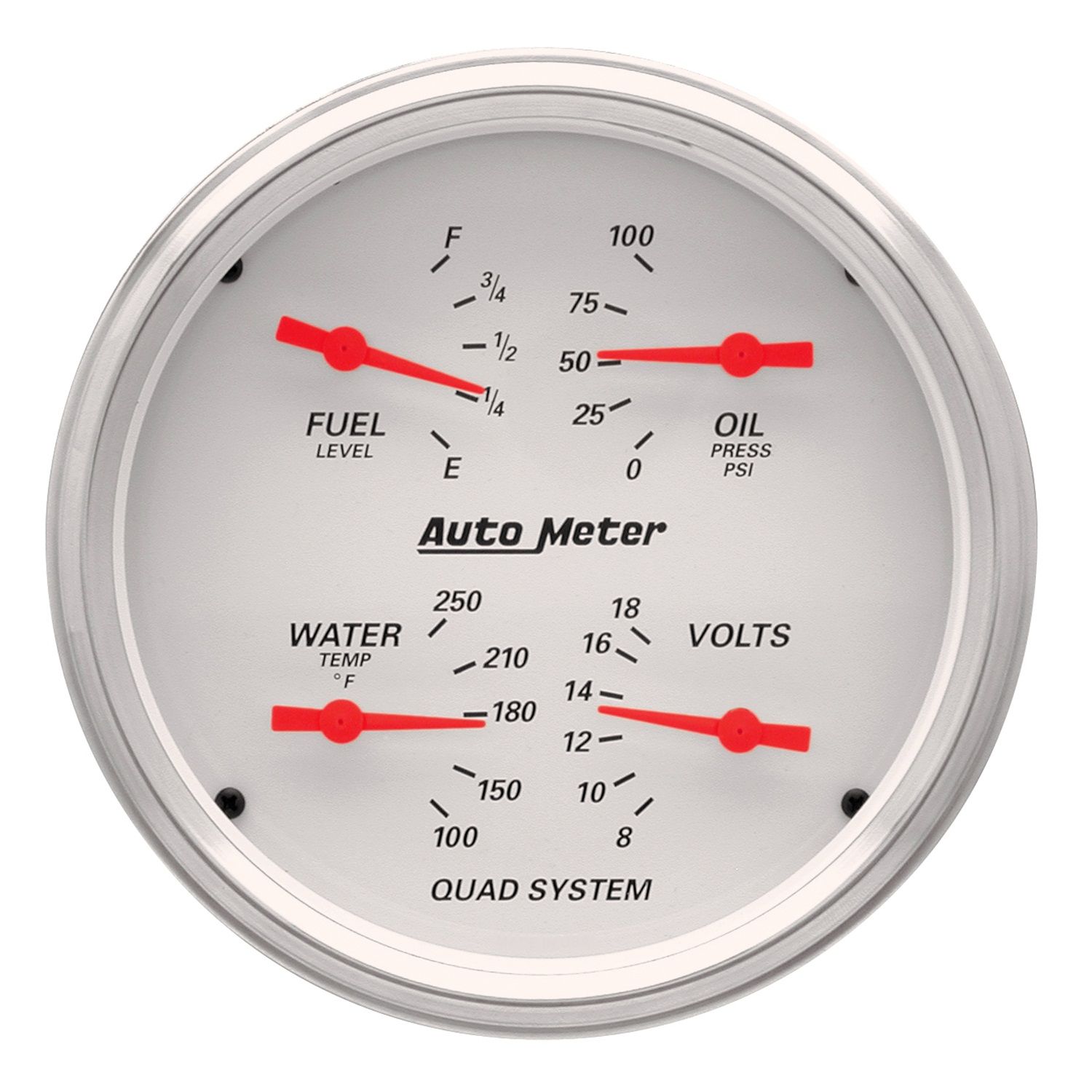

5" QUAD GAUGE, 100 PSI/100-250 °F/8-18V/240-33 Ω, ARCTIC WHITE

$264.99
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

  • Size:5" (127mm)
  • Type:Air-Core
  • Range:100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
  • Lighting:Incandescent
  • Instructions: Download PDF

DESCRIPTION:

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • Domed Lens
Ships With
  • Oil Sender 2242 - Water Sender 2258
  • 3/8" NPT and 1/2" NPT adapter fittings
  • Bracket Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

REVIEWS:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 74.79ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

QUESTIONS:

Will this unit read all the signals on a 1994 ford 5.0 liter v-8? Thank you

Asked by: cbum
We include the appropriate senders that you would have to use for the gauge. For the fuel level, you might need the 9109 unless you replace the sender.
Answered by: Sarah from AutoMeter
Date published: 2021-11-29

Do you make a quad gauge with either 0-90, 70-10, or 0-30 ohm fuel gauge?  I am hoping to run one with a propane fuel system and am limited to those options for a sender.

Asked by: JohnS
Thank you for your question. Yes, we do. It is model number 1319.
Answered by: Natalia from AutoMeter
Date published: 2021-02-05

Good afternoon, I have a #1310 quad gauge and the temp part of the gauge stopped working recently. It doesn't move at all and is stuck below zero. I have checked the wiring and the sensor and everything else is fine. Do you have a repair for this gauge?

Asked by: Anthony Mckeone
