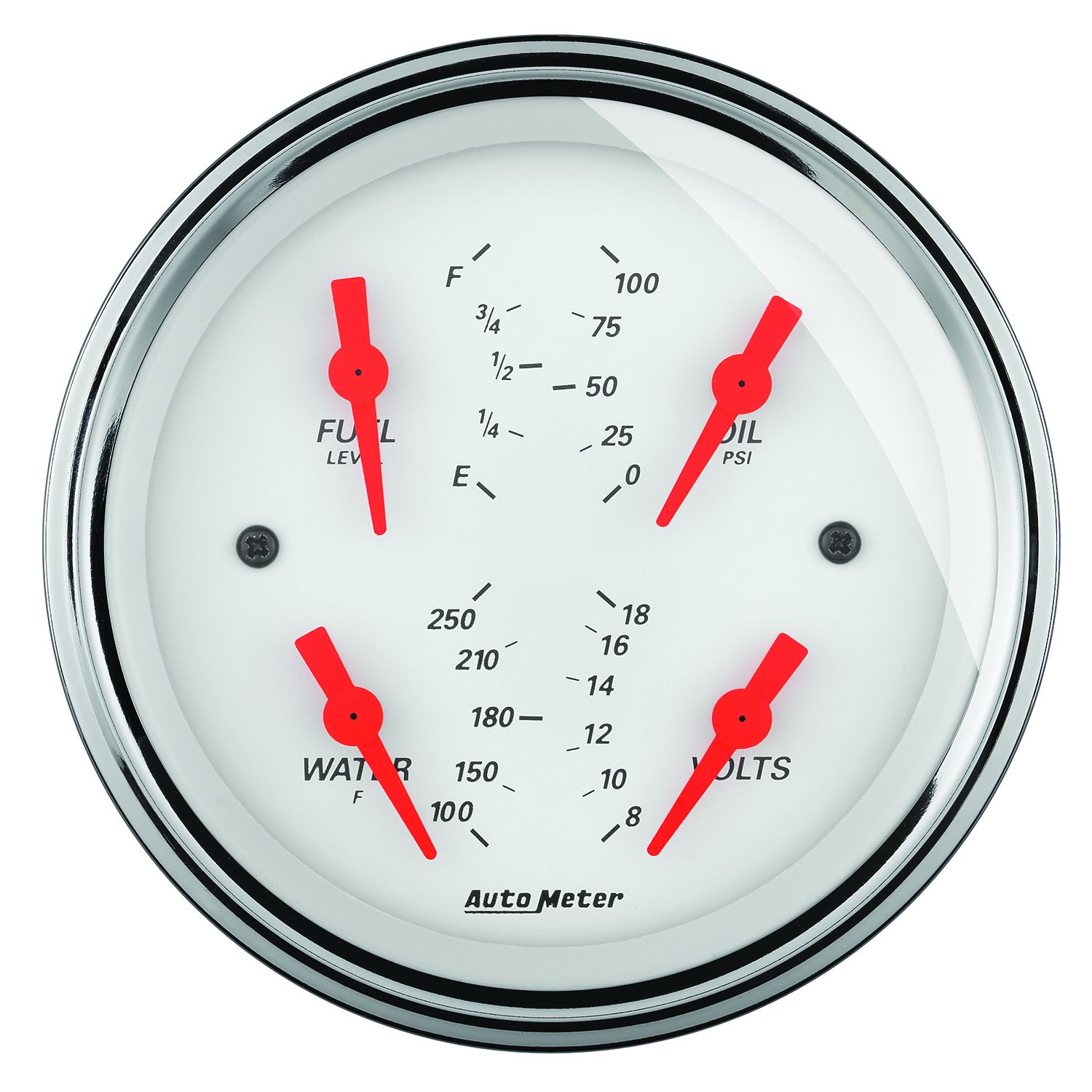

3-3/8" QUAD GAUGE, 100 PSI/100-250 °F/8-18V/0-90 Ω, ARCTIC WHITE

Shipping in 2 business days
Free Shipping over $99
Hassle Free Returns


Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look.

Quick Specs

  • Size:3-3/8" (85.7mm)
  • Type:Air-Core
  • Range:100 PSI/100-250 °F/8-18V/0ΩE-90ΩF
  • Lightning:Incandescent
  • Instructions: Download PDFDownload PDF
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Ships With
  • Bracket Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 43.26ms
  • bvseo-msg: HTTP status code of 404 was returned;


what king of fuel sender is required for this gauge

Asked by: jjack
Thank you for your question. This gauge will work with a 0 ohm at empty to 90 ohms at full, fuel level sensor, which was used on GM vehicles between 1965-1996.
Answered by: Zach from AutoMeter
Date published: 2019-01-10

instructions say a 33- 240 ohm fuel sender for the 1314 gauge is that true?

Asked by: jjack
Thank you for your inquiry. The 1314 is designed for a 0 to 90 ohm fuel level sender. The instruction covers many Quad Gauges, and some of those are 240 to 33 ohm. The product description on the website is correct.
Answered by: Jim from AutoMeter
Date published: 2019-01-09

What is the part number for a replacement temp sensor? Thanks!

Asked by: 76Warrent
