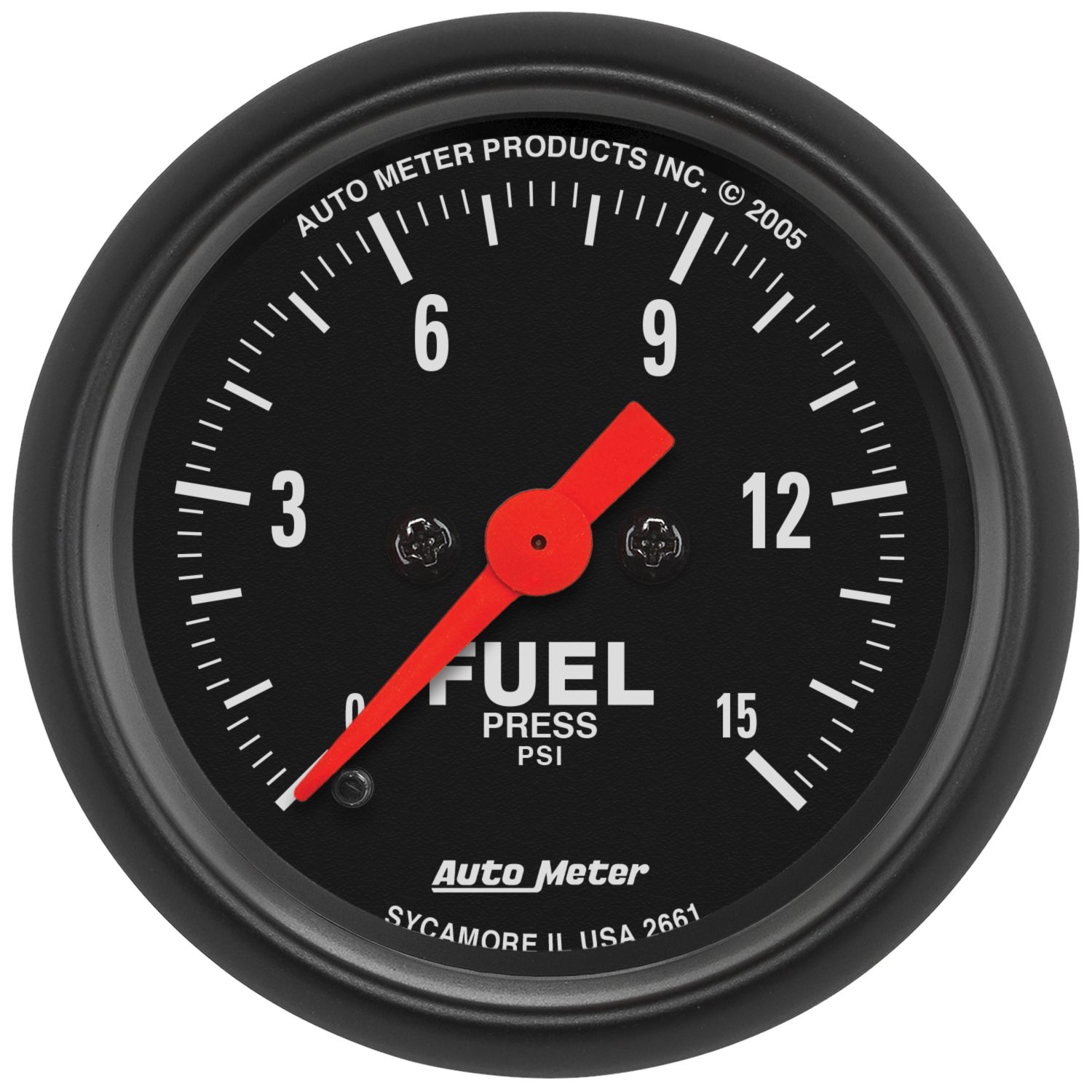

2-1/16" FUEL PRESSURE, 0-15 PSI, STEPPER MOTOR, Z-SERIES

2-1/16" FUEL PRESSURE, 0-15 PSI, STEPPER MOTOR, Z-SERIES

Product # 2661
$239.95

OR
  • 2-1/16" (52.4mm)
  • Digital Stepper Motor Digital Stepper Motor
  • 0-15 PSI
  • Incandescent
  • Download Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description
Seeing the exact fuel pressure on your vehicle can mean the difference between extracting the most performance safely and expensive failures. AutoMeter’s Digital Stepper Motor Fuel Pressure Gauge will precisely measure your exact fuel pressure at levels of accuracy previously unheard of even in professional gauges. Designed for fuel injected or carbureted applications, our advanced 1/8” NPT solid state pressure transducer provides the best possible measurements on the market with unparalleled resistance to vibration and heat. Don’t take chances with your investment; a precise fuel pressure gauge could be the cheapest insurance you’ve ever bought. A direct plug in wiring harness is included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
ADDITIONAL NOTES

Feature Points

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
  • AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
  • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
  • Gauge kit includes 1/8” NPT stainless steel pressure transducer, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
SHIPPED WITH

Sending Units

  • 2245

Wire Harness

  • 5227

Bulb & Socket

  • 3220

Light Covers

  • Red 3214 & Green 3215

Mounting Hardware

  • 2230
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 56.88ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

I installed the Z Series 2661 fuel pressure gauge in October, 2017. I have the sender remotely mounted away from the engine. It has worked fine, but now the needle is fluctuating continuously about 5 psi in each direction. Is this a sign of sender failure

Asked by: ToddR
Hi Todd, thank you so much for contacting us. I don't believe a fluctuation in the needle would be a sign of sender failure. If it was to fail, it would simply stop working. It's a solid state device so it doesn't degrade if it wears. A fluctuation on the needle is mostly likely an indication of a fluctuation in your fuel pressure. This gauge samples incredibly quickly and will pick up any sorts of irregularities in pressure. I would verify that you've got proper fuel system function, as well as verify that the gauge has a clean. steady 12v supply and a good engine or frame ground. Please feel free to reach out to our tech team. We're here M-F, 8am - 5pm CST and can be reached at 866.248.6357, via the Chat link at the top of the website or via email here: https://www.autometer.com/resources/index/ask_a_question Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-05-17
