Quick Specs

  • Size:2-1/16" (52.4mm)
  • Type:Mechanical
  • Range:30 IN HG/20 PSI
  • Lighting:Incandescent
  • Instructions: Download PDF

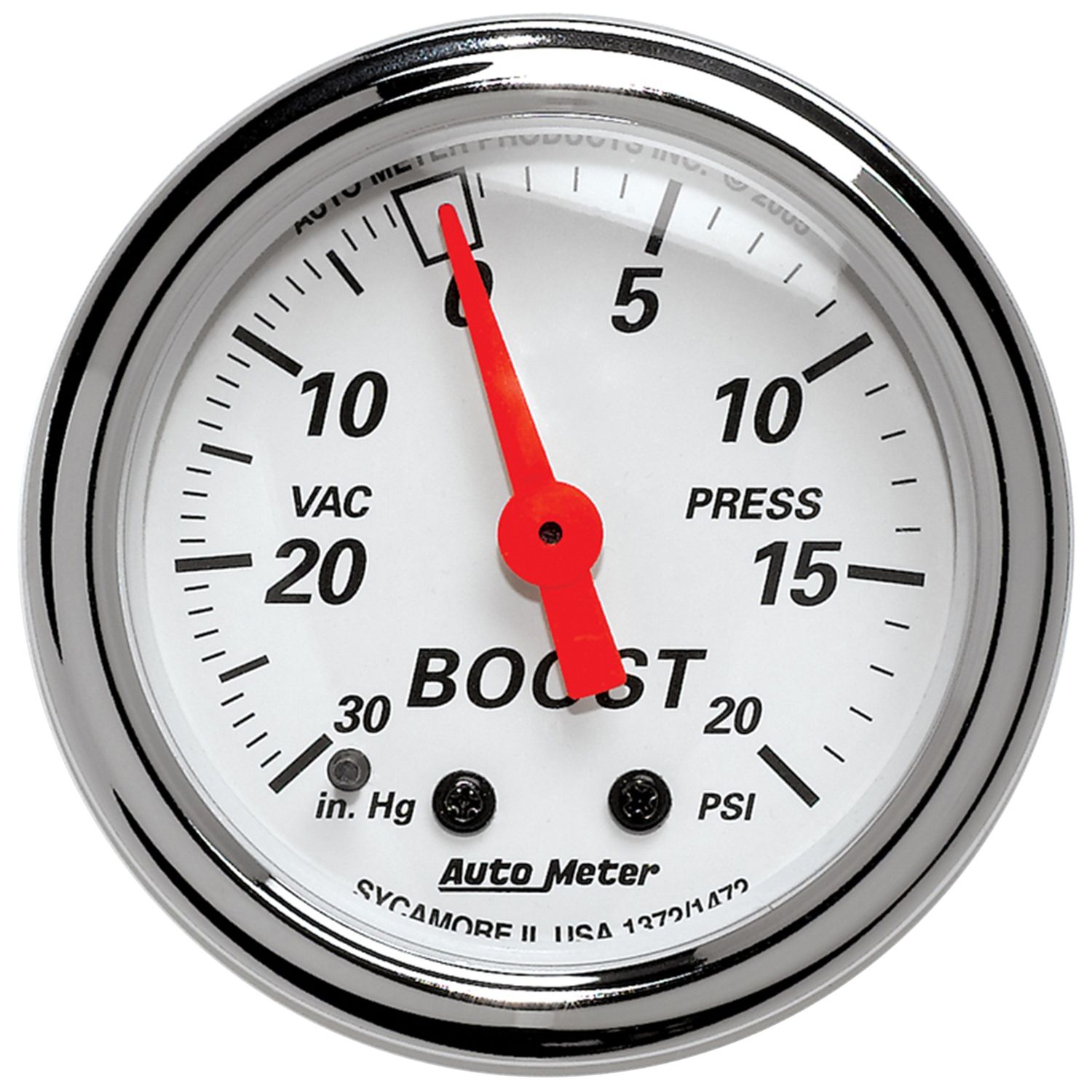

The standard in the industry, AutoMeter’s Mechanical Boost/Vac Gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn’t another gauge on the market that can lay claim to the levels of accuracy or durability you’ll find here. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Includes 1/8” NPT fittings and nylon line kit.
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Gauge kit includes 1/8” nylon line, T-Fitting, vacuum fitting, compression fittings, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Domed Lens
Ships With
  • 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
  • 2230
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 6.28ms
  • bvseo-msg: HTTP status code of 404 was returned;


I have a 2018 F-150, 2.7 Ecoboost. I would like to know exactly what lines to use under the hood to hook up a manual boost/vac. gauge and what hardware is needed. All lines are metal or hard plastic and attach to a sensor of some sort. Thank you.

Asked by: Tim.
I would recommend giving our tech support team a call to discuss your install. We can be reached at 866.248.6357
Answered by: Alex at AutoMeter
Date published: 2022-11-10

I bought this gage back in Aug 19 and now I want to buy the Transmission Tempergage that matches it - Suggestions?? Also - I will be mounting both to a flat panel and the rear is exposed. What type of rear cover do you have preferably chrome?

Asked by: 23 T Bucket
Thank you for your question. We won't have a rear cover for these unless you mount them inside a pod. For assistance on the transmission temperature gauge please call our tech line at 866-248-6357.
Answered by: Steve from AutoMeter
Date published: 2020-03-06

Can I get this gauge with higher boost maybe up to 30psi

Asked by: Anonymous
Thank you for your question. Unfortunately we do not offer this gauge in a 30 psi. For further assistance please call our tech line at 866-248-6357.
Answered by: Steve from AutoMeter
Date published: 2020-01-13

I need a fuel pressure gauge to go alongside the boost #1372 artic white. do you have anything that closely matches it ???

Asked by: Louis28
Thank you for your question. We do not offer any direct matches in the Arctic White series, however, you could create a custom gauge via our Custom Shop which will match the Arctic White series. Here is a link to our custom shop:
Answered by: Zach from AutoMeter
Date published: 2018-10-29

Does the 2203 pedestal cup fit this mechanical gauge with the additional brass fitting and hose on the back. Measuring the boost gauge i brought the cup needs to be 4 inches long.

Asked by: T-bucket
Thank you for the question. The 2203 is fully compatible with our 2-1/16" mechanical boost gauge. The cup actually has a hole in back lower portion to accommodate the fitting on the back of the boost gauge. You can run straight out the back with your fitting and tubing. We also include an extension adapter and right angle fitting that will allow for a right angle connection with the tubing off the back of the gauge. You will have to trim the mounting studs on the gauge, however. This is a common requirement for most mounting cup installations.
Answered by: Matt from AutoMeter
Date published: 2018-06-29
