Quick Specs

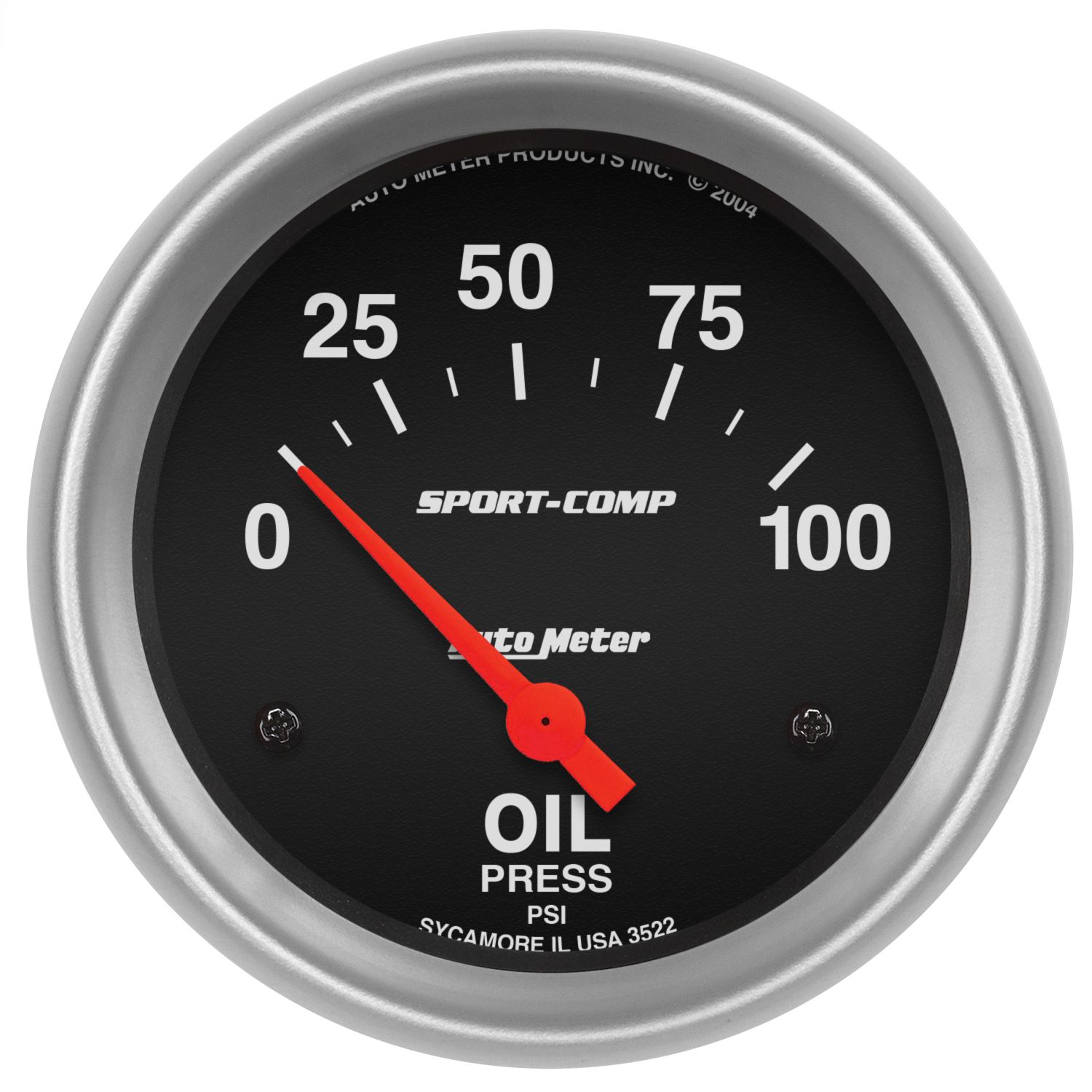

Quite possibly the most critical vital to monitor, engine oil pressure can mean the difference between making it home and needing to replace the engine. The patented air core meter movement provides the durability and accuracy that you expect from the AutoMeter name. Throughout 57 years of building the world’s best competition instruments, this meter movement has been the engine powering the machine that sets the benchmark. A single wire, 1/8” NPT oil pressure sender is included.
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Ships With
  • 2242
  • 3/8" NPT and 1/2" NPT adapter fittings
  • 3245
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 49.85ms
  • bvseo-msg: HTTP status code of 404 was returned;


Is this internally regulated? By that I mean, will the reading vary slightly if my battery voltage is 11.5V or 13.5V? I can easily purchase and install a 12V buck/boost regulator to power this, but if the gauge is internally regulated this wont be reqd.

Asked by: DaveC
There is no need for external regulation. It's an air-core electrical meter designed to function on a normal operating temperature of 10-16V.
Answered by: Matt from AutoMeter
Date published: 2022-01-21

Are replacement sending units available?

Asked by: burch
Thank you for contacting us. We do offer the 2242 for replacement.
Answered by: Sarah from AutoMeter
Date published: 2021-12-15

Purchased this oil pressure gauge a couple months and just getting around to installing it. Finished and hit ignition and the needle pegged to the far right and stayed there. Did I short something when installing or maybe a bad gauge? Thanks for a reply.

Asked by: Anonymous
Please give our tech line a call at 866-248-6356 as they will need more information to determine the issue.
Answered by: Natalia from AutoMeter
Date published: 2021-01-12

Can you order just the oil pressure gauge without the sending unit etc? PN 3522

Asked by: Ben Bone
Thank you for your question. Unfortunately you are not able to buy the gauge by itself. They are only sold as a kit.
Answered by: Steve from AutoMeter
Date published: 2019-11-26

will this work on a 1990 Jeep YJ 4.2l 6 cyl?

Asked by: Gerson
Hi Gerson, thank you for the question. Our instruments are considered universal and not vehicle specific, so this should work on your 1990 Jeep, but not as a direct OEM replacement. It is designed to mount into a 2-5/8" hole or 2-5/8" accessory like a cup or panel. If you have any specific installation questions, give us a ring at 866.248.6356, hit the Chat link at the top of the page or you can email us here:
Answered by: Matt from AutoMeter
Date published: 2018-07-17

Where can I find a replacment sending unit. 2 years in, and mine is leaking oil past the terminal.

Asked by: Datsunmotorsports
