Quick Specs

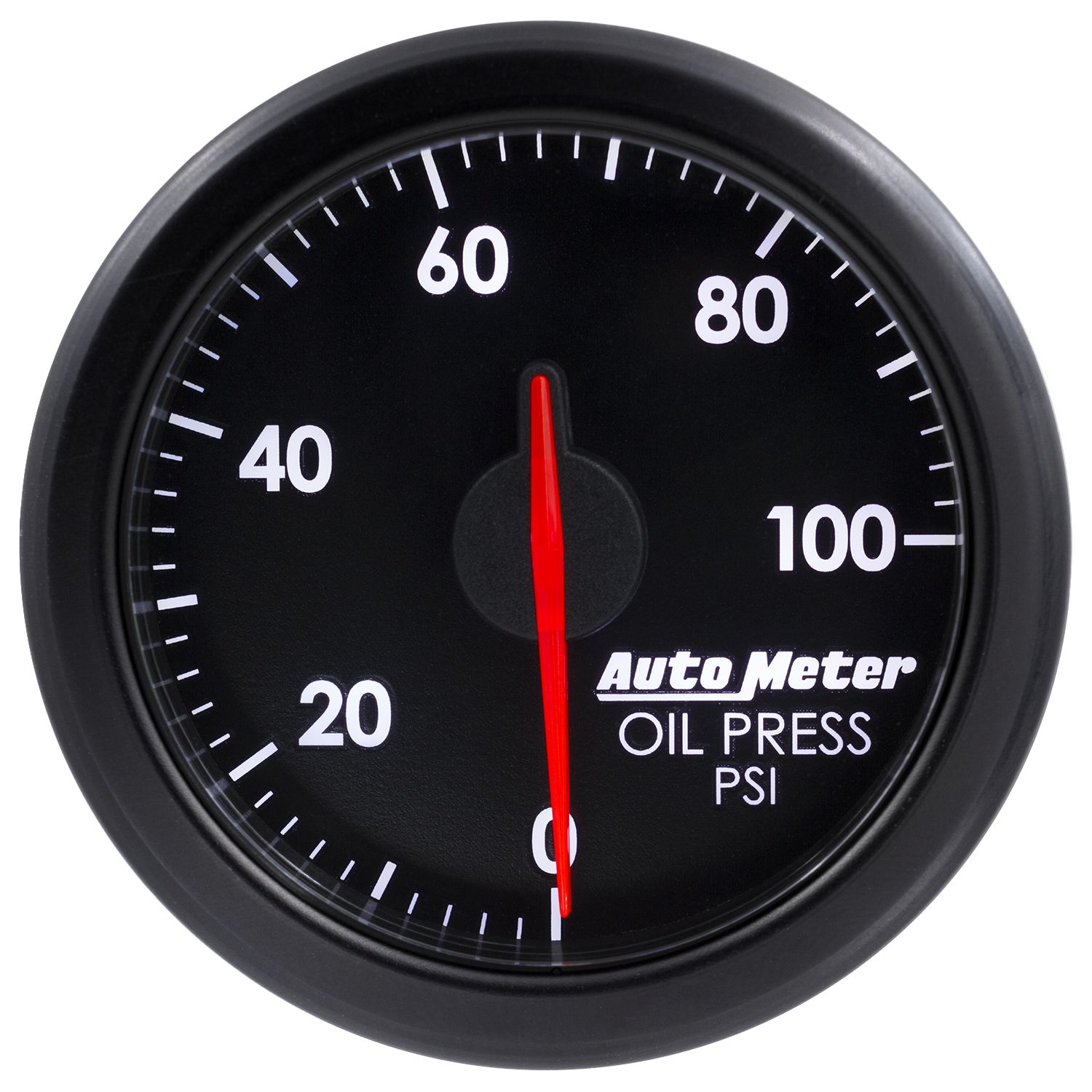

AutoMeter’s new state of the art AirDrive module provides a plug and play solution that wirelessly transmits data through a secure WiFi network from your vehicle to our award winning AirDrive gauges. Program configurable colors, warning points and peak recall functions through AutoMeter’s free AirDrive smartphone app. Quick and easy installation is as simple as plugging the control module into the vehicle’s OBDII port, mounting and powering gauges, and connecting to the mobile app, eliminating any fear of voiding factory warranties on your new vehicle. The AirDrive system is capable of broadcasting two additional analog sensor inputs to deliver information not found on your vehicle’s data bus. Take plug and play performance to the next level with the AutoMeter AirDrive system.

Works with most 1996 and newer OBDII vehicles. Download the free iOS or Android AirDrive App to verify compatibility and available parameters.

Android App: Download
iOS App: Download

Gauge requires the 9110 control module.

Feature Points
  • Works with most 1996 and newer OBDII vehicles. Download the free iOS or Android AirDrive App to verify compatibility and available parameters.
  • Requires AirDrive Module #9110
  • Installs in seconds - Simply plug into the vehicle’s OBDII port
  • True plug and play functionality
  • Uses your vehicle’s existing OEM sensors
  • Easily configurable display parameters and warning points using a smart phone or tablet
  • 256 Color options for the perfect match to any interior
Ships With
  • Wire Harness: Yes
  • Bracket Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm



  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 60.06ms
  • bvseo-msg: HTTP status code of 404 was returned;


Will this gauge for oil pressure work with a Base Mustang GT 2016?

Asked by: Glee
Thank you for your question. I would recommend contacting our support team so they can get some more details and verify compatibility. You can contact them at 866.248.6357 or
Answered by: Zach from AutoMeter
Date published: 2019-09-06

Every device I used to check oil pressure via the OBDII has yielded a vastly different reading compared to a mechanical test gauge at the filter. 2015 Silverado 4.3. What happens if this Air Drive does not give a true reading?

Asked by: MartyN
Thank you for your inquiry. If more than one device has not agreed with your mechanical gauge, I suspect our Air Drive gauge will not agree as well. The OBDII protocol is standardized, so any reader should display the same result.
Answered by: Jim from AutoMeter
Date published: 2019-05-28

The description states:"•Installs in seconds - Simply plug into the vehicle’s OBDII port •True plug and play functionality ", then why do the install instructions show wiring and a wiring harness is included? That's NOT plug and play

Asked by: Meanie
Thank you for your question. Since the gauge is not powered by an internal battery, it needs to be connected to a 12v power source and ground in order to operate. The wire harness included has a lead for power, ground, and lighting. I apologize if our definition of Plug and Play was misleading, but we use it to refer to simply plugging in a wire harness and attaching a unit to your OBD-II port rather than drilling a hole in your firewall, installing a sensor into your engine somewhere and then running wires/tubing from the sensor to the gauge. If you have any further question, feel free to contact our tech team and they would be happy to discuss this with you. You can reach them at 866.248.6357
Answered by: Zach from AutoMeter
Date published: 2020-06-09

Does this line work with OBD1?

Asked by: MattV
Thank you for your question. Unfortunately, the Air Drive line will not work with OBD1, it is only compatible with OBDII.
Answered by: Zach from AutoMeter
Date published: 2018-11-09
