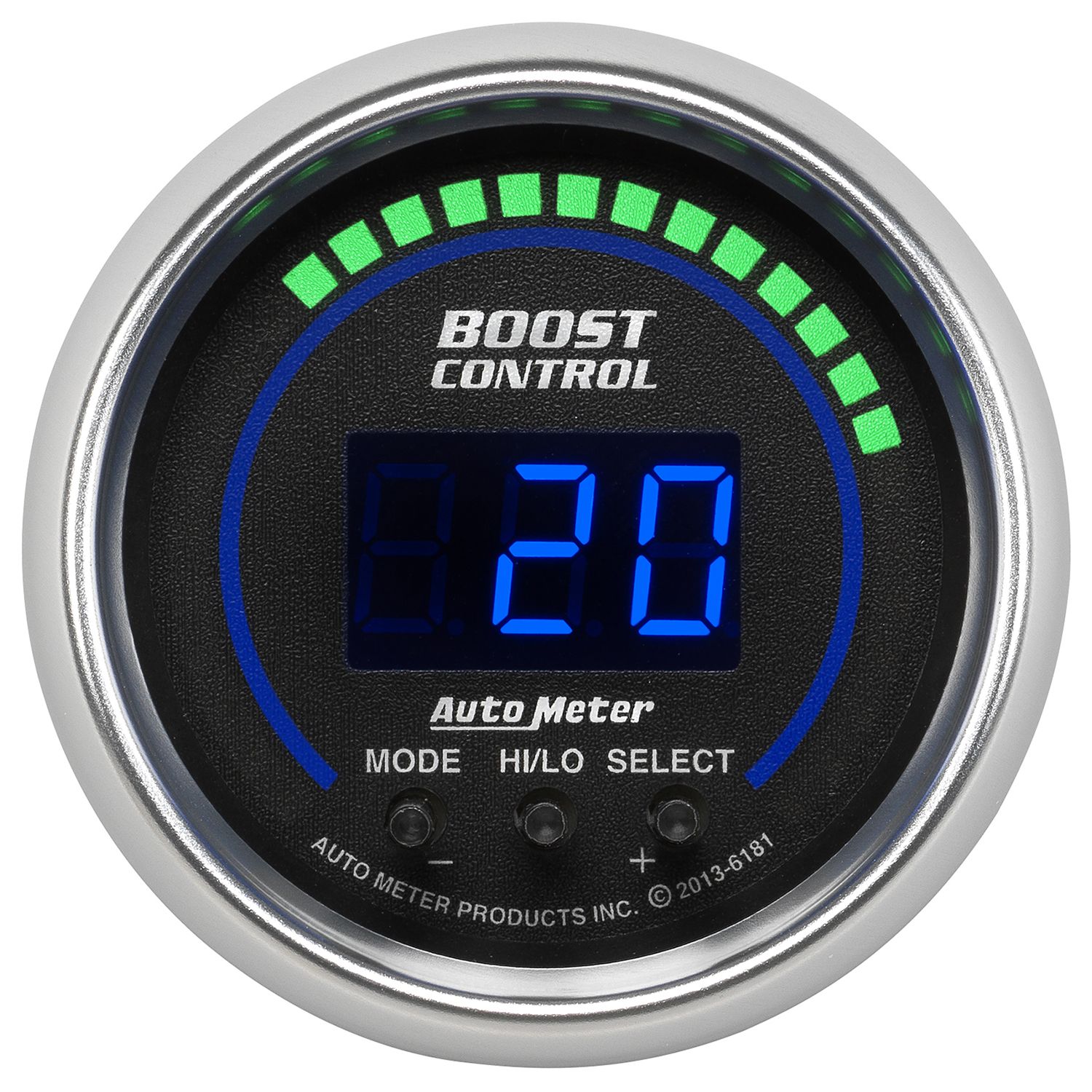

2-1/16" BOOST CONTROLLER, 30 IN HG/30 PSI, COBALT
THE INSTALLATION OF THE AUTOMETER BOOST CONTROLLER IS RECOMMENDED ONLY FOR EXPERIENCED TECHNICIANS. THIS PRODUCT MAY DAMAGE YOUR ENGINE IF USED IMPROPERLY.
- Size:2-1/16" (52.4mm)
- Range:30 IN HG/30 PSI
- Lightning:Digital LED
- Instructions: Download PDF
THE INSTALLATION OF THE AUTOMETER BOOST CONTROLLER IS RECOMMENDED ONLY FOR EXPERIENCED TECHNICIANS. THIS PRODUCT MAY DAMAGE YOUR ENGINE IF USED IMPROPERLY. THE AUTOMETER BOOST CONTROLLER IS INTENDED FOR OFF-ROAD USE ONLY OR WHERE PERMITTED BY SPECIFIC REGULATORY EXEMPTION (PLEASE VISIT HTTP://WWW.SEMASAN.COM/EMISSIONS FOR STATE SPECIFIC LAWS)
IT IS THE RESPONSIBILITY OF THE USER AND INSTALLER THAT THIS PRODUCT IS USED IN COMPLIANCE WITH ALL APPLICABLE LAWS AND REGULATIONS.
Offering an unparalleled feature set, the AutoMeter Boost Controller redefines what a boost controller should be. In addition to the standard hi/lo mode, boost by RPM and boost by gear give you absolute control of your power delivery. Initial setup is incredibly simple using an intuitive menu and a evolutionary gear capture process. Configurable warnings with peak recall and boost shutdown are standard safety features designed to protect your engine. A scalable display range allows you to tailor resolution to show only the needed range for your application. AutoMeter’s Pro Control output system is equipped to allow electric devices to be controlled at a user defined boost pressure (such as water/meth injection, nitrous, etc.) as well as Pro-Control input to default to waste gate spring pressure should the need arise. Display pressure in PSI, BAR, or kPa and easily data log and display with or without real-time barometric compensation. A direct plug wiring harness is included for ease of installation.
High/Low Boost Modes
Essentially two different, configurable boost settings that can be switched between with the push of a button. Perfect for the daily driver/weekend warrior, power can be called upon only when you need it striking the perfect balance between performance and efficiency.
Boost By RPM/Boost By Gear
Integrating AutoMeter’s most advanced digital tachometer circuit, your boost curve can be tuned precisely at 500 RPM increments to minimize wheel spin and put more power to the ground. Taking it a step further, you can even custom tailor boost levels to individual transmission gears for the ultimate in control.
One Touch Gear Capture
Because our Boost Controller looks at not only engine speed, but also vehicle speed, you can instantly capture each gear with the push of a button. Simply drive normally in your chosen gear and hit the capture button. Our advanced algorithms determine your exact gear in real time based on the ratio of these two inputs.
One touch recall of the highest boost pressure seen during a given time period.
Configurable Warnings w/ Overboost Protection
Easy to set parameters provide a full face warning if boost pressure moves beyond your settings. The warning doubles in speed if you pass it by 2 psi or more. The controller can also automatically return the system to wastegate spring pressure in the instance of overboost conditions, potentially averting catastrophic damage to your engine.
Pro Control Output
Using your boost measurements, the AutoMeter Boost Controller can automatically trigger external devices such as water/methanol injection, intercooler sprayer, or nitrous solenoids at a given boost pressure level, either on the high or low end of the scale.
Pro Control Input
Not only will the AutoMeter Boost Controller control external devices, it can also be controlled by external devices. Any ground signal sent to the Pro Control input will immediately back boost levels down to wastegate spring pressure.
Highly versatile, boost pressure can be read in inHG/PSI, cmHG/BAR or kPa. Real time barometric compensation can also be turned on of off to account for changes in altitude and environmental conditions.
Data Logger Output
It has traditionally been a huge challenge to log both vacuum and boost. Our revolutionary approach to measurement allows for simple, configurable scale logging of both in either PSIA (absolute) or PSIG (gauge display)
Tach/Speed Signal Diagnostic
As both signals are critical to extracting the most from your Boost Controller, both signals feature real time on board diagnostics to verify the presence of proper signals. Taking it one step further, if the signal is interrupted during operation, the gauge will provide a warning.
A Comprehensive Package
Everything from the gauge to the wiring harness and sensor to the electronic boost control solenoid is included in the package. There are no additional pieces necessary to purchase to install and take advantage of every function with most applications.
- User programmable high/low boost, boost by gear, and boost by RPM.
- EZ™ On-Controller Programming - No Need for External Modules
- Exclusive Progressive Overboost Warning System and Peak Recall
- Patented Pro-Control™ Input Allows External Devices to Trigger Safety Mode and Prevent Engine Damage. Patented Pro-Control™ Output Enables Automatic Control of Other Power Systems - Nitrous, Water/Methanol Injection
- Configurable Data Logger Output for Easy ECU or Data Logger Integration.
- Ideal for Single or Twin Turbo Turbocharged Applications. Not For Diesel Applications or Wastegate-less Setups
- Display readings in PSI, kPa, or BAR
- Includes 6ft. Wire harness, MAP sensor, Boost Control Valve
- Programmable high boost warning and shut down modes.
- Peak Boost Recall.
- 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
Looking for options for a snowmobile. This will work perfectly for what I need, my only concern is how waterproof the set up is... Is there a gauge/screen available that is waterproof that can operate this system?
What happens if you go over 30 PSI? Does it just dump the boost?
