In stock


Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

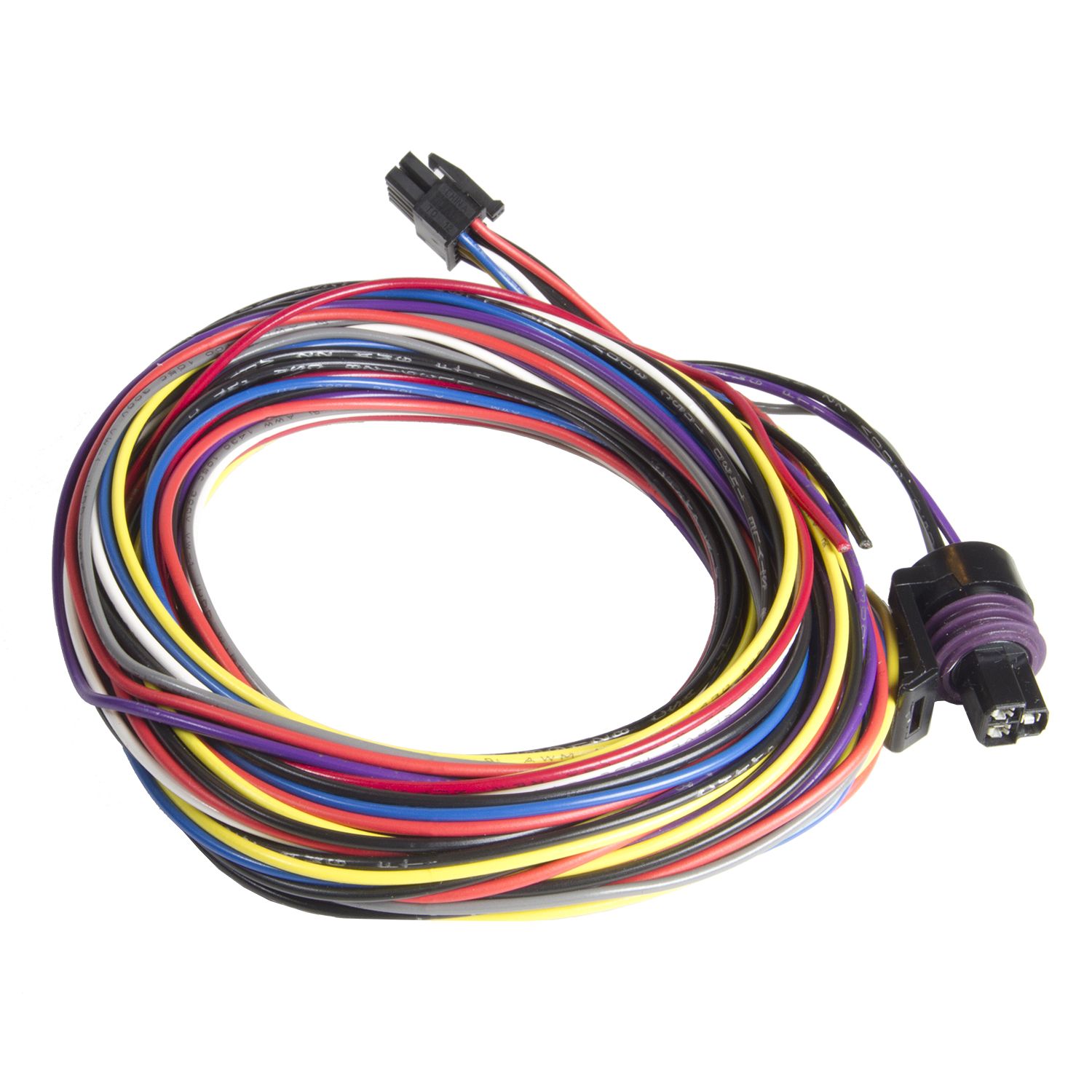

Replacement wiring harness for Elite pressure only gauges. Not for use with boost/vacuum gauges. Replacement wiring harness for Elite pressure only gauges. Not for use with boost/vacuum gauges.
Feature Points
  • Direct replacement harness for Elite series Pressure gauges
  • 10 pin connector to gauge
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 7.32ms
  • bvseo-msg: HTTP status code of 404 was returned;


overall height of 100 psi fuel pressure transducer and wire harness connector attached. Need numbers, space over engine limited.

Asked by: JOHN H
The overall length with the harness connected is 2-5/8 inch. With the wires out of the connector bending at 90 degrees, you'll need an additional 1/4 inch there.
Answered by: Matt from AutoMeter
Date published: 2022-01-25

Good day, I am looking for a replacement for just the little rubber/silicon seal on the end that hooks to the sending unit. It is purple and has three bands. Is there any other way to get that seal besides buying a whole new harness? Cheers, Taylor

Asked by: NavyDaytona
Thank you for contacting us. Please contact [email protected] and put in your request and address, we can send one out to you.
Answered by: Sarah from AutoMeter
Date published: 2021-10-20

Will this work with gauge 2005-7563

Asked by: Bstance
Thank you for your question. For P/N: 7563 you will need P/N: 5227.
Answered by: Steve from AutoMeter
Date published: 2020-03-03

Will this harness work with my autometer pressure sensor 4590-0027-12 0-30 psi?

Asked by: Emil T
Thank you for contacting us. The sender end of the 5275 is compatible with the sender you have. This harness is designed specifically for our Elite Series Pressure Gauge. A slightly stripped down harness for our other style gauges that would use the same connector as your sender is model 5227:
Answered by: Matt from AutoMeter
Date published: 2020-09-15

Can I hook a auto meter fuel pressure sender up to an arm gauge if I had the wiring harness for both? If so can I get a wire diagram for the harness I purchase?

Asked by: Tim916
Hi Tim, thank you for connecting with us. You can see the harness diagram in the instructions for the Elite gauges here: We can provide specs on our senders, but wouldn't know for sure if that would work on a gauge other than AutoMeter. If you'd like specs on a particular sender or have additional questions, give us a ring at 866.248.6356, hit the Chat link at the top of the page or you can email us here:
Answered by: Matt from AutoMeter
Date published: 2018-02-02
