Product # P13125

  • Ships in 2 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns

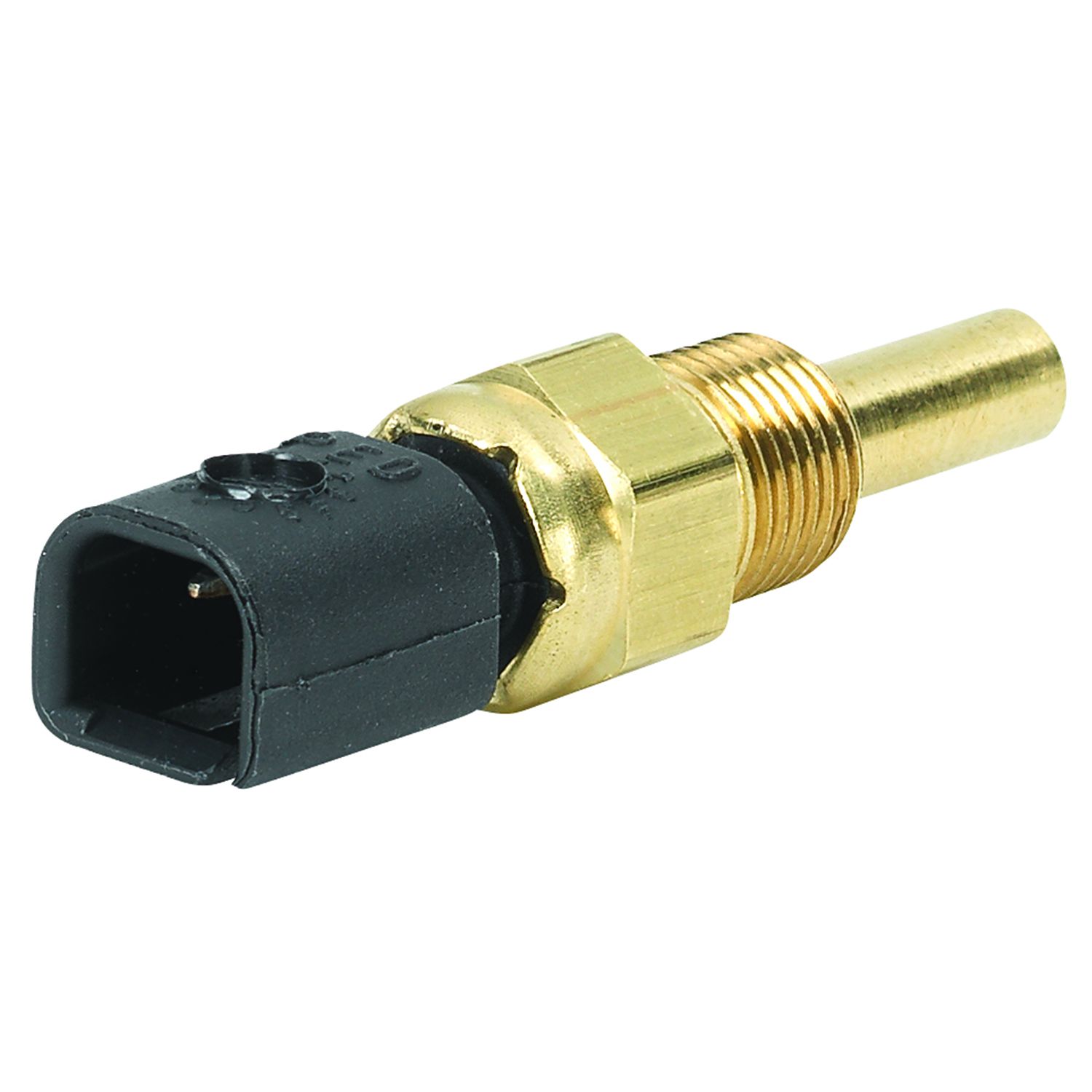

Replacement 1/8" NPT temperature sensor for Spek-Pro temperature gauges (oil, water, differential, and transmission).

Feature Points

  • Includes 1/8" NPT sending unit.
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 51ms
  • bvseo-msg: HTTP status code of 404 was returned;

We have your 5/8 heater hose adaptor (Part #2280) with a threaded port for a temp sensor. What temp sensor fits the adaptor? We need a sensor to gauge and, if necessary, a pigtail to enable us to fit the sensor to our 1994 Jeep Wrangler with a 2.5 engine.

Asked by: MikeESC210
Any of our electronic gauges will work with that heater hose adapter. So this sensor will work or P/N: 2258/2259.
Answered by: Steve from AutoMeter
Date published: 2020-05-20

I bought a 5794 temperature gauge, later ordered the 2nd sensor. I received a 2252 sensor installed it and inserted the end of the gauge cable. Problem, when inserting it, it clicked. How do I remove the cable to string the cable wires differently?

Asked by: Fred45
Thank you for your question. You will need to lift up on the tab in order to remove the sensor which can be a little difficult. For further assistance please call our tech line at 866-248-6357.
Answered by: Steve from AutoMeter
Date published: 2020-01-13

What type of connector is this?

Asked by: EE79
Thank you for your question. The fitting on the end of this sensor is 1/8" NPT. The connector on the end is made to plug directly into our wiring harness for our Full Sweep Electric Temp. gauges. IF you have further questions regarding the sensor or the gauges it work with please contact our support team at 866.248.6357 and they will be happy to assist you.
Answered by: Zach from AutoMeter
Date published: 2019-12-11

The temperature sensor will not fit the extender adapter I got. Do you have one to fit? It’s going on a 2003 Dodge diesel. Gauge is a 4357.

Asked by: Poppad357
Thank you so much for contacting us. For your 2003 Dodge, you'll want to use this sender, which is compatible with your gauge and will screw right into the passenger side of the trans case without the need for any adapters: https://www.autometer.com/shallow-depth-electric-temperature-sender-250-300-and-340-deg.html Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-05-14

What type of thermocouple is this sensor? K?

Asked by: Sandbagger1
Thank you for the question. This is actually not a type K thermocouple, but a thermistor. Basically a resistor that changes resistance as temperature changes. Our pyrometer probes, like models P12709, 5249, and 5244, all all type K thermocouples.
Answered by: Matt from AutoMeter
Date published: 2018-04-02

Can you provide any more documentation about this product? Such as pinout, wiring guide, hook up guide, etc.? Looking to use this with a microcontroller and I am in need of more information before using this part.

Asked by: Ryan
Hi Ryan, thank you so much for contacting us. There are two pins on this particular sending unit. The one closest to the locking slot (they are not otherwise identified) is the signal output wire, and the other one is ground. If you scroll down about 1/3 of the way on this link, you can see the resistance specifications: http://www.autometer.com/sensor_specs Hope this helps!
Answered by: Joseph Mills
Date published: 2019-11-07
