Product
1803

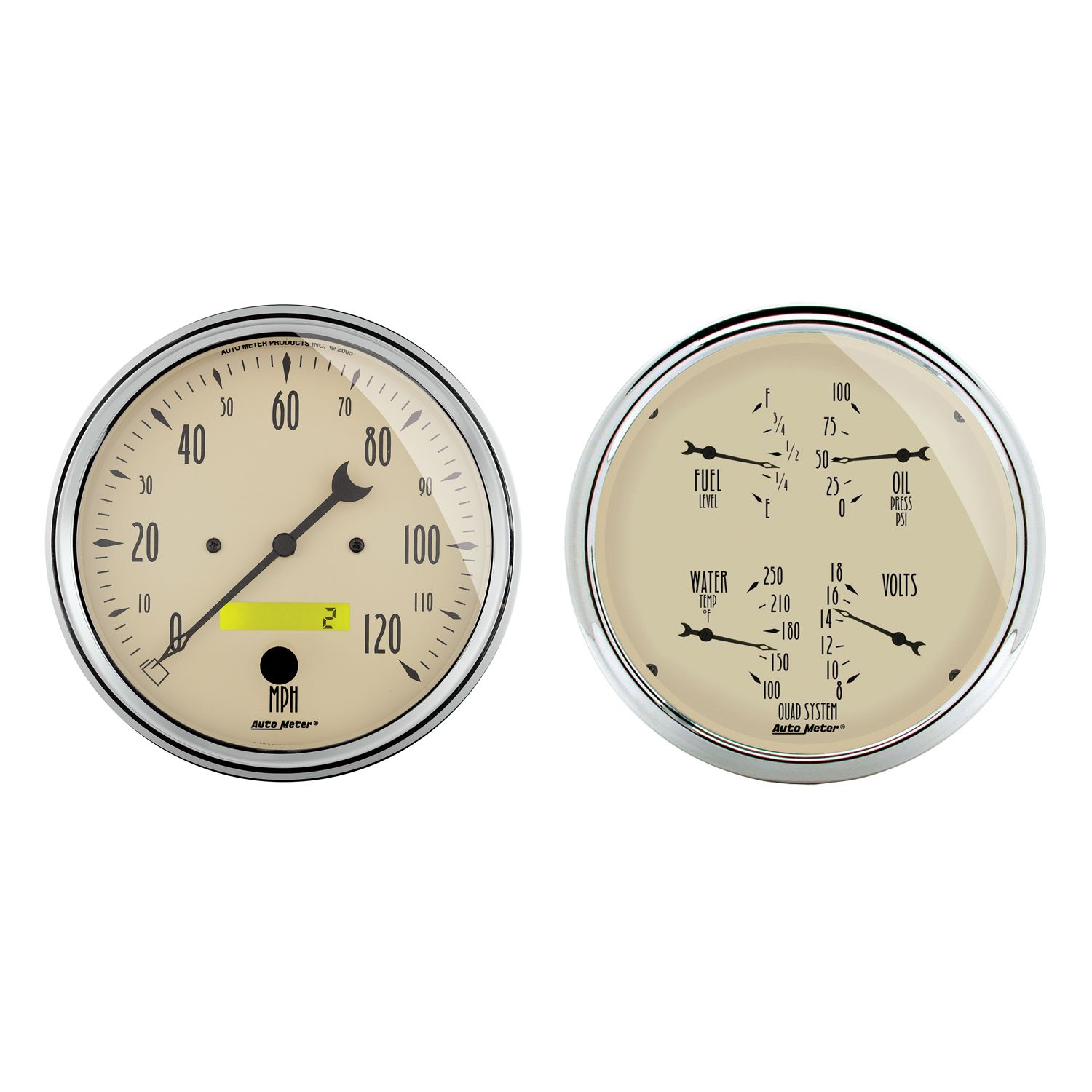

2 PC. GAUGE KIT, 5" QUAD & SPEEDO, ELECTRIC, 240-33 Ω, ANTIQUE BEIGE

$549.54
Shipping in 2-4 business days
Free Shipping over $99
Hassle Free Returns

Quick Specs

DESCRIPTION:

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD), sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
  • Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
  • 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
  • Domed Lens
Ships With
  • Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - 5293 VSS Sensor
  • 3/8" NPT and 1/2" NPT adapter fittings
  • Brackets Included
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

REVIEWS:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 47.59ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

QUESTIONS:

does this set have turn and high beam indicator in them ?

Asked by: wause
This set does not have any indicators on them.
Answered by: Thomas From AutoMeter
Date published: 2022-04-11

I really like the looks of these gauges, do you offer a version with an integral tach? Like item #1820 "2 PC. GAUGE KIT, 3-3/8" QUAD & TACH/SPEEDO, 240-33 Ω, ANTIQUE BEIGE".

Asked by: SoccerGuy3
Thank you for your question. The only version we offer with the Speedo/Tach combo in Antique Beige would be model #1820 if you were looking for a kit or 1881 if you were looking for an individual gauge.
Answered by: Natalia from AutoMeter
Date published: 2021-01-08

Hello... I have 2 questions 1st, I have a 47 chevy pick up and the id measurements for the gauge holes are showing 5 1/8". Will your set fit this or is there an adaptor made? 2nd, is the set, preferably the speedo electric?

Asked by: Trucker 47
Hi, You will need this 7039 adapter kit for your 1947 Chevy truck. https://www.autometer.com/direct-fit-dash-insert-chevy-truck-47-53-2-gauge-billet.html Th entire gauge kit is electric. Thanks, Jim
Answered by: Jim from AutoMeter
Date published: 2020-06-05

Can these come in KPH?

Asked by: Darrin
Hi Darrin, Unfortunately this speedometer is available in MPH only. Thanks, Jim
Answered by: Jim from AutoMeter
Date published: 2020-04-16

I have the two peice set of gauges the quad one is speed o and the other is a water, oil,temp,amps they were in a 1951 chevy truck I bought .I need to celebrate the gauges but I do not have any instructions. Is a way to get instructions

Asked by: Tony j
Thank you for your question. The instructions for this are linked below: https://www.autometer.com/media/manual/2650-1266.pdf https://www.autometer.com/media/manual/2650-1178.pdf https://www.autometer.com/media/manual/2650-1192.pdf
Answered by: Steve from AutoMeter
Date published: 2020-05-27

I would like to know what size opening this gauge will fit into.

Asked by: 53BSpecial
Thank you for your question. The hole size needed is 4-5/8" for both units.
Answered by: Steve from AutoMeter
Date published: 2020-01-17

I am working on a 49 dodge truck. It has two 5 inch holes in the dash that I would like to put your gages in. My concern is the mounting. I have looked at your site several times but find the dimensional information on mounting. do you have a catalog

Asked by: higgy
Thank you for your question. Please use the link provided for the gauge dimensions https://www.autometer.com/media/dimensions2014.pdf. For further assistance please call our tech line at 866-248-6347.
Answered by: Steve from AutoMeter
Date published: 2020-01-10

Can I get the quad gauge set (antique beige 3 3/8") with a Ford Compatable electric speedometer (I am using a 5R55E transmission) or a GPS Speedometer?

Asked by: LARRY77
Thank you for your question. Unfortunately we do not offer a kit with the 5292 speed sensor. You will need to purchase P/N: 5292 or go with our GPS module P/N: 5289.
Answered by: Steve from AutoMeter
Date published: 2019-11-27
