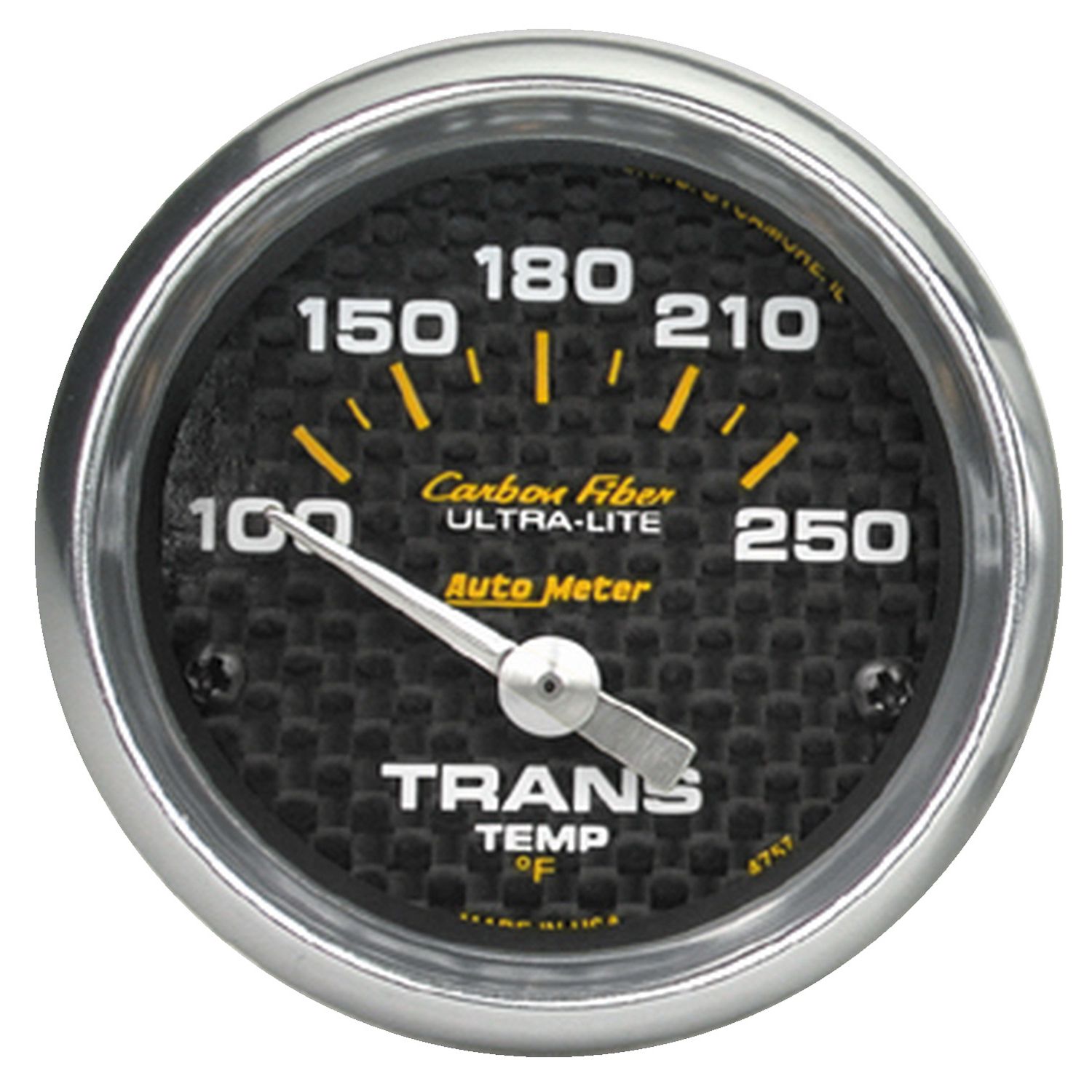

2-1/16" TRANSMISSION TEMPERATURE, 100-250 °F, AIR-CORE, CARBON FIBER

$86.29

Shipping in 2-4 business days

Free Shipping over $99

Hassle Free Returns

Quick Specs

Size:2-1/16" (52.4mm)
Type:Air-Core
Range:100-250 °F
Lighting:Incandescent
Instructions: Download PDF Download PDF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Additional Notes

Reviews

Questions

DESCRIPTION:

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8” NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.

Feature Points

Traditional incandescent lighting illuminates around the perimeter of the dial
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

Ships With

2258
3/8" NPT and 1/2" NPT adapter fittings
2230

REVIEWS:

QUESTIONS:

Will this gauge stand up to the marine environment and is it available with custom rim colors to match the Carbon Fiber Marine set? If it will work on my boat, can the needle be made to match the C F Marine gauges? Thank you!!

Asked by: Skip L

Thank you for contacting us. No, this model is not designed for Marine use. It’s not sealed and does not use UV resistant paint like our Marine Series.

Answered by: Sarah from AutoMeter

Date published: 2021-08-24
