Quick Specs

  • Size:2-1/16" (52.4mm)
  • Type:Air-Core
  • Range:0-100 PSI
  • Lighting:Incandescent
  • Instructions: Download PDF

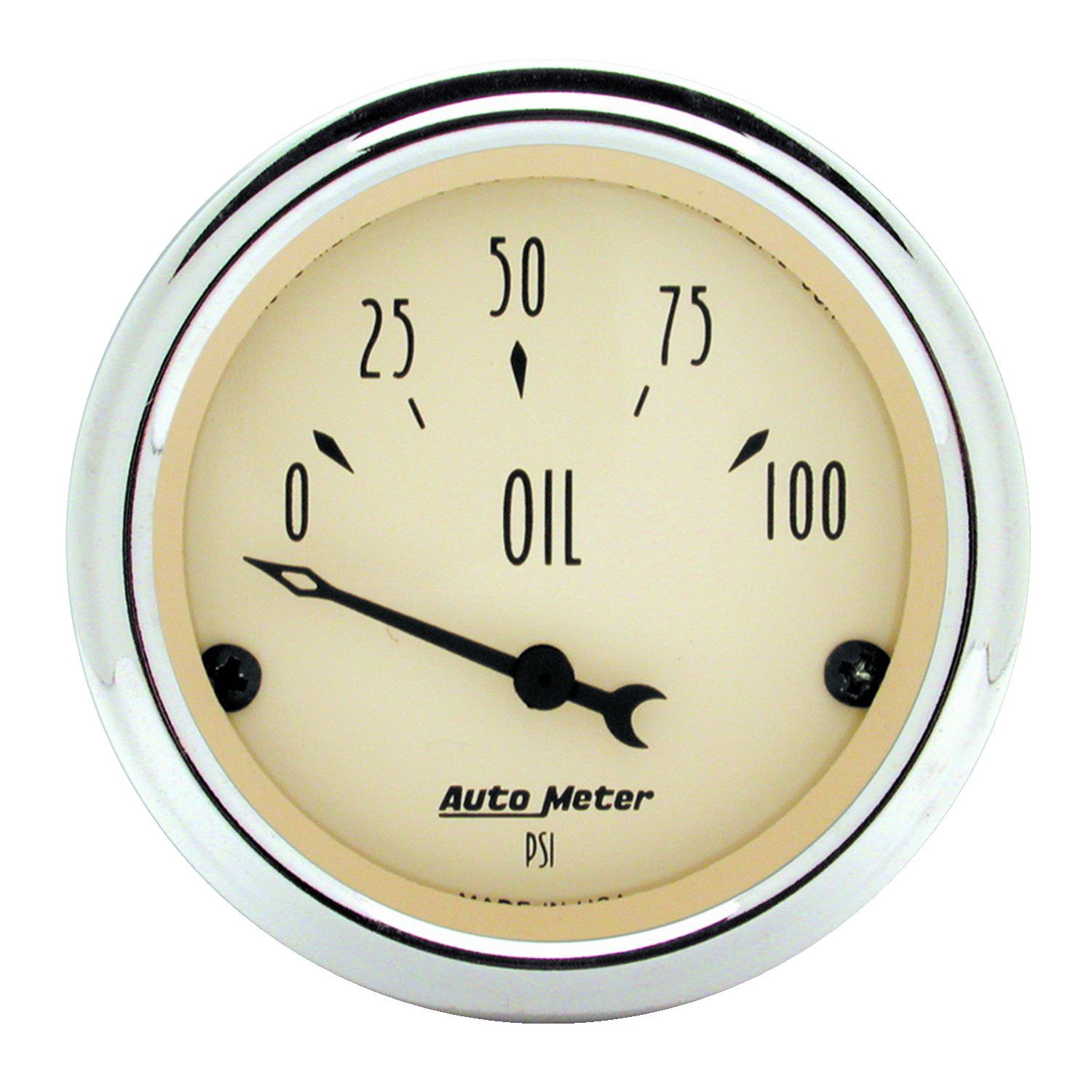

Quite possibly the most critical vital to monitor, engine oil pressure can mean the difference between making it home and needing to replace the engine. The patented air core meter movement provides the durability and accuracy that you expect from the AutoMeter name. Throughout 57 years of building the world’s best competition instruments, this meter movement has been the engine powering the machine that sets the benchmark. A single wire, 1/8” NPT oil pressure sender is included.
Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Domed Lens
Ships With
  • 2242
  • 3/8" NPT and 1/2" NPT adapter fittings
  • 2230
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 61.51ms
  • bvseo-msg: HTTP status code of 404 was returned;


What is the sender part# for this gage?

Asked by: Holleyman99
The sending unit for this gauge would be 2242.
Answered by: Thomas From AutoMeter
Date published: 2022-06-22

Can the backing brackets be purchased separately?

Asked by: Bad Boy
Thank you for your inquiry. Yes, the 1827 uses the 2230 bracket -
Answered by: Sarah from AutoMeter
Date published: 2021-07-20

What is the overall diameter (to outside of trim ring) of a 2-1/16" gauge? Thank you, Taddeo53

Asked by: Taddeo53
Thank you for your question. The outside diameter is 2-1/4".
Answered by: Natalia from AutoMeter
Date published: 2021-03-15

I meant OHMS range. Spell correct???? What is the OHMS range?

Asked by: TommyD
Thank you for your question. Here is a link to the sensor specifications for our sensors including pressure sensors, which will match the readings/range for our oil pressure gauges:
Answered by: Zach from AutoMeter
Date published: 2018-10-30

Do your oil gauges have a standard oil range? What is it?

Asked by: TommyD
Thank you for your question. We do not have a standard for oil pressure range. Most of our gauges go to 100psi, our Spek Pro line goes to 125psi.
Answered by: Zach from AutoMeter
Date published: 2018-10-29
