2-1/16" AMP CURRENT, 0-250 AMPS, COBALT

Special Price $187.34 was $208.16
Shipping in 2 business days
Free Shipping over $99
Hassle Free Returns

Description:

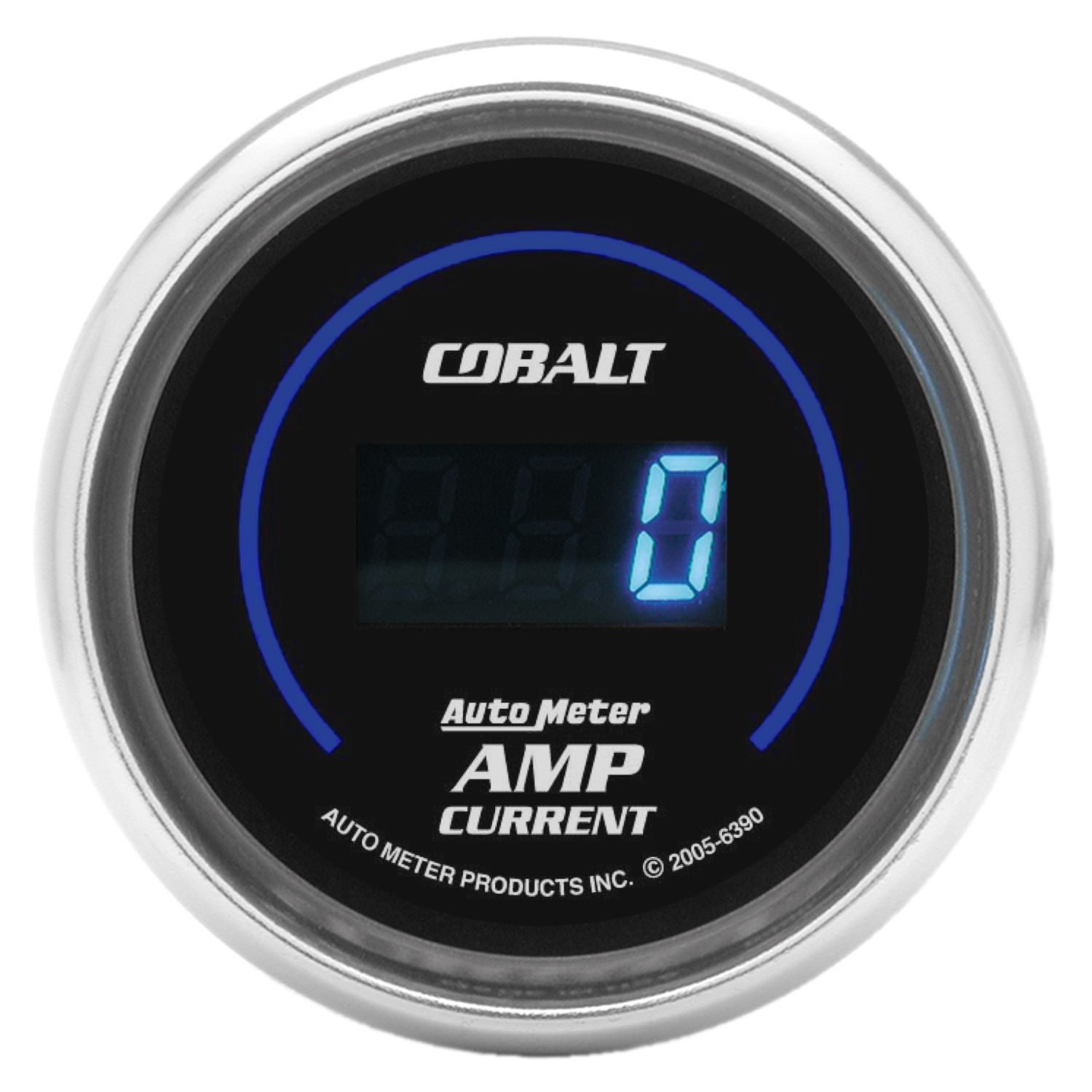

Designed for high output stereo systems but just as at home on any high current electrical consumer in your vehicle, the AutoMeter Digital Amp Current gauge precisely monitors power along a line using an inductive pickup for safe, accurate measurement of the demand being placed on your electrical system. Rated for up to 250 amps, this gauge is perfect for even the most extreme applications.

Quick Specs


Designed for high output stereo systems but just as at home on any high current electrical consumer in your vehicle, the AutoMeter Digital Amp Current gauge precisely monitors power along a line using an inductive pickup for safe, accurate measurement of the demand being placed on your electrical system. Rated for up to 250 amps, this gauge is perfect for even the most extreme applications.
Feature Points
Ships With
  • Wire Harness
  • 2230
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

Videos:

REVIEWS:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 68.23ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

QUESTIONS:

I recently bought this ammeter, but it is too small to fit in the vent. Do you sell a cup that will hold it in the vent?

Asked by: oslintw
Hi, We do have a cup for this gauge, see below. But it obviously has to be larger than the gauge in order for the gauge to fit into it. See attached: https://www.autometer.com/2-mounting-cup-black.html Thanks, Jim
Answered by: Jim from AutoMeter
Date published: 2020-05-01

I have recently replaced several batteries and alternators (failed without warning). I have just installed a new high output alternator and will be installing another new battery. Can this ammeter be used to monitor my car's overall charging system?

Asked by: oslintw
Hi, Our 6390 Will monitor the output of your alternator, or any DC current up to 250 amps. You will simply route the alternator wire through the inductive probe included with this gauge. Thanks, Jim
Answered by: Jim from AutoMeter
Date published: 2020-05-04

How long is the transducer cable for the digital amp meter?

Asked by: jay_B
Thank you for your inquiry. The probe wire is 20 feet long.
Answered by: Jim from AutoMeter
Date published: 2020-02-18

Will 1/0 wire fit the inductive pickup? or what is the maximum wire ga. to be used with this?

Asked by: Walley
Thank you for your inquiry. The inductive pickup will accept 1 gauge wire. It can accommodate wire up to 5/8" in diameter.
Answered by: Jim from AutoMeter
Date published: 2020-05-04

What is the max ID of the induction ring? Is it two piece or one price?

Asked by: NH John
Thank you for your question. It is one single unit, with a square opening that is 0.59" x 0.79".
Answered by: Zach from AutoMeter
Date published: 2019-05-17

Too many old style heavy gauge wire ammeters. When the Cobalt inductive pickup is properly clamped over a wire in the circuit subject to + or - current flow, does the Cobalt amp gauge display the + or - in addition to the digital value? How displayed?

Asked by: Anonymous
Thank you for your question. No, it will not display the +/- in addition to the displayed digital value.
Answered by: Zach from AutoMeter
Date published: 2019-04-18

This amp gauge can handle 250 amps. So, could it be used on the positive battery wire to measure the total current in the entire electrical system in a vehicle? Or perhaps on the alternator charging wire to know the current draw on the alternator?

Asked by: AdamL
Thank you for your question. Yes, you could. As long as the lead for you are measuring can fit through the inductive pickup, it will work. You could certainly use it at the battery or alternator as you wanted to, as long as you can fit the wires in the inductive pickup.
Answered by: Zach from AutoMeter
Date published: 2020-05-20

is there a way i can calibrate the housing the wire travels thru? im working with 8 AWG wire and im getting about a 3amp difference from my calibrated tester. i see 2 dials on the unit and i figure those can calibrate or alter the calibration.

Asked by: Mike florida man
Hi Mike, thank you for reaching out to us. The transducer is calibrated and set at the factory and we do not recommend attempting any adjustments.
Answered by: Matt from AutoMeter
Date published: 2018-11-28
