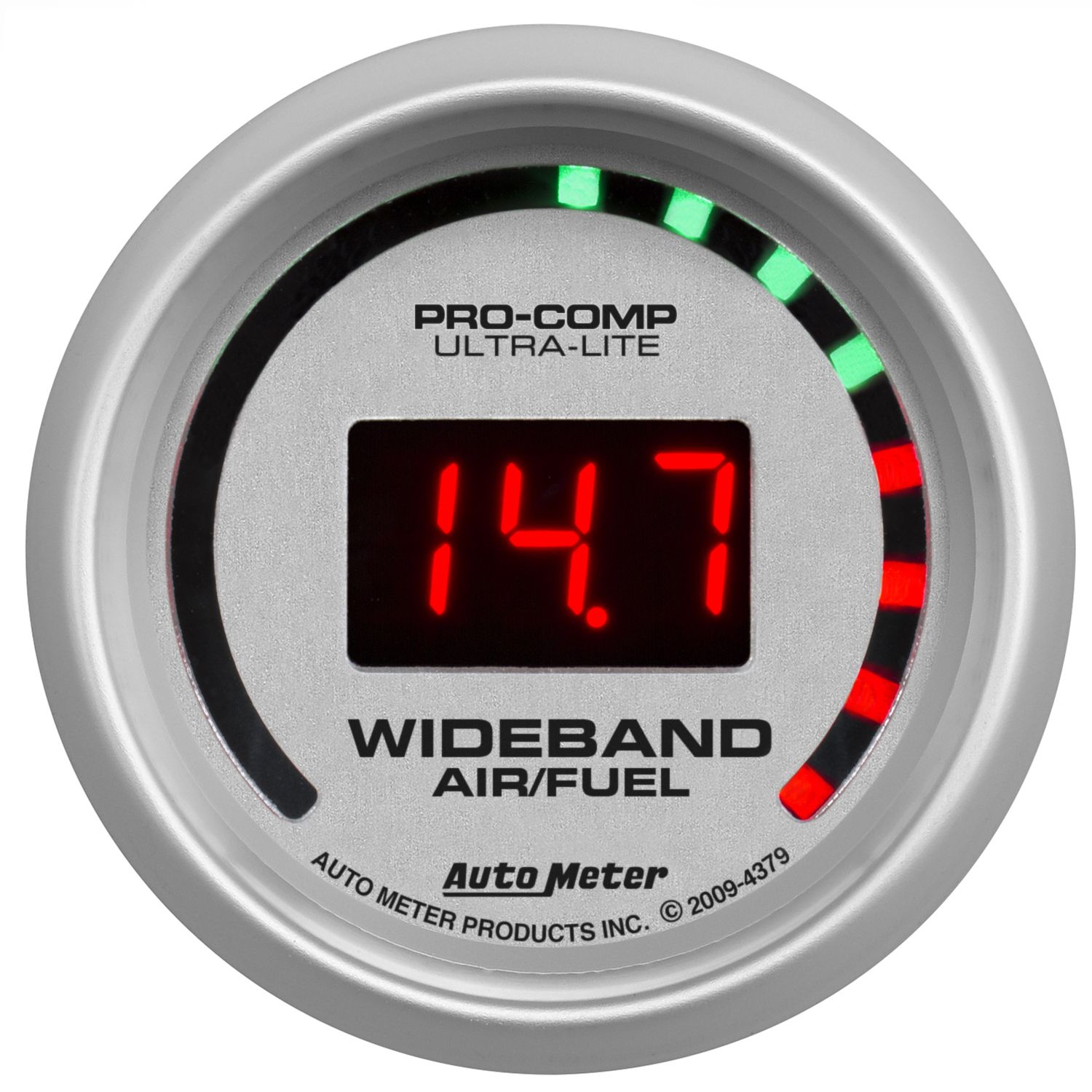

2-1/16" WIDEBAND STREET AIR/FUEL RATIO, 10:1-17:1 AFR, ULTRA-LITE
Shipping in 5 business days
Free Shipping over $99
Hassle Free Returns
- Size:2-1/16" (52.4mm)
- Range:10:1-17:1 AFR
- Lighting:Digital LED
- Instructions: Download PDF
Taking the core features from AutoMeter’s Pro Wideband, the Street Wideband provides the most important functions necessary to make sure you’re extracting the most power possible, safely. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.
- Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
- 0-4v data output feed for ECU, data acquisition unit, or Laptop tuning
- Suitable for use with gasoline powered engines
- Digital segment display and LED radial bar graph display
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- M18X1.5 Fitting and Plug
Rated 5 out of 5 by Mr Jerry from looks very nice, works well I bought the a/f gauge a month ago , and it looks and works great. It was very easy install , good instructions. I am very happy, and it compliments my factory Mazdaspeed Miata gauges well. I mounted it in my glove box with an Autometer boost gauge , and will be adding water temp, and oil pressure. It looks great when I open the glove box at night. It makes a nice addition to my car. Thanks
Date published: 2019-05-02
Rated 5 out of 5 by bauwau from Auto Meter gauges everytime Wanted a AFR gauge to use for portable use between 3 motorcyles to dial in 05 Multistrada, 18 YZ450f supermoto race bike with different elevation tracks and a 17 DR650 with a good ole carby. Had to get bungs tig'd on each bike, battery SAE connections on each to hook up to fused and switched porta dash and viola. Gauge works great, no issues, does react fast to throttle/load changes and was able to get fueling squared away. There are cheaper brands out there, but I just trust Autometer to perform.
Date published: 2023-03-13
Rated 5 out of 5 by Tyler819 from Great product Very cool. I love how accurate it is. Very easy install
Date published: 2019-03-12
Rated 2 out of 5 by Bobby1 from 17.0 and idle and 10.0 at WOT Idk if this thing needs to be calibrated, but it does not read right
Date published: 2021-12-31
I have white-faced S&W gauges in 2 1/16" dia. . How high isthis gauge above the face of my dashboard?
All dimensions can be found in the web address provide below. https://www.autometer.com/pub/media/manual/dimensions2014.pdf For further assistance please give us a call at 866-248-6356.
Date published: 2023-01-19
what is the mounting depth of this gauge? i am building a custom console with gauge spots and need to know how deep to make the opening for the gauge
This gauge requires a 2-5/8" clearance for proper install.
Date published: 2022-06-23
I purchased a vehicle with this AFR I need to get a replacement cable but do not see it listed how can I go about getting one.
J, You would need P/N: 5298 for a new harness. As for the sensor you would need P/N: 2243.
Date published: 2022-04-19
i wrote a question and you keep sending me emails that you responded and it is not there
We did see that the question that we answered for you did have some issues getting back to you. One of our Tech Agents has reached out to you via email. If you would, check your inbox or spam to find that email.
Date published: 2023-05-12
what O2 sensor does it come with and can we use our own O2 bosch 17018
The only difference between the 4.2 sensor that comes with this gauge and the 17018 that you have would be the wire length.
Date published: 2021-12-23
I am running leaded 110 octane race fuel. Your spec sheet says leaded fuel can damage the O2 sensor. Do you offer a different O2 sensor that I can use with leaded fuel so I can use this wide band air/fuel gauge?
We do not offer a gauge/O2 sensor that is specifically designed for leaded fuel. You can run our gauge and sensor, but it will dramatically reduce the sensor life.
Date published: 2021-12-06
Why is this referred to as a "street" gauge in the description?
Thank you for your question. Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. The Pro version is compatible with almost all fuel types.
Date published: 2021-03-18
do you only need to read one side can you do both at the same time
Thank you for your question. The Wideband only has one sensor to measure AFR. This can and only will measure your air to fuel ratio which in return will display a value based on the data.
Date published: 2020-12-15
