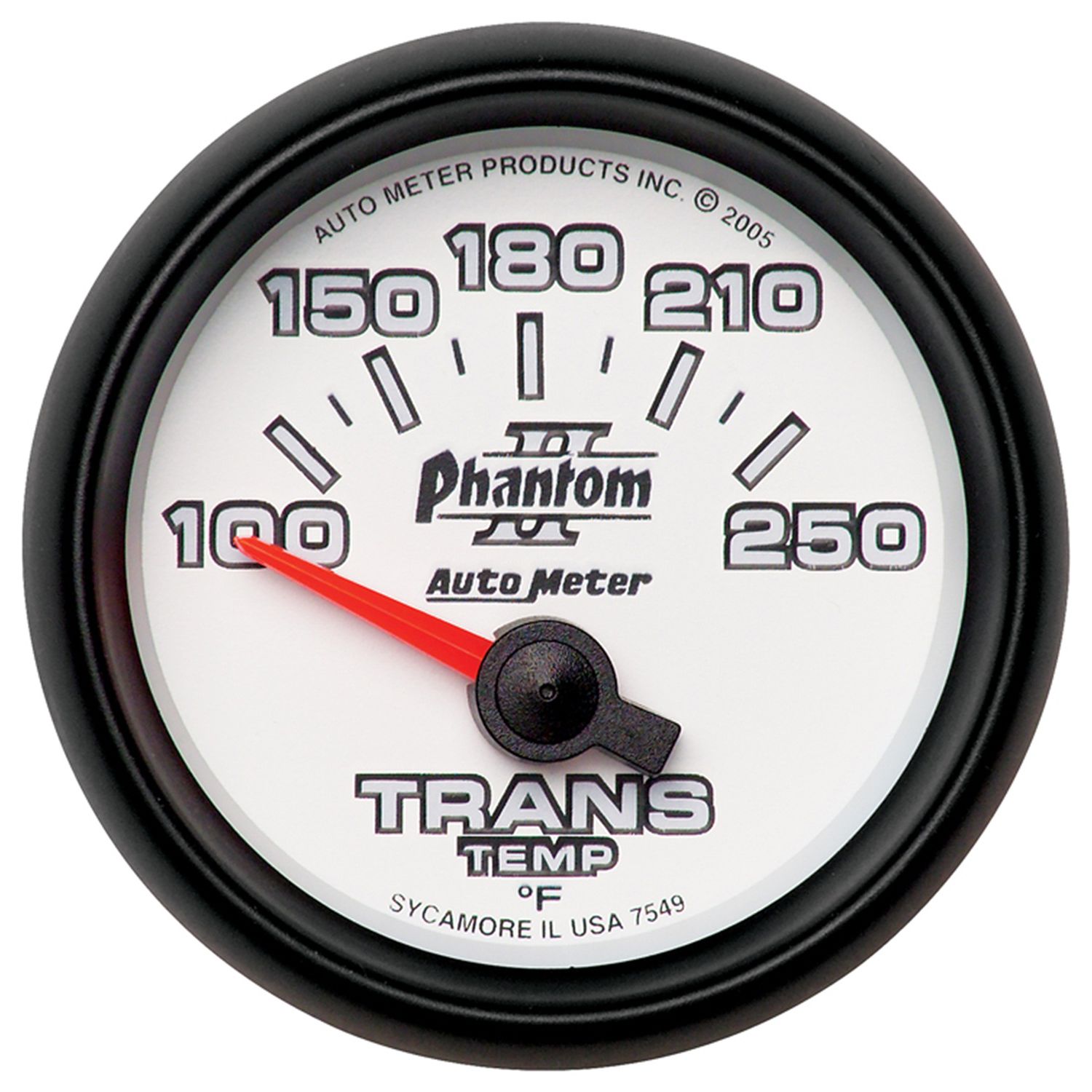

2-1/16" TRANSMISSION TEMPERATURE, 100-250 °F, AIR-CORE, PHANTOM II

2-1/16" TRANSMISSION TEMPERATURE, 100-250 °F, AIR-CORE, PHANTOM II

Product # 7549
$87.95

OR
  • 2-1/16" (52.4mm)
  • Air-Core Air-Core
  • 100-250 °F
  • LED
  • Download
  • Ships in 5 Business Days
  • Free Shipping Over $99*
  • Hassle Free Returns
SHARE
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8” NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
ADDITIONAL NOTES

Feature Points

  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
SHIPPED WITH

Sending Units

  • 2258

Adapter/Fitting

  • 3/8" NPT and 1/2" NPT adapter fittings

Mounting Hardware

  • 2230
Reviews
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 51.38ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Questions

I have this Phantom II Trans Temp gauge in my buggy and its that's not working. I ground out the sensor wire & it pegs out so that tells me it needs a new sensor. Right or wrong ? Can you tell me what sensor I need

Asked by: EPTow
Thank you so much for contacting us. While your test does lead me to believe your gauge is fine, I'd double check that your sending unit has a good path to ground. Teflon tape on the threads will keep the sending unit from finding ground and cause the gauge to read low or not at all. Those sending units tend to be pretty bulletproof, but if you do indeed need a new one, you can find the replacement here: https://www.autometer.com/short-sweep-electric-temp-gauge-sender-250-300-and-340-deg.html Hope this helps!
Answered by: Joseph At AutoMeter
Date published: 2018-05-22
