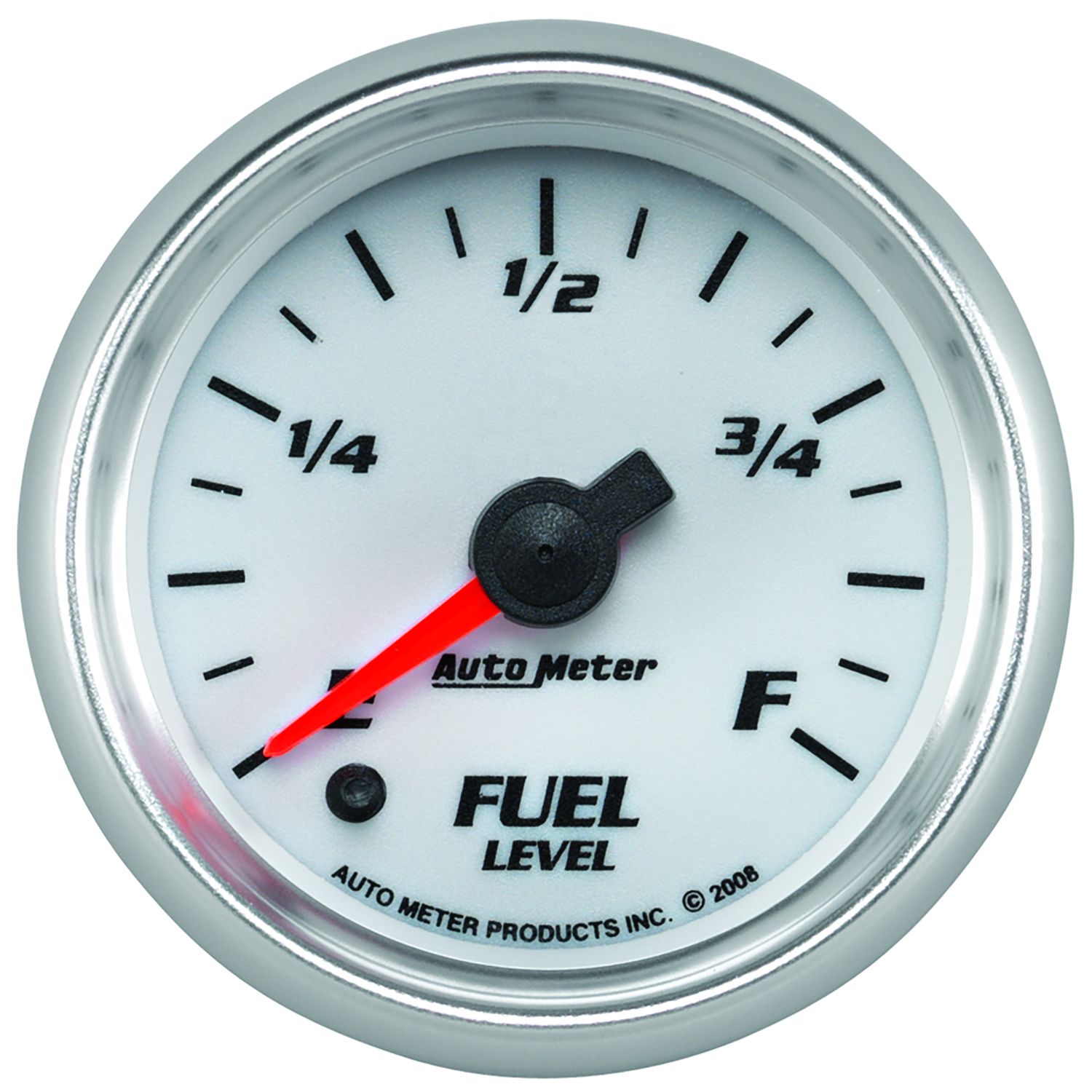

2-1/16" FUEL LEVEL, PROGRAMMABLE 0-280 Ω, STEPPER MOTOR, WHITE/BRIGHT ANODIZED, PRO-CYCLE

$154.95
Shipping in 2 business days
Free Shipping over $99
Hassle Free Returns

Description:

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range.

Quick Specs

  • Size:2-1/16" (52.4mm)
  • Type:Digital Stepper Motor
  • Range:Programmable 0-280 Ω
  • Lightning:LED
  • Instructions: Download PDFDownload PDF

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.

Feature Points
  • Features Hi-Def™ through-the-dial blue LED lighting with LED lit pointer
  • Vibration and water-resistant
  • Adjustable Scale w/ 7 preset ranges for common fuel sender types
  • Programmable anywhere between 0-280 ohms
  • Includes gauge mounting hardware and installation instructions
  • Full sweep precision digital stepper motor meter movement
Ships With
  • YES
California Residents: Prop 65 WARNING prop65 Cancer, Birth Defects and Reproductive Harm www.P65Warnings.ca.gov

Videos:

REVIEWS:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 148.91ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

QUESTIONS:

Do you sell any fuel level guages that could be used on an automotive propane system to show tank level

Asked by: Anonymous
Thank you for your question. We do not.
Answered by: Natalia from AutoMeter
Date published: 2021-02-16

My fuel gage needle comes off the peg about 1/8 of a tank. I had just filled the tank completely full. Can you advise what might be my problem?

Asked by: Magnificent Blue
Thank you for your question. The gauge could not be programmed properly to the sending unit that is currently on the vehicle. I would recommend checking the OHM resistance of the sending unit to see what the proper range is needed for the gauge to operate in.
Answered by: Natalia from AutoMeter
Date published: 2020-12-15

Hello, I would like to know if I can install this kit on a motorcycle, type BMW. She does not have an original gauge or float. Does this kit include a float to install in the tank? Best regards

Asked by: Matthias
Thank you for your question. Yes, you can install this on a motorcycle. It does not come with a sending unit. You can get your own sending unit and program the gauge to match or you can get our 3262 240-33 ohm, sending unit and program the gauge to work with that.
Answered by: Zach from AutoMeter
Date published: 2019-03-28
